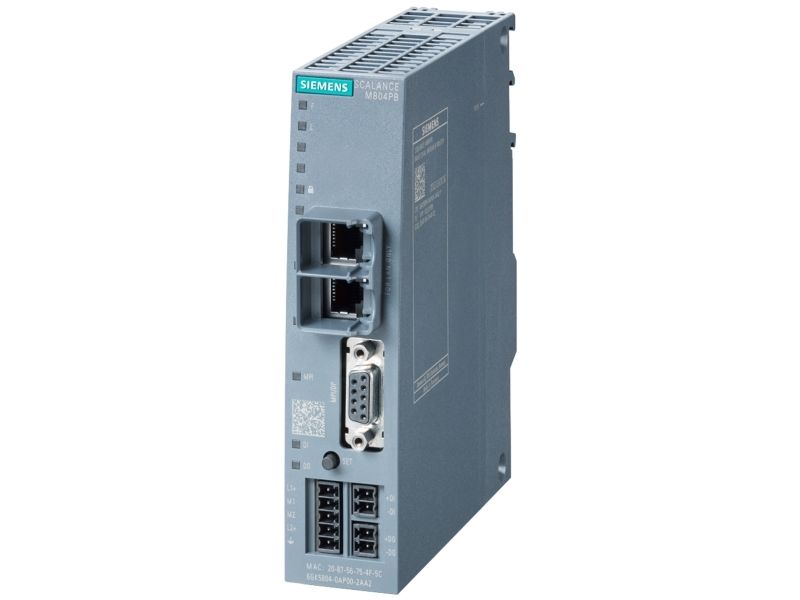

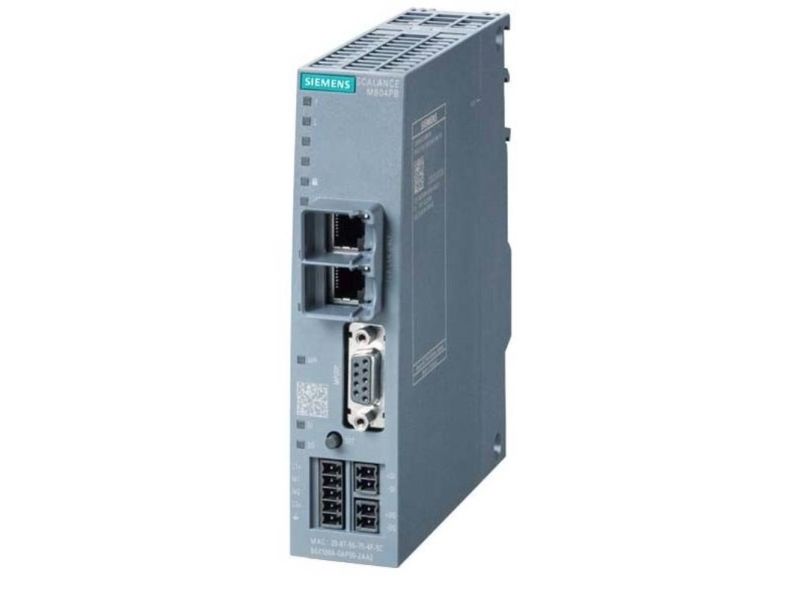

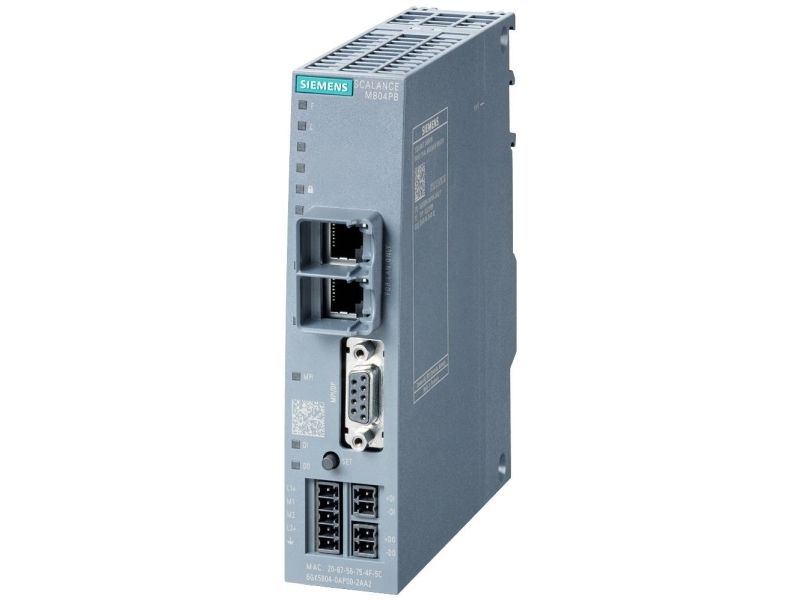

Siemens 6GK5804-0AP00-2AA2, IP20, 166 mm, 45 mm, 179 mm, 350 g, REACH

SCALANCE M804PB; Router for secure remote connection of PROFIBUS / MPI programmable controllers at Ethernet networks by means of VPN and firewall. Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 2-port switch; 1x digital input, 1x digital output. SCALANCENetwork componentsM804PBVPN and firewall, transfer rate 10 Mbps, 100 Mbps, 1x RJ45 and 1x SUB-D (internal network), 1x RJ45 (external network), terminal block, 1x RS 485 interface, IP20 degree of protection.for cost-effective and secure connection of PROFIBUS/MPI systems.Convenient and cost-effective direct connection of existing systems with PROFIBUS / MPI, for secure remote access to remote machines and systems.Rugged plastic enclosure for DIN rail and wall mounting. Protected remote access by means of a firewall (stateful inspection) and VPN connections (IPsec) as an integral component of the Industrial Security concept. Low investment and operating costs for operator control and monitoring of remotely connected substations. Reduction in traveling costs and personnel costs due to remote programming and diagnostics via mobile wireless networks. Improved overview for mechanical integration thanks to standardized module formats with SIMATIC S7-1500 / ET 200MP.Accessories with removable data storage medium C-Plug and Key-Plug, desktop foot for table mounting as well as mounting frames top off the product perfectly.
