Schneider Electric NSYTBS775
Varenr.: [1601626] | Producent: SCHNEIDER ELECTRIC | Model-nr.: NSYTBS775 | EAN: 3606480165207
Fjernlager (5-7 hverdage)
Varen er på fjernlager, leveringstiden er 5-7 hverdage. Mere info
Leveringsmuligheder - Vælges ved checkout
GLS - Pakkeshop
39,00
GLS - Levering til hoveddøren
59,00
Afhentning i vores Pick-up point i Ringsted
19,00
DKK
214,00
ex. moms 171,20
Total inkl. fragt
253,00
Funktionen kræver at man er logget ind. Opret en bruger og brug vores smarte liste system til at holde styr på fremtidige indkøb, faste indkøb eller ønskelister.
Opret bruger
Login
Opret bruger
Login
Send på mail

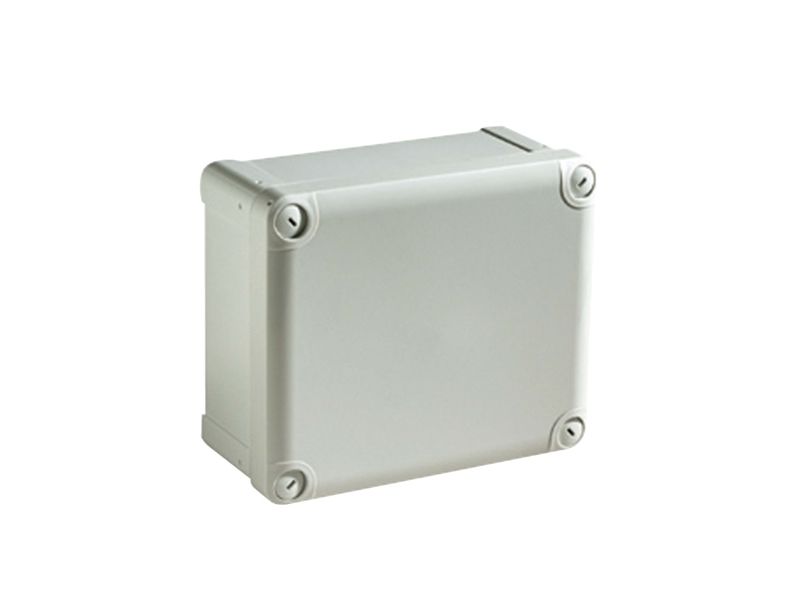

Schneider Electric Thalassa TBS General Purpose ABS Industrial Enclosures.
From Schneider Electric the Thalassa TBS range of ABS general purpose enclosures also known as Industrial Boxes. The Thalassa TBS enclosures provide protection for small components with various applications that need little intervention or maintenance. The enclosures will protect electronic cards in all environments including protection from all dust and liquids including marine environments with IK07 protection.
Enclosure Protection Provided.
Watertight IP66, NEMA 4-4X.
Polyurethane gasket on the enclosure lid / enclosure cover.
Double electrical insulation Type II.
Temperature range -25?° to +60?°C.
Glow wire resistance 650?°C.
Thalassa TBS General Purpose Enclosure Range Benefits.
Rounded design adding increased robustness of the enclosure.
External mechanical resistance to IK07.
2 x Types of enclosure cover available, Opaque and Tinted transparent (from 138 mm x 93 mm).
Low enclosure covers (10 mm and 20 mm), High enclosure covers (40 mm, 60 mm, 80 mm).
Up to 20 different size available from 74 mm x 74 mm to 341 x 291 mm exterior.
Watertight to IP66.
3 x Ways to hang the general purpose enclosure on a support.
Different models work well together.
Various cover depths available.
Enclosure covers are locked by 4 plastic captive screws (course threaded outside the sealed area).
Fixing studs are in the box cover and enclosure body.
Easy to machine if required.
All are Grey to RAL 7035.
Certified to TUV, SEMKO, DEMKO.
Thalassa TBS General Purpose Enclosure Applications.
Protect small components.
Protect Electronic cards (all environments).
Any applications that require dust and liquid protection.
Suitable in marine and heavy sea environments.

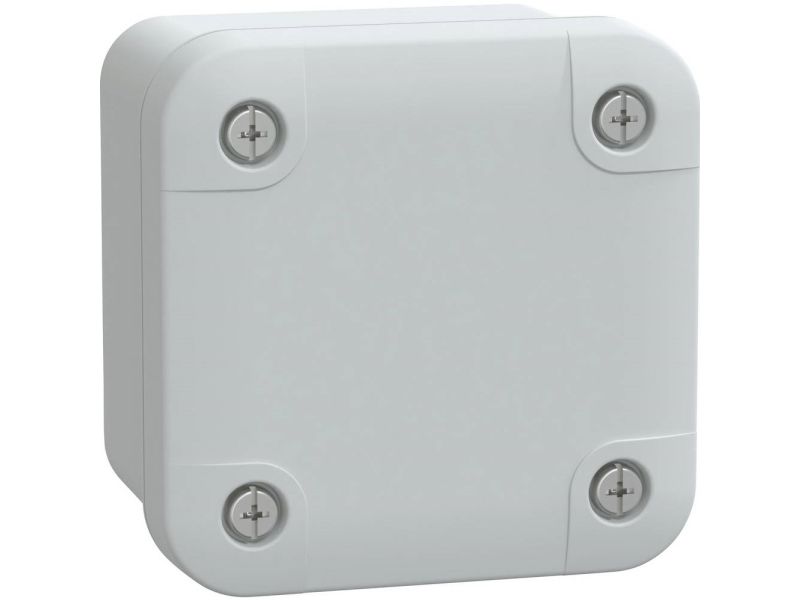

NSYTBS775 ABS Thalassa TBS General Purpose Enclosure.
General purpose, Multi-Purpose.
Industrial box enclosure.
Internal height 65 mm.
Internal Width 65 mm.
Internal depth 47 mm.
Wall mounting.
One-piece moulded ABS (acrylonitrile butadiene-styrene) enclosure.
Low plain cover fixed by metal screws.
Locks with Captive screw flat outside the sealed area.
Cover is removable.
Colour is Grey RAL 7035.
Insulation class II.
IP66 to NEMA 4.4X.
IK07 to IEC 62262.
Fire resistant to 650?°C to IEC 60695-2-11.
What is Included?
1 Enclosure body, I enclosure cover, 4 x Cover screws.
Approvals
T??V
Standards
IEC 62208
