InLine 35396C, USB 3.2 Gen 1 (3.1 Gen 1) Type-B, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, 5000 Mbit/s, Sort, Aluminium, DC

Robust aluminium housing for industrial use:The durable housing provides reliable protection in harsh environments and enables long-term use in professional settings.

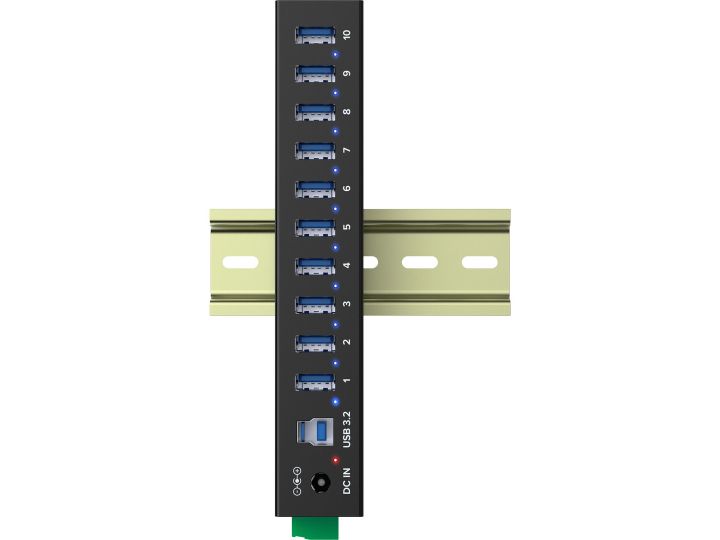

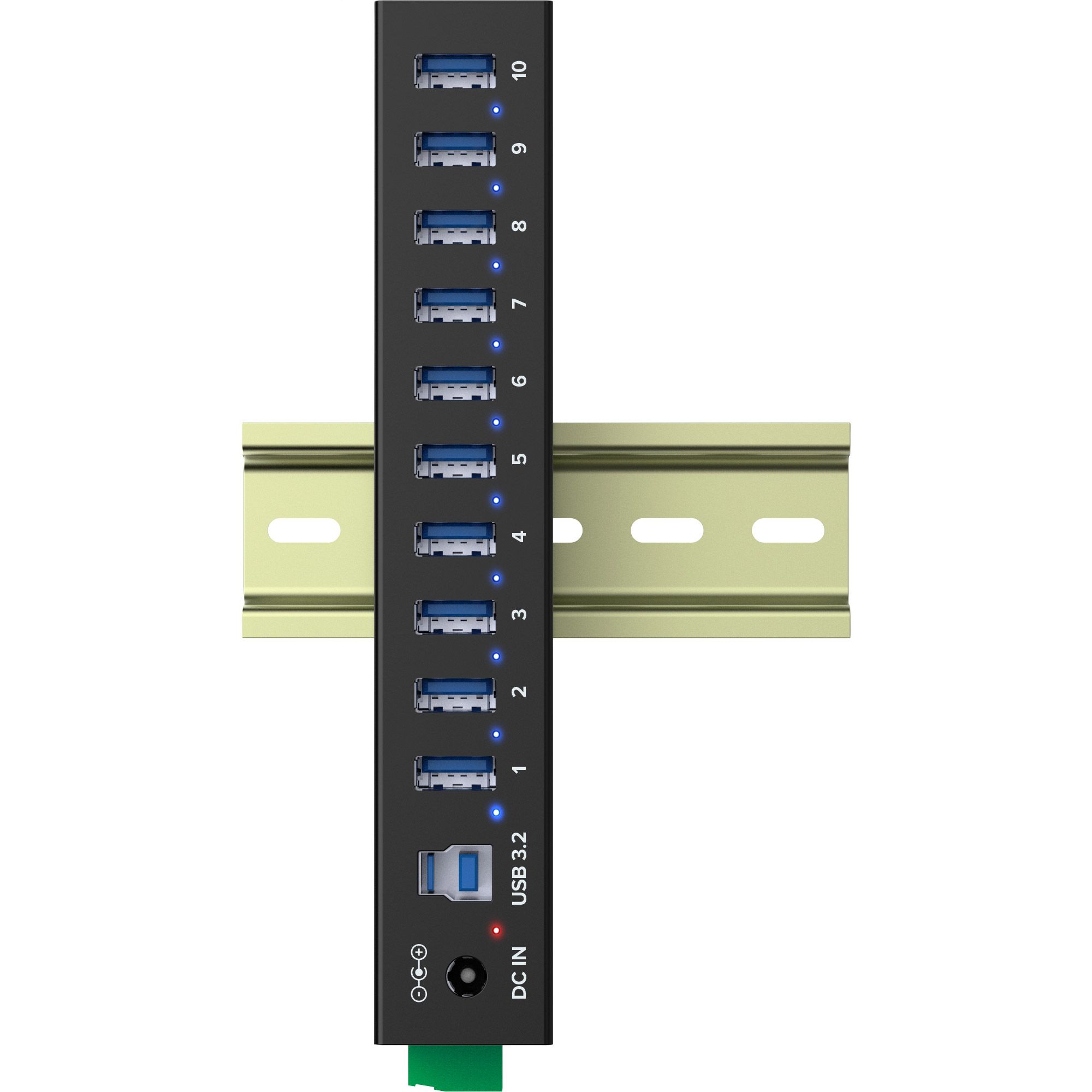

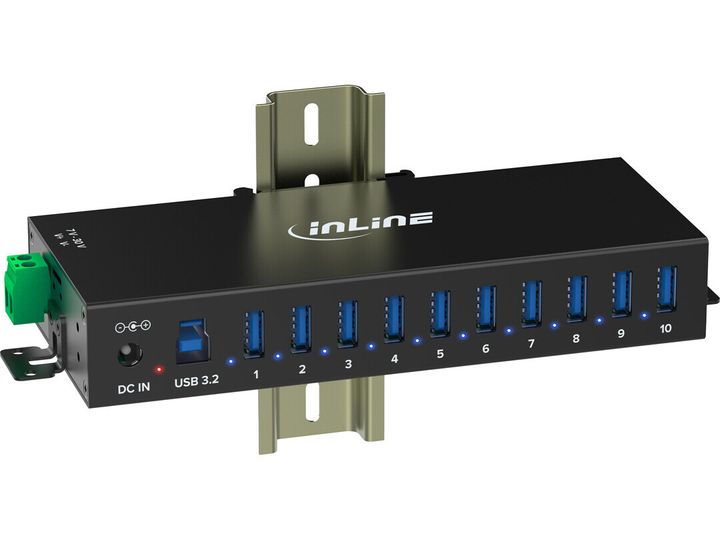

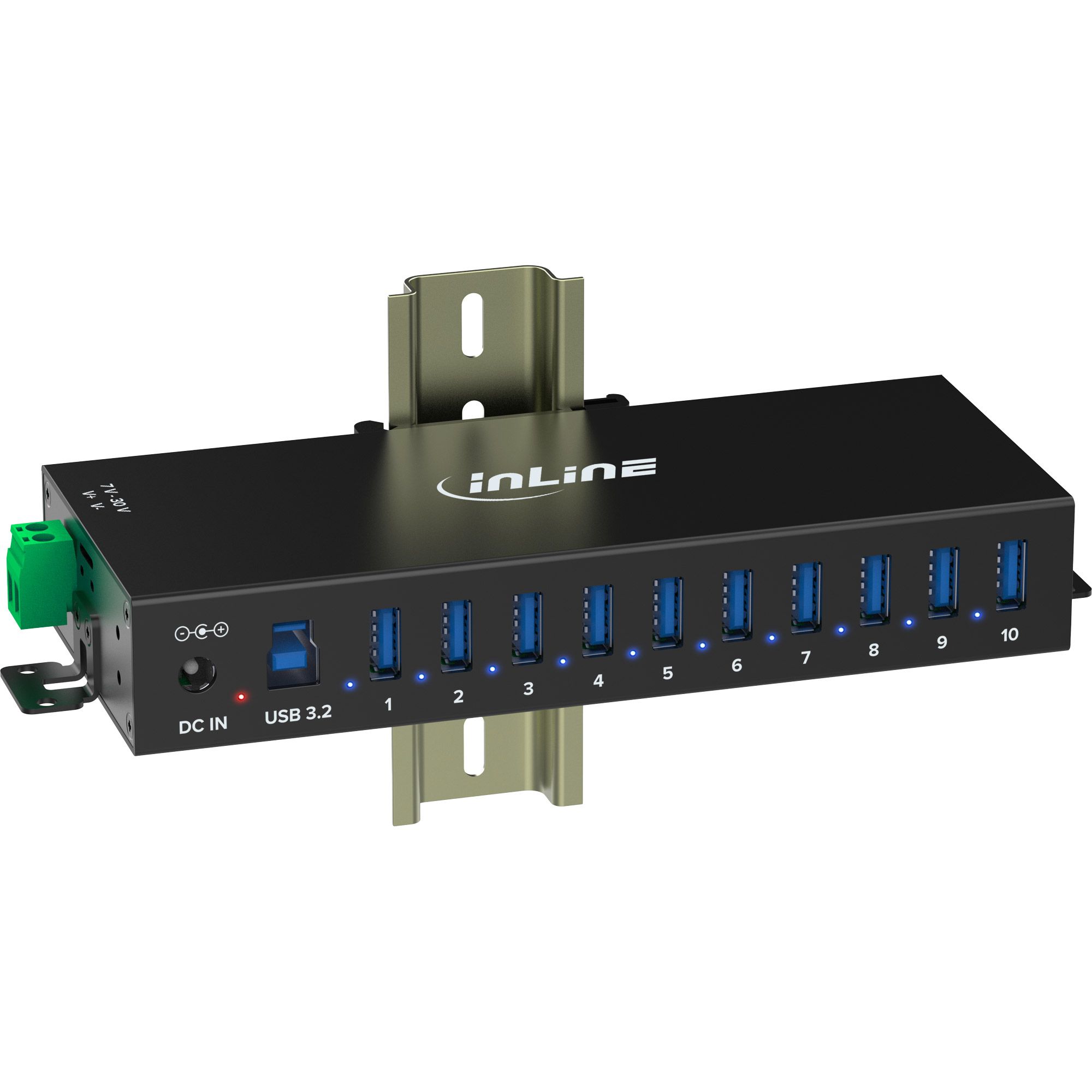

DIN rail and wall mounting:Flexible mounting options ensure secure and space-saving integration in control cabinets and technical rooms.
Powerful USB 3.2 Gen.1 ports:Ten USB-A ports offer reliable data transfer at up to 5 Gb/s – ideal for industrial applications.
Extended protection for maximum operational reliability:Integrated short-circuit, overvoltage and ESD protection ensures safe continuous operation.

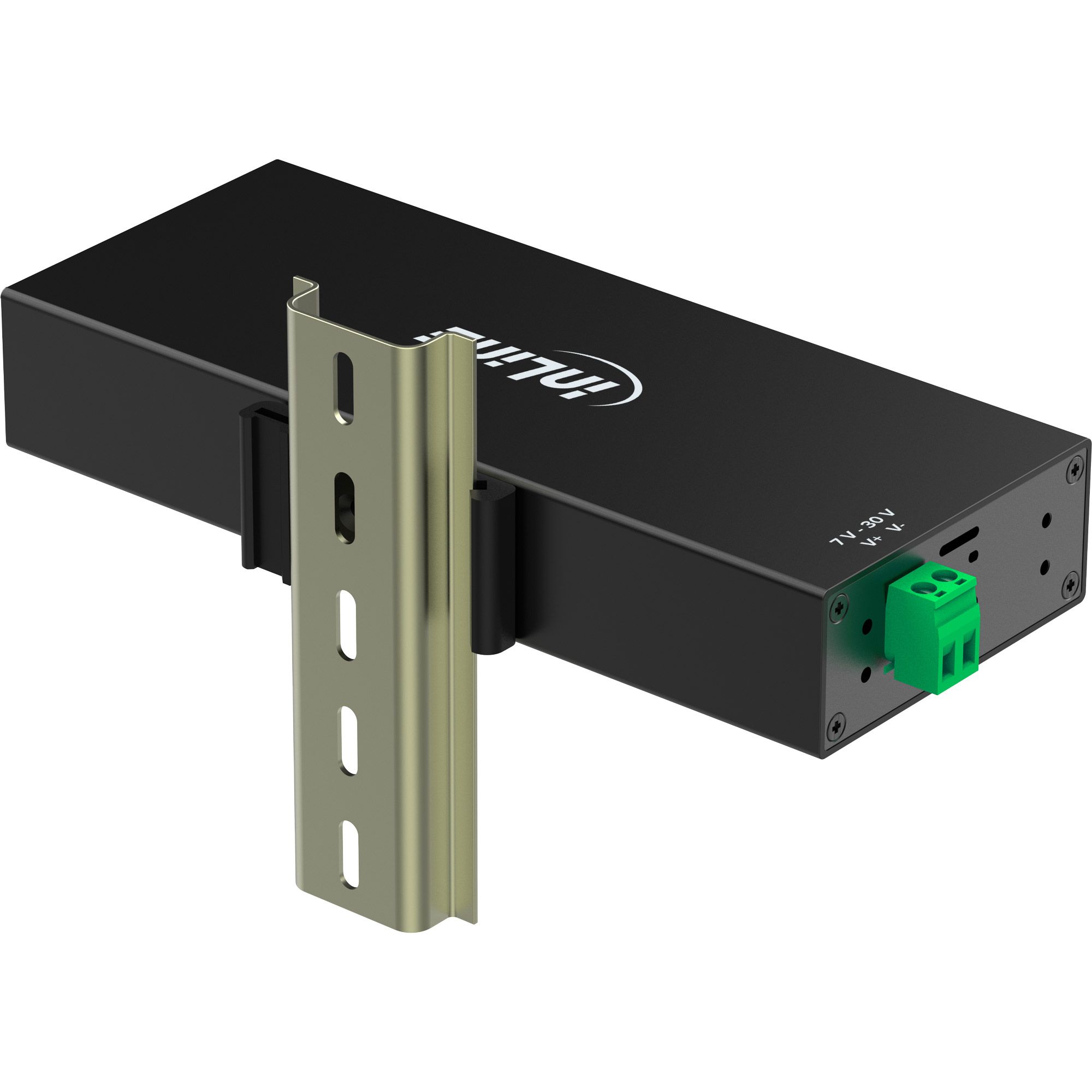

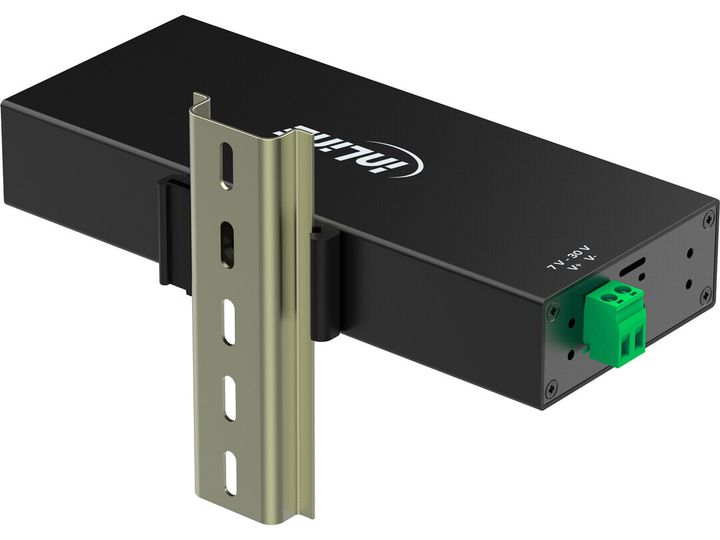

Flexible power supply:Optional power supply via power supply unit or terminal block – adapts perfectly to local conditions.

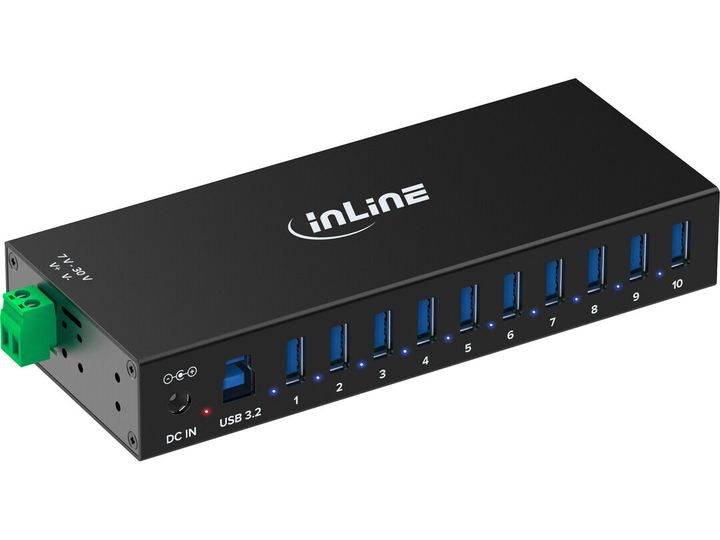

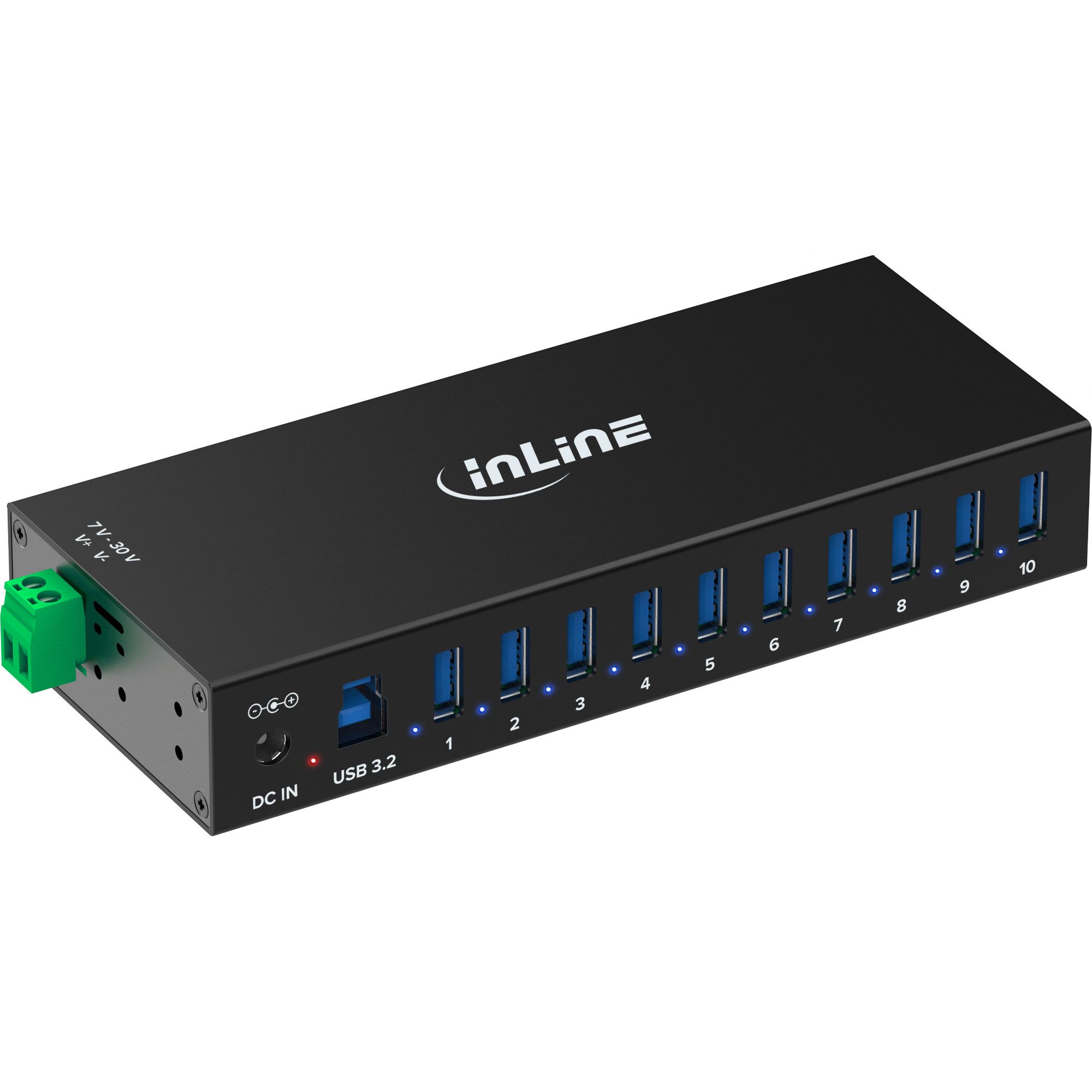

The InLine® USB 3.2 Gen.1 industrial hub is specially designed for professional use in demanding conditions. With ten powerful USB-A 3.2 Gen.1 ports and a maximum transfer rate of 5 Gb/s, it is a reliable connection solution for industrial IT and control systems. The high-quality aluminium housing protects against mechanical stress and enables safe operation even at extreme ambient temperatures from -40°C to +85°C. Thanks to the flexible mounting options – DIN rail or wall bracket – the hub can be easily integrated into existing infrastructures.
Integrated protection against short circuits, overvoltage and electrostatic discharge ensures additional safety during operation. Power is supplied either via a supplied external power supply unit or alternatively via a 2-pin terminal connection. This makes the hub particularly flexible in use – from control cabinets and machine controls to technical rooms in IT infrastructure.
Compatibility with Windows, MacOS and Linux, as well as easy plug-and-play setup, make the industrial hub a versatile interface solution for professional applications.

Chipset: VL817*3
Inputs:
– 1x USB-B port for connection to host computer
– 1x DC IN (5.5 x 2.5 mm)
– 1x alternative 2-pin terminal connection
Outputs
– 10x USB-A 3.2 Gen.1 ports (5 Gb/s)
– BC1.2 charging specification: Yes (max. 5 V / 2 A per port)
Protective mechanisms:
– Short circuit, overcurrent, overvoltage
– ESD/antistatic protection: 350 W
Housing: Aluminium, black
Mounting: DIN rail or wall bracket
LED display: Yes
Plug & Play: No drivers required
Standby power consumption: 0.07 W
Operating temperature: -40°C to +85°C
Storage temperature: -40°C to +125°C
Humidity: 10–85% (non-condensing)
Operating systems: Windows, MacOS, Linux
Dimensions: 164 x 68 x 28 mm
Weight: 227 g

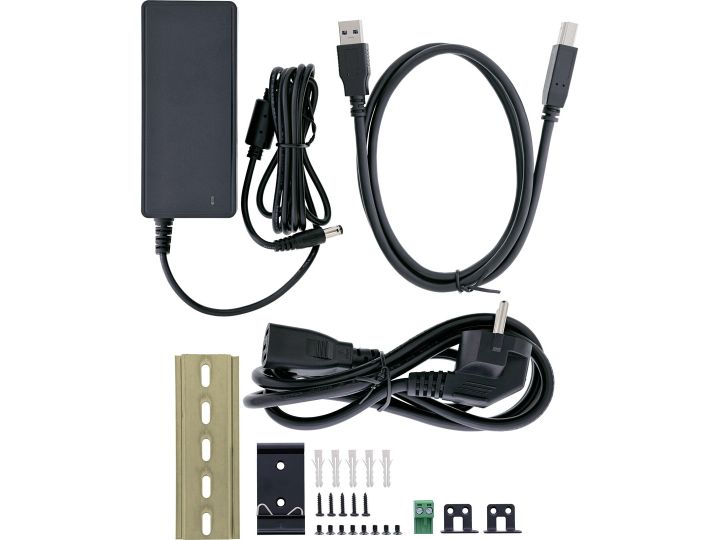

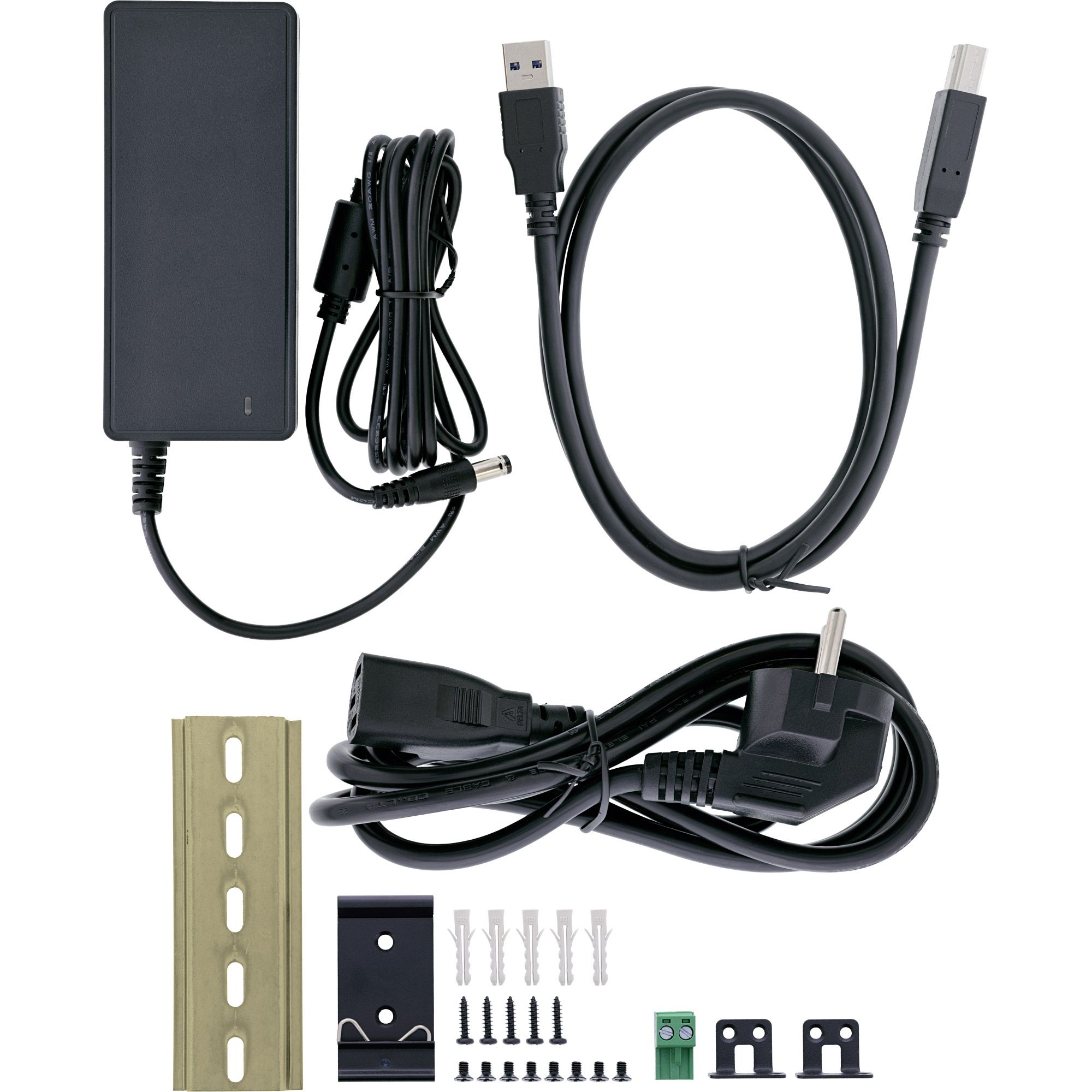

Scope of delivery
– 1x InLine® USB 3.2 Gen.1 industrial hub, 10 ports, aluminium housing, with power supply unit
– 1x USB-A to USB-B cable, 1 m
– 1x mounting kit
– 1x DIN rail 10 cm & clip
– 1x terminal block
– 1x external power supply 12 V / 4 A
– 1x user manual German/English
External power supply (power supply unit):
– Type: external plug-in power supply
– Input voltage: 100–240 V AC, 50/60 Hz
– Output voltage: 20.0 V DC
– Output current: max. 3.0 A
– Output power: 60.0 W
– Average efficiency in operation: 92.62%
– Efficiency at low load (10%): 91.35%
– Power consumption at zero load: 0.081 W
