InLine 57886B, 3840 x 2160 pixel, AV sender & modtager, 70 m, Ledningsført, Sort

Simultaneous HDMI signal distribution to up to four displays:An HDMI source signal is transmitted in parallel to up to four spatially separated display devices. The output is synchronised with stable image and sound quality.
Long transmission distances via RJ45 point-to-point connections:The HDMI signal is transmitted via network cables. Distances of up to 70 m for Full HD and up to 40 m for 4K@30Hz can be achieved.
High image quality up to 4K at 30 Hz:Resolutions up to 3840 x 2160 @ 30 Hz with 4:4:4 colour sampling and a maximum data rate of 10.2 Gb/s are supported.
EDID management via DIP switch:The integrated EDID control on the main unit allows adjustment to connected displays and supports stable signal output.
IR forwarding for convenient remote control:Infrared control signals are transmitted between the display and the signal source.

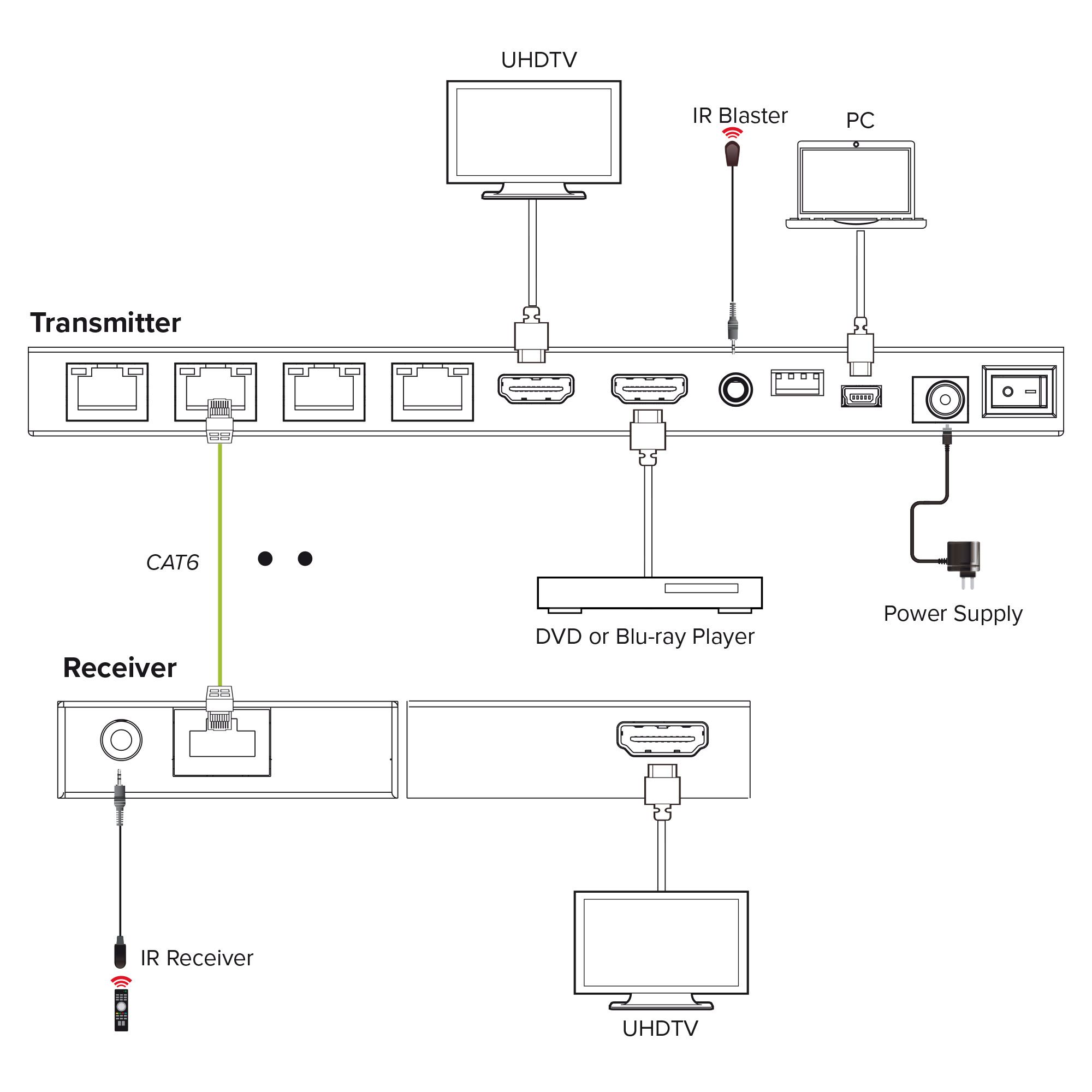

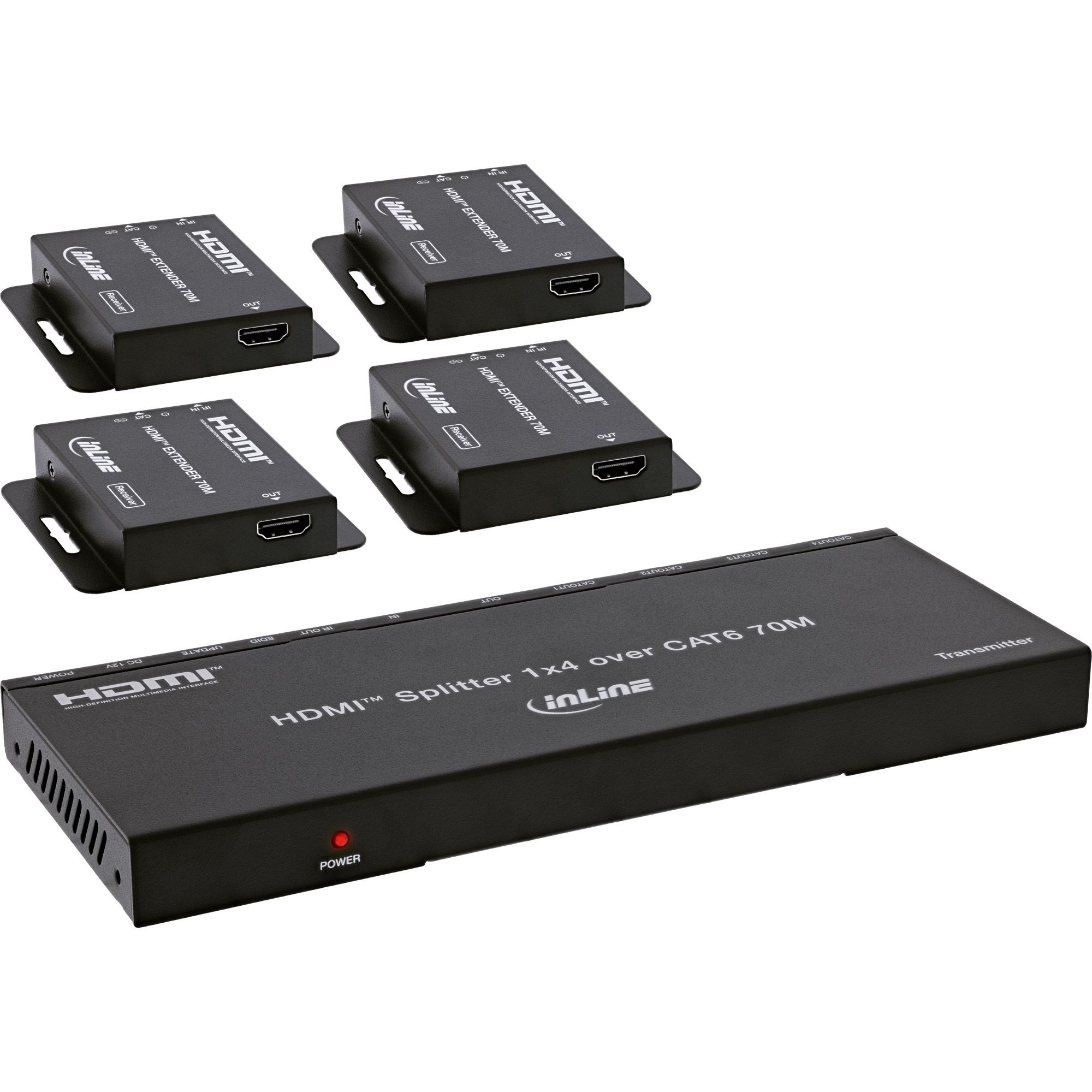

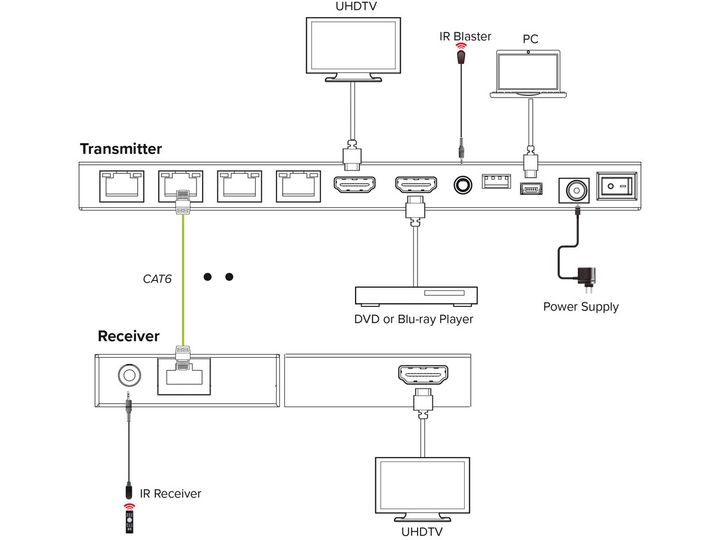

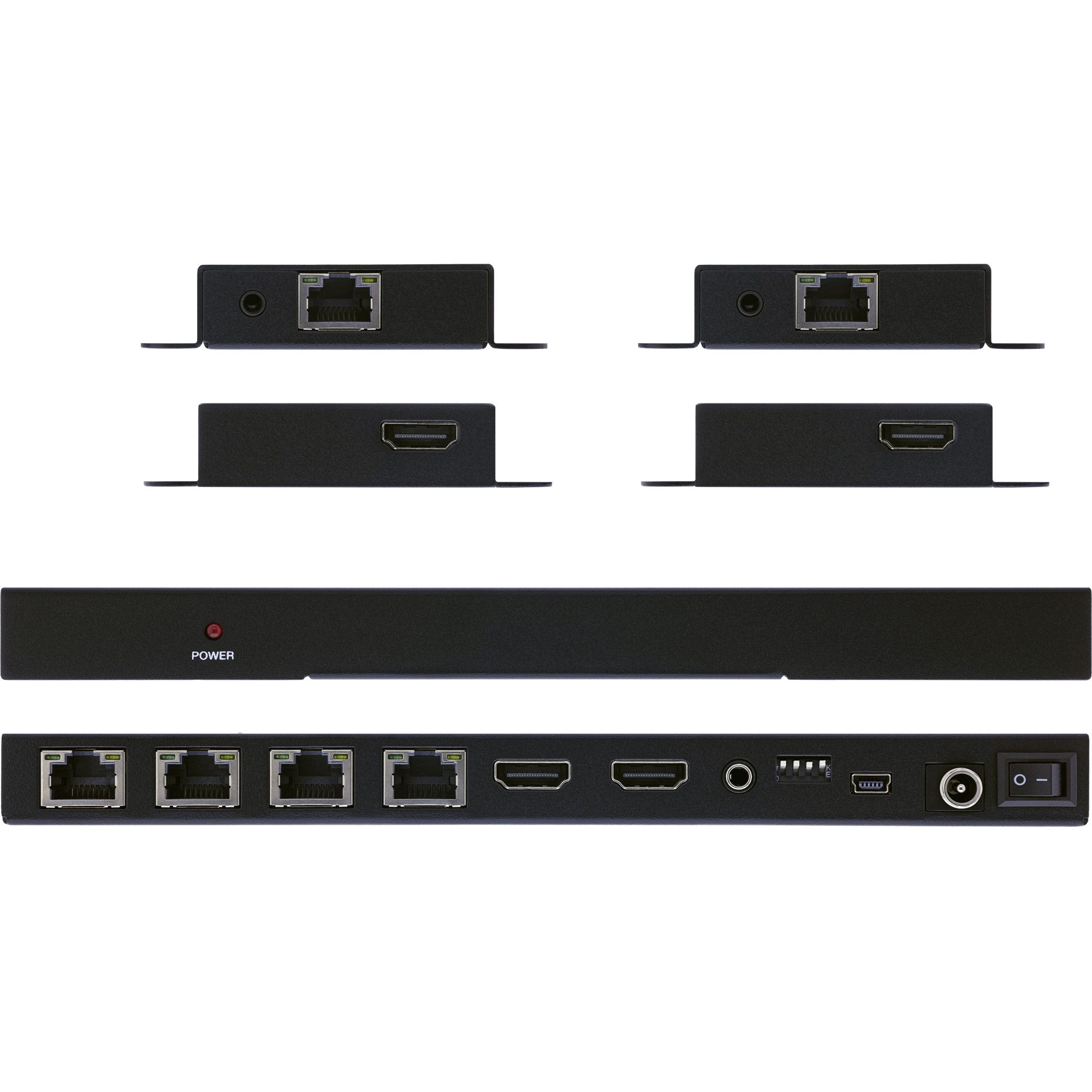

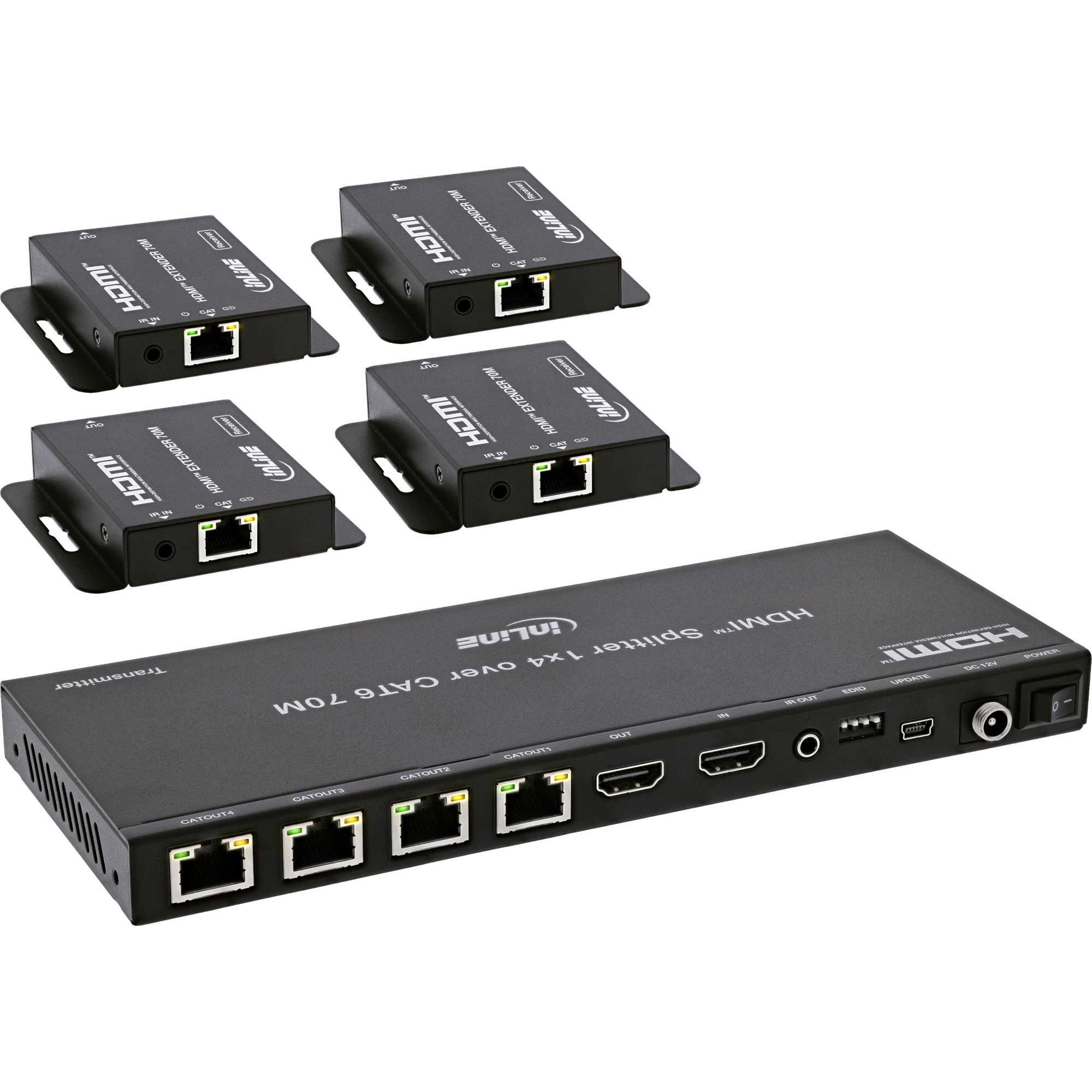

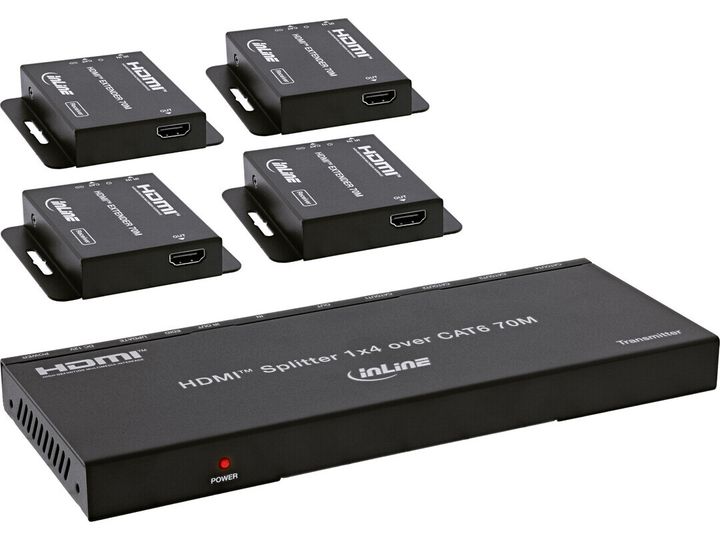

The InLine 1x4 HDMI Extender enables the simultaneous transmission of an HDMI signal from one signal source to up to four spatially separated displays. The connection between the main unit and the receivers is established via direct point-to-point RJ45 connections using standard network cables.
Large distances can be achieved by using Cat.6 cables. With a resolution of 1920 x 1080 @ 60 Hz, transmission distances of up to 70 m are possible. At 3840 x 2160 @ 30 Hz, stable connections of up to 40 m are achieved. Support for HDMI 1.4 and HDCP 1.4 ensures compatible and reliable signal transmission.
To optimise signal distribution, the extender features EDID management via DIP switches on the main unit. In addition, infrared control signals are transmitted so that the signal source can also be operated from the location of the displays.
Technical features

Transmission medium: Network cable (CAT6 recommended)
Maximum number of receivers: 4
Transmission of control signals: Infrared (IR)
EDID management: DIP switch on the main unit (transmitter)
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–90%, non-condensing

Maximum transmission distance:

Up to 70 m at 1920 x 1080 @ 60 Hz via CAT6
Up to 40 m at 3840 x 2160 @ 30 Hz (4:4:4, 8 bits) via CAT6

Video / signal

HDMI standard: HDMI 1.4
HDCP: Version 1.4
Maximum resolution:
- 1920 x 1080 @ 60 Hz
- 3840 x 2160 @ 30 Hz
Maximum data rate: 10.2 Gb/s (297 MHz)
Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Colour depth:
- 8 / 10 / 12 bits at 1080p @ 60 Hz
- 8 bits at 4K @ 30 Hz

Audio
Supported audio formats:

LPCM up to 7.1
Dolby TrueHD
DTS-HD Master Audio

Power supply (external)

Input: AC 100–240 V / 50–60 Hz
Output: DC 12.0 V / 2.5 A
Output power: max. 30.0 W
Average efficiency in operation (230 V / 50 Hz): 89.26%
Power consumption at zero load (230 V / 50 Hz): 0.06 W
Efficiency at low load (10%) (230 V / 50 Hz): 85.60%

Scope of delivery

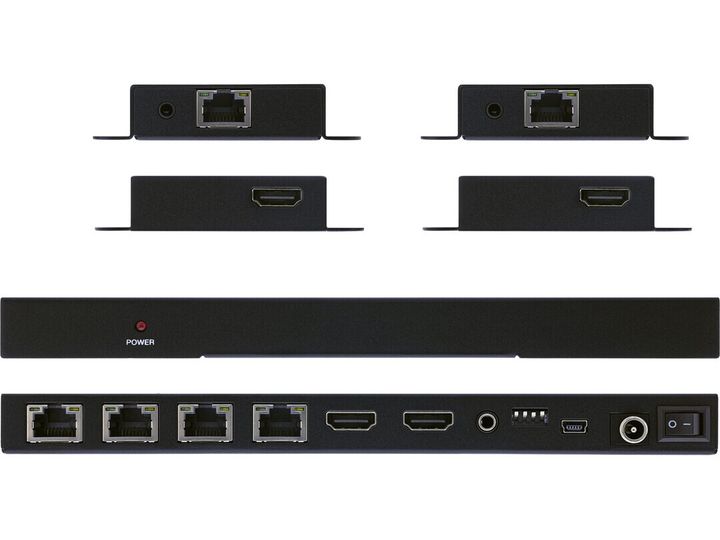

1 x HDMI extender – main unit (transmitter)
4 x HDMI extender – receiver

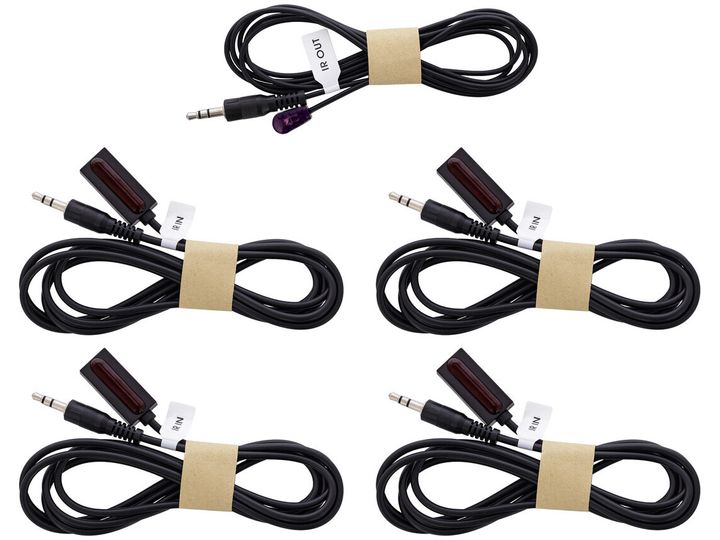

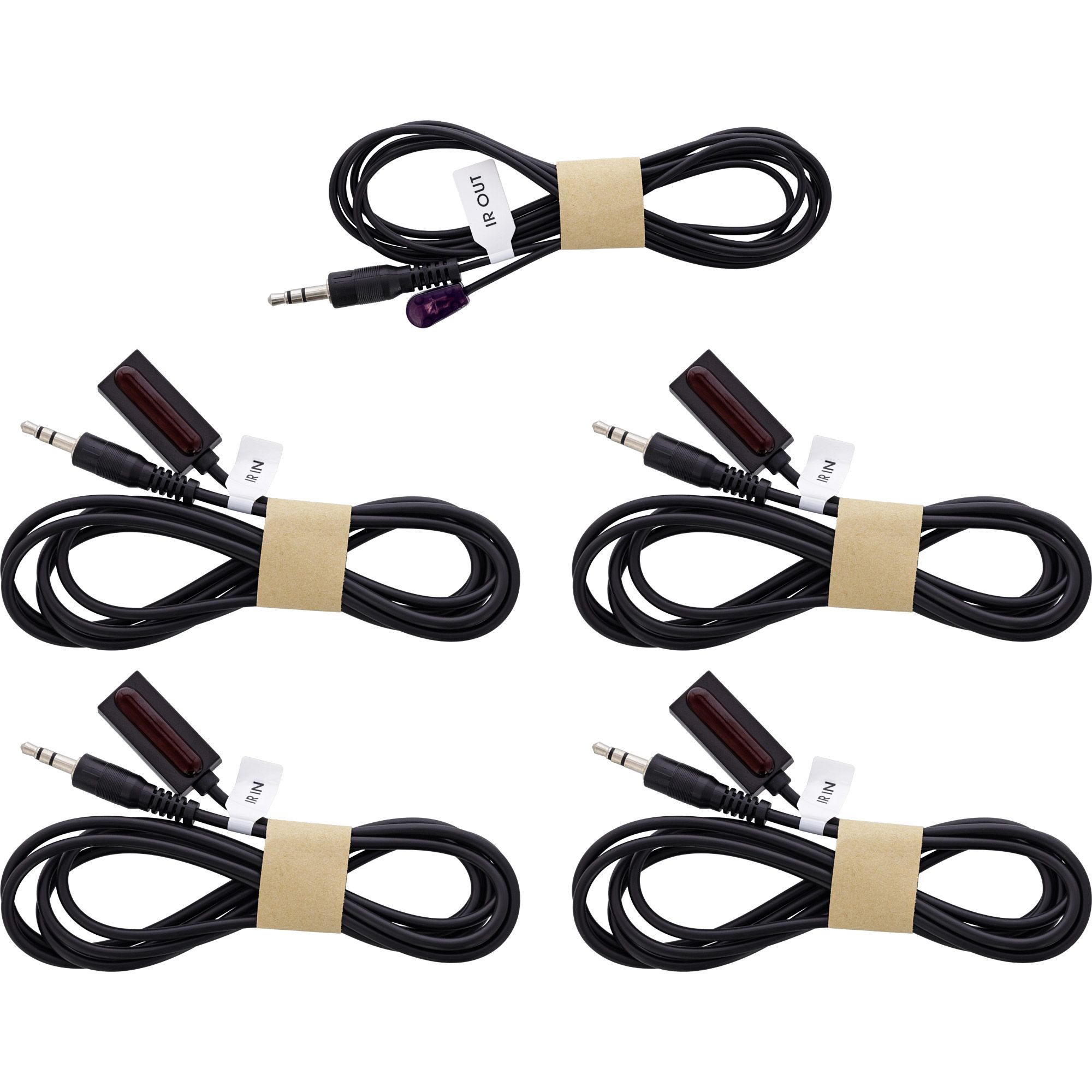

1 x IR transmitter cable (approx. 1.5 m)
4 x IR receiver cables (approx. 1.5 m)
2 x mounting brackets
4 x machine screws (M3x4)

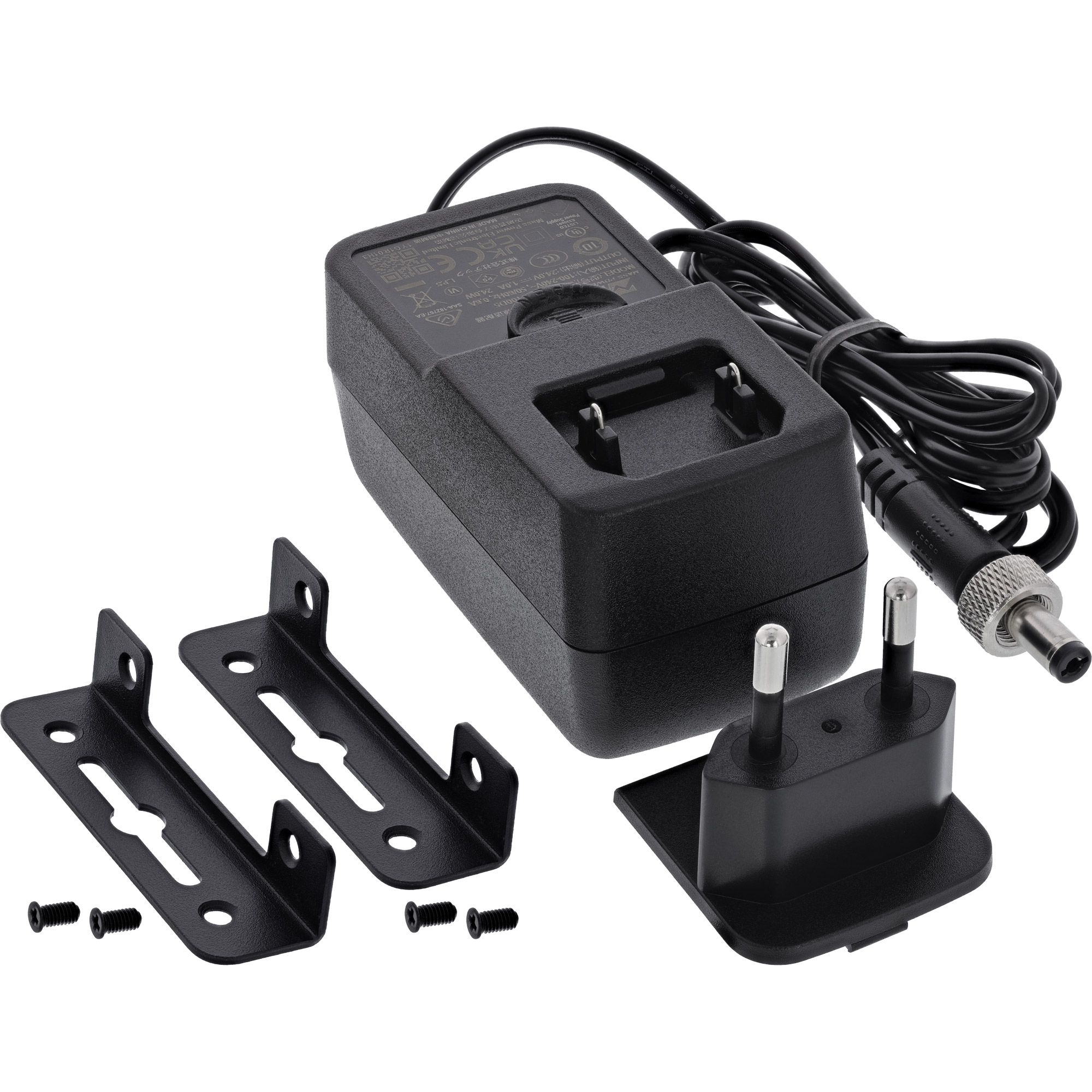

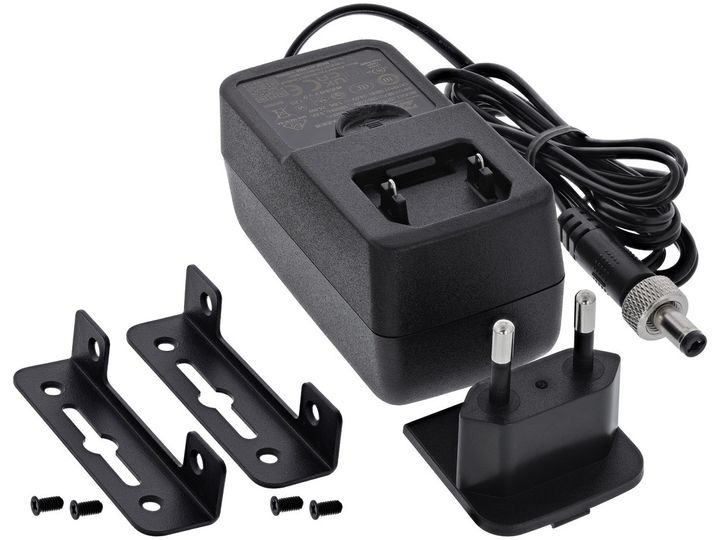

1 x power supply unit (DC 12 V / 2.5 A, lockable)
1 x operating instructions in German/English
