InLine 57885J, 4096 x 2160 pixel, 4K Ultra HD, Sort

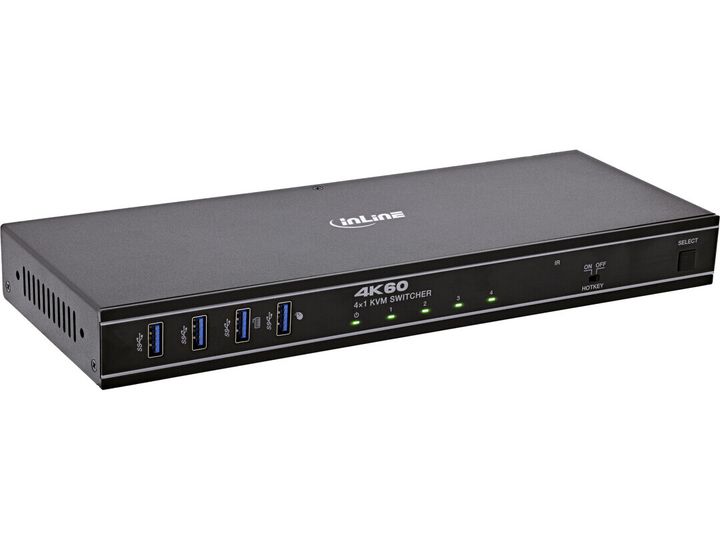

Centralised control of multiple computers:The DisplayPort KVM switch allows you to conveniently switch between up to four computers at a shared workstation with a monitor, keyboard and mouse.
High-resolution video transmission:Supports DisplayPort 1.4a with resolutions up to 4K at 60 Hz and HDR for detailed, smooth and colour-accurate image display.
Flexible switching options:System switching can be performed using the front button, keyboard hotkeys, mouse hotkeys, IR remote control or serial RS-232 control commands.
Shared use of USB peripherals:USB keyboard and USB mouse can be used centrally for all connected computers via the integrated KVM function.
Robust and professional design:The metal housing ensures high stability and reliability in continuous stationary operation indoors.

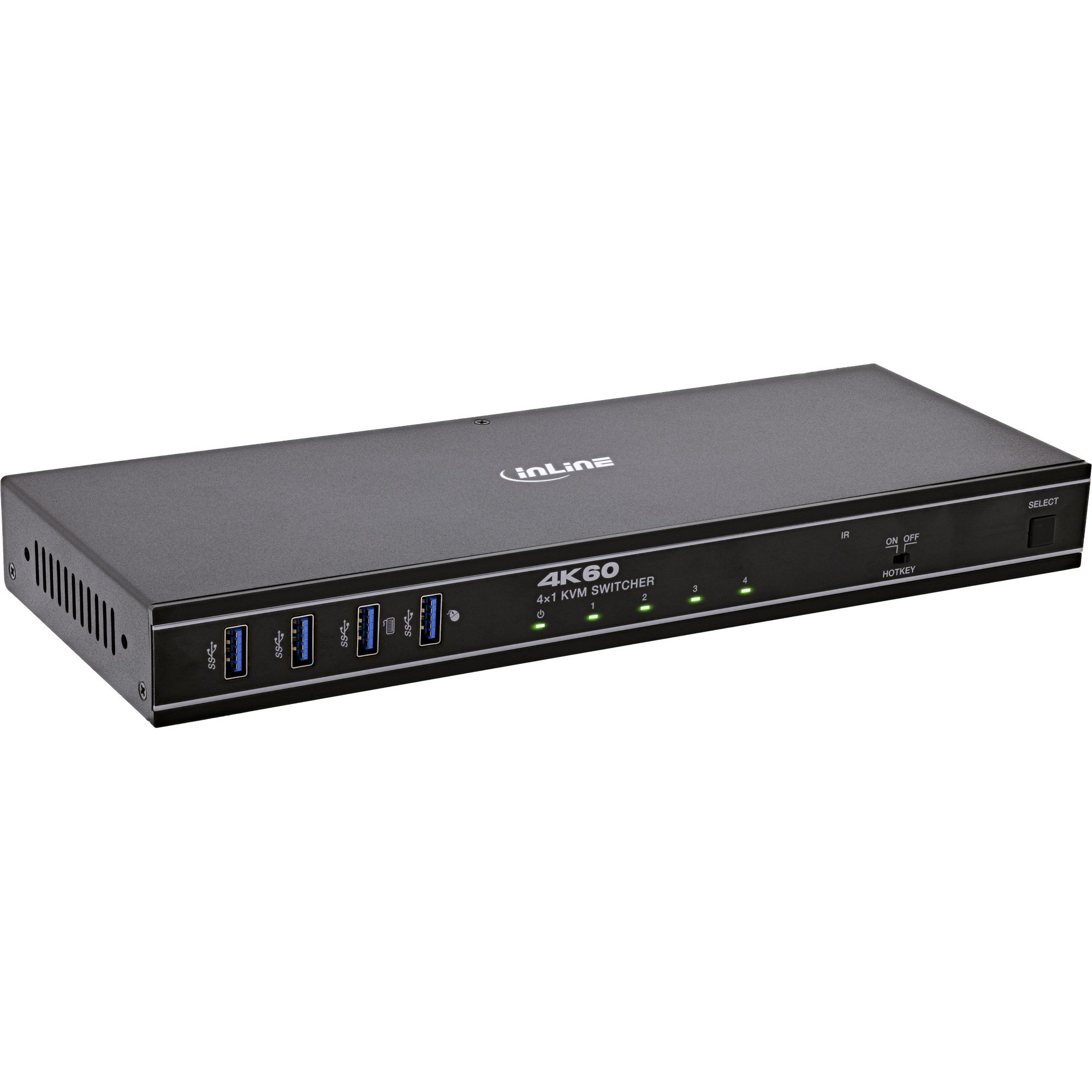

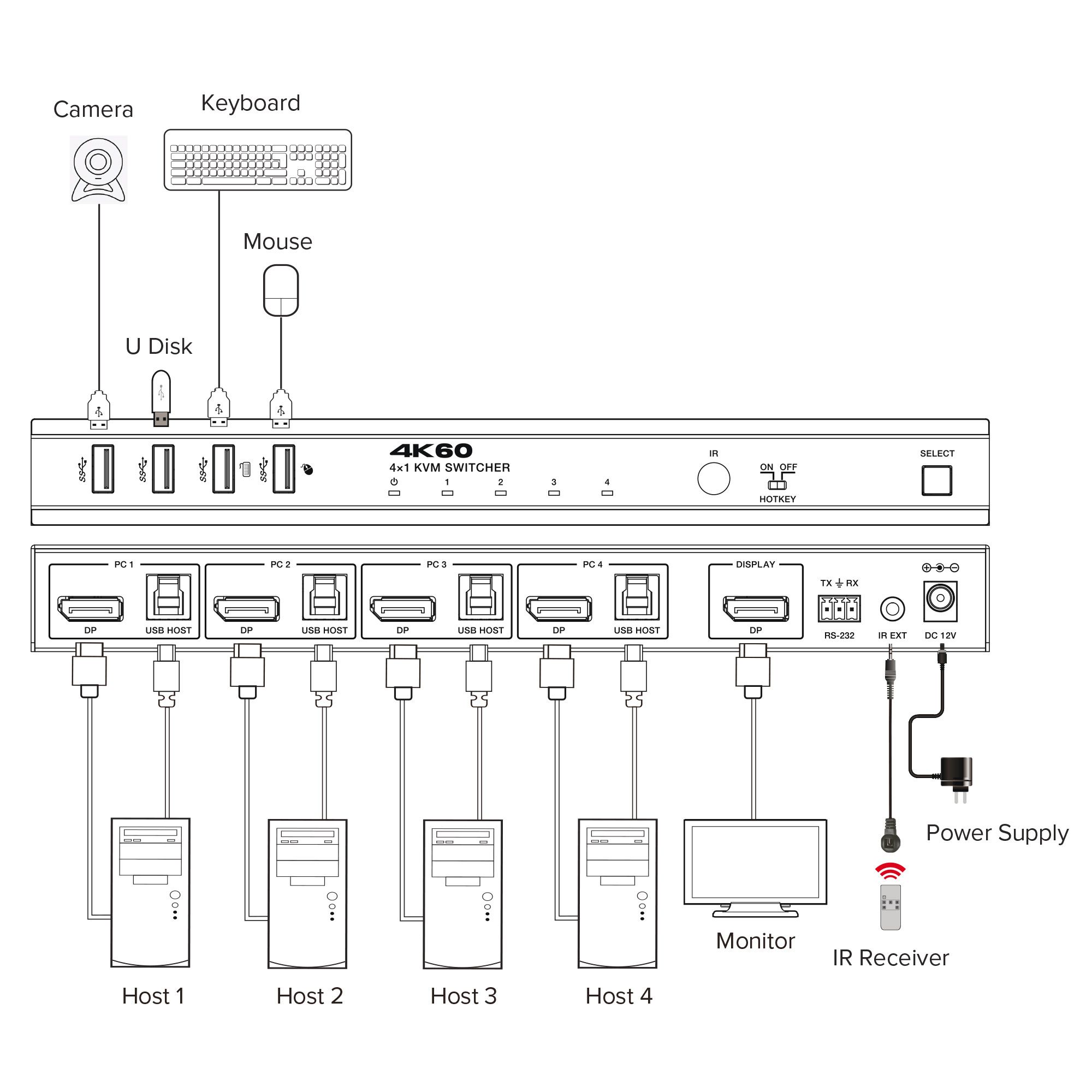

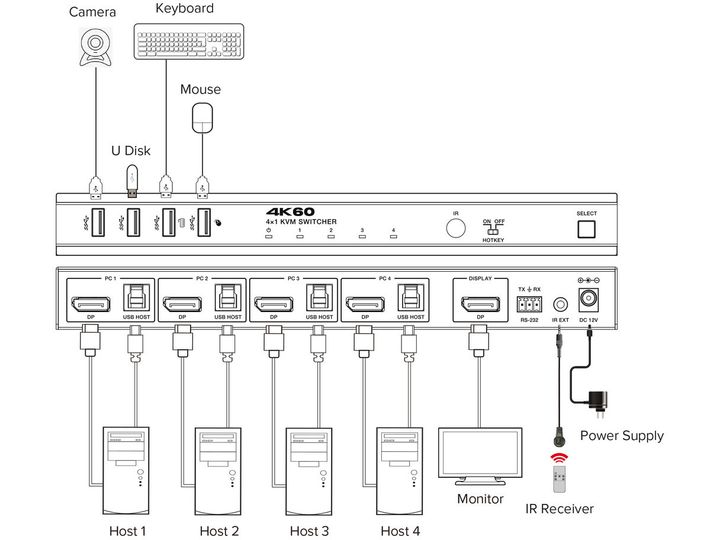

The InLine DisplayPort KVM Switch enables centralised operation of up to four computers via a shared workstation with display, keyboard and mouse. The device supports DisplayPort video signals with resolutions up to 3840 x 2160 or 4096 x 2160 at 60 Hz, making it suitable for demanding applications with high requirements for image quality and signal stability.
Thanks to DisplayPort 1.4a, HDCP 2.2 and support for modern HDR formats, content is transmitted in rich detail, smoothly and with true-to-life colours. The integrated KVM function allows shared use of a USB keyboard and USB mouse across all connected computers, reducing space requirements and cabling effort in the workplace.
Switching between the individual systems can be done flexibly. In addition to a button on the device, keyboard and mouse hotkeys, an IR remote control and serial RS-232 control commands are available. This allows the KVM switch to be optimally adapted to different workflows and control concepts.
The robust metal housing supports reliable operation in dry indoor environments. The DisplayPort KVM switch is designed for stationary use and enables efficient, clear and convenient control of multiple computers via a central control unit.
Technical features
Specifications

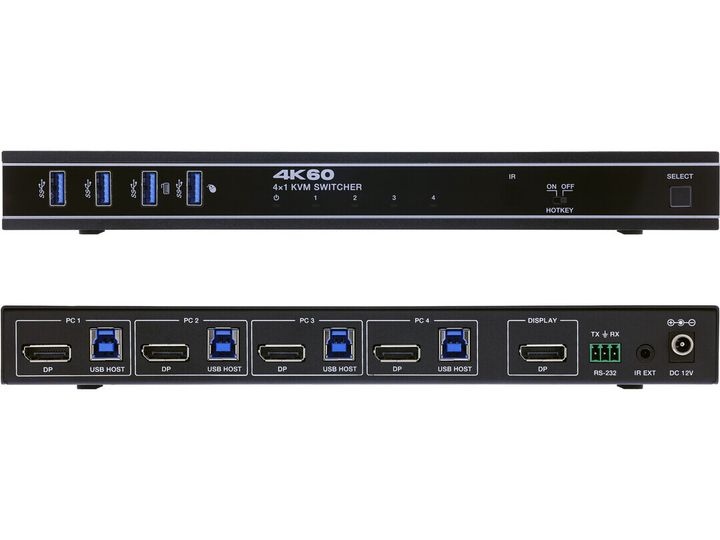

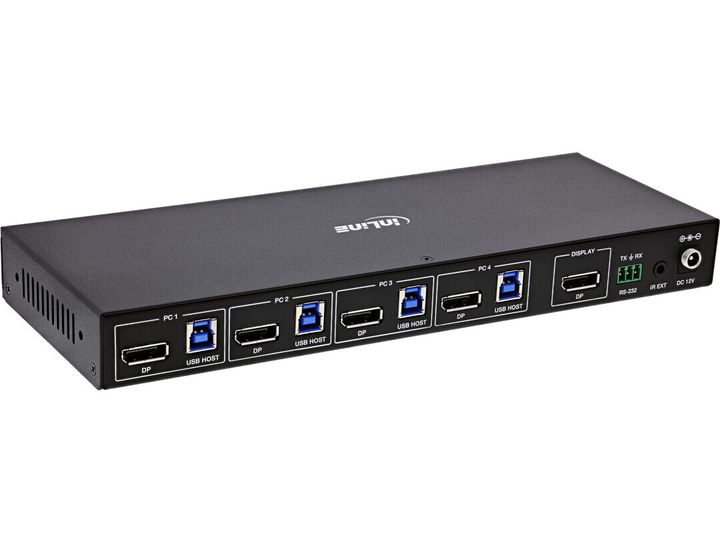

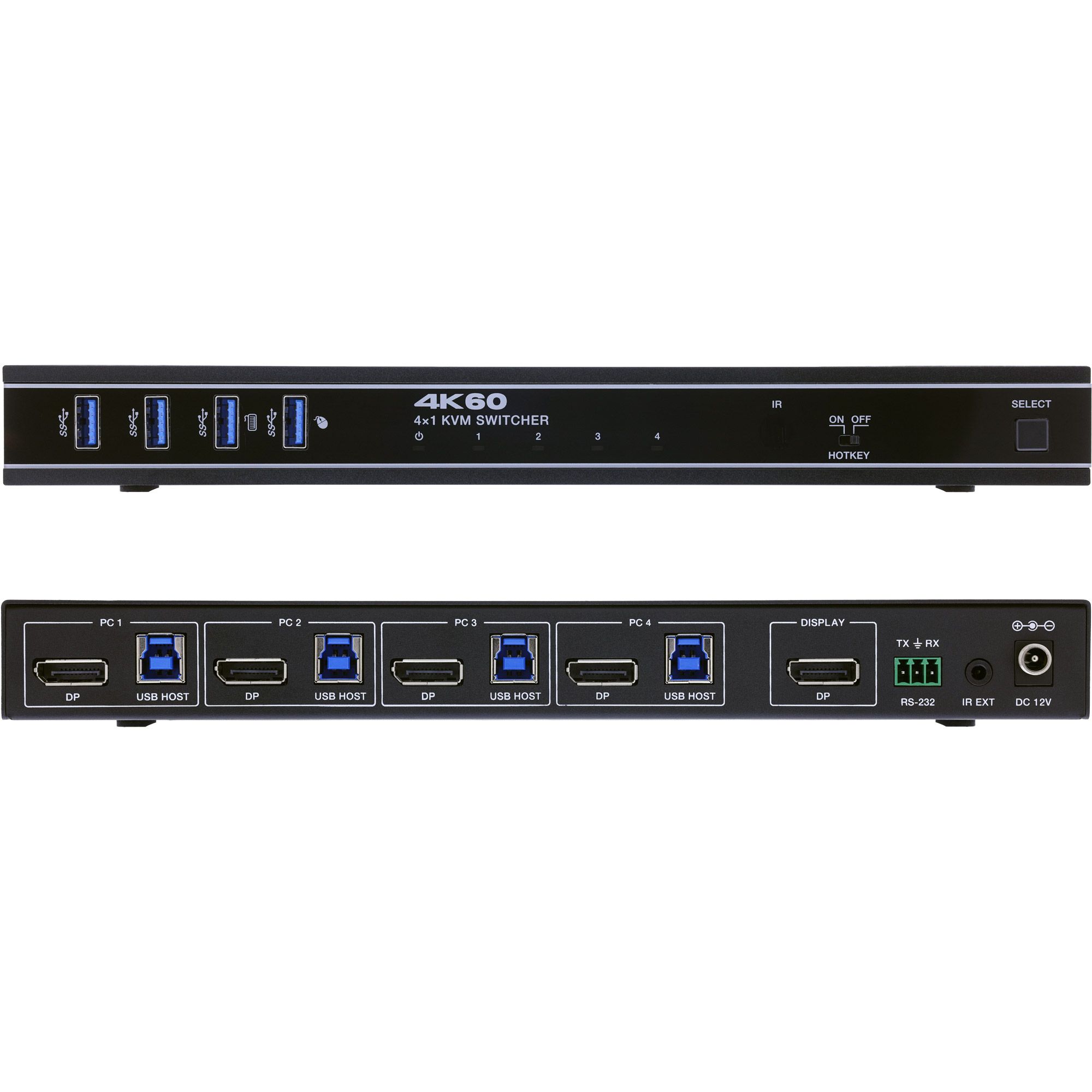

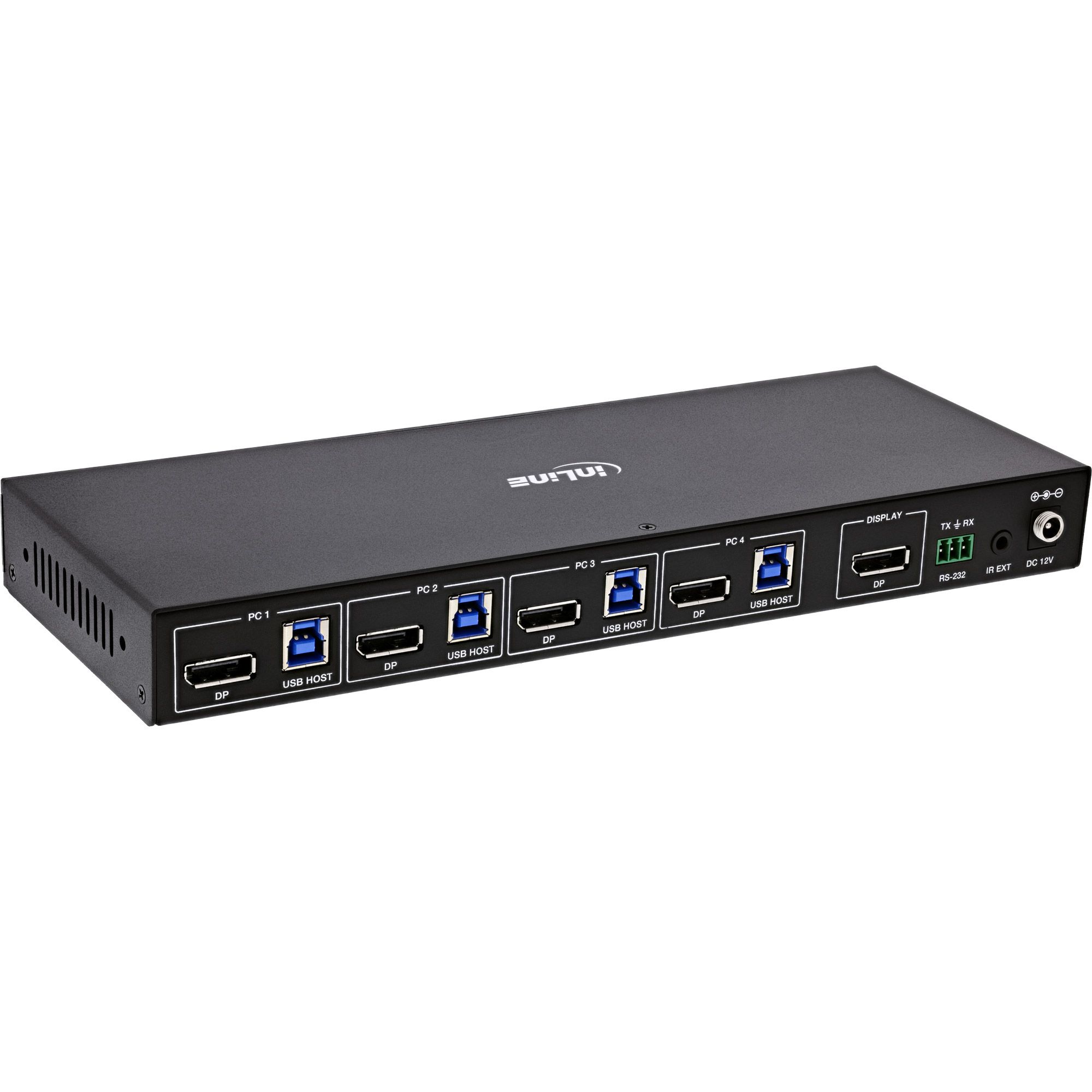

Number of inputs: 4 x DisplayPort
Number of outputs: 1 x DisplayPort
KVM function: USB keyboard and USB mouse
Switching types: Front button, keyboard hotkeys, mouse hotkeys, IR remote control, RS-232
Supported operating systems: Windows, macOS, Linux

Video

DisplayPort standard: DisplayPort 1.4a
HDCP: Version 2.2
Maximum resolution: 3840 x 2160 @ 60 Hz, 4096 x 2160 @ 60 Hz
Maximum bandwidth: 32.4 Gbit/s
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Colour depth: 8-bit, 10-bit or 12-bit
Colour spaces: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Audio
Supported audio formats via DisplayPort:

LPCM
Dolby Digital, Dolby Digital Plus
Dolby TrueHD, Dolby Atmos
DTS, DTS-HD Master Audio, DTS:X, DSD

Mechanical

Housing: Metal
Colour: Black
Operating temperature: 0 to 40 °C
Storage temperature: –20 to 60 °C
Relative humidity: 20 to 80%, non-condensing

Power

Input: AC 100–240 V / 50–60 Hz
Output: DC 12.0 V / 1.0 A
Output power: max. 12.0 W
Average operating efficiency (230 V / 50 Hz): 83.13%
Power consumption at zero load (230 V / 50 Hz): 0.06 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.80%

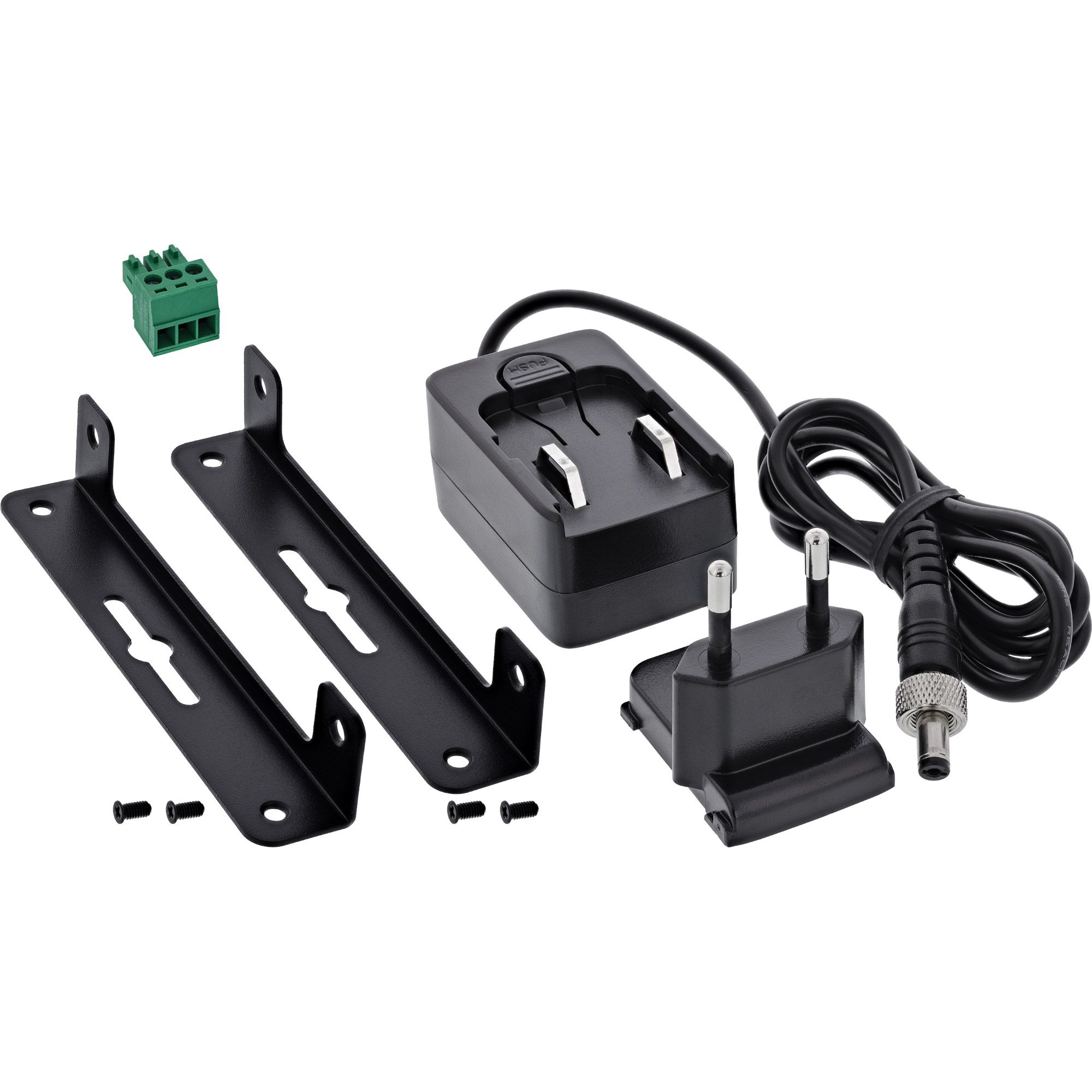

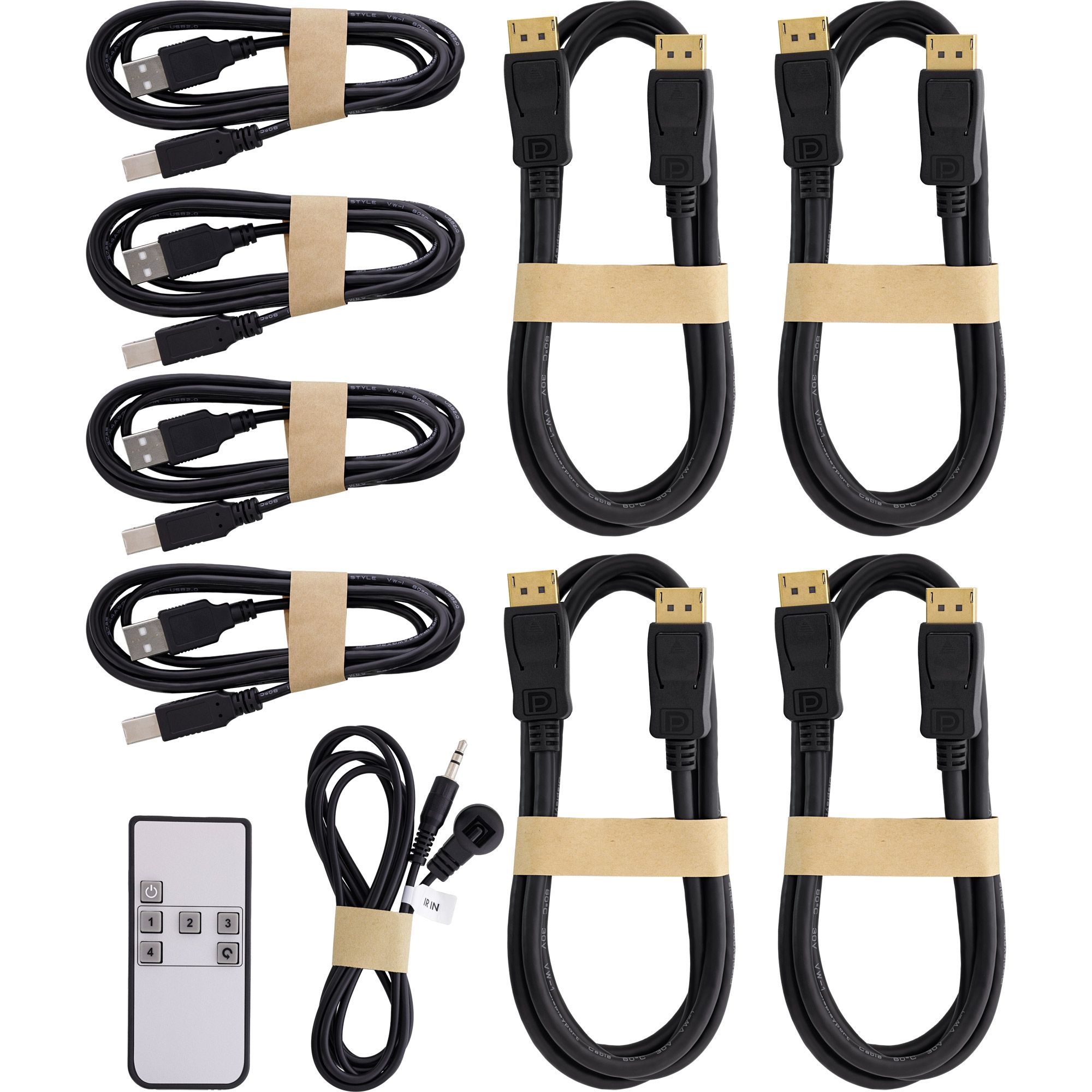

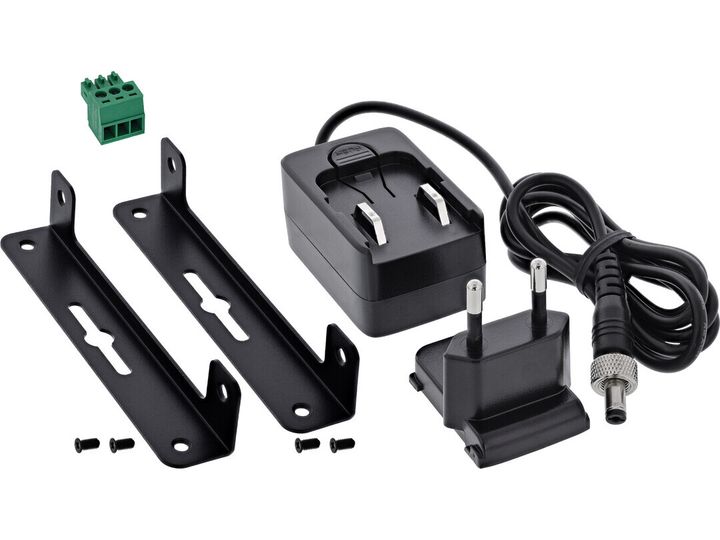

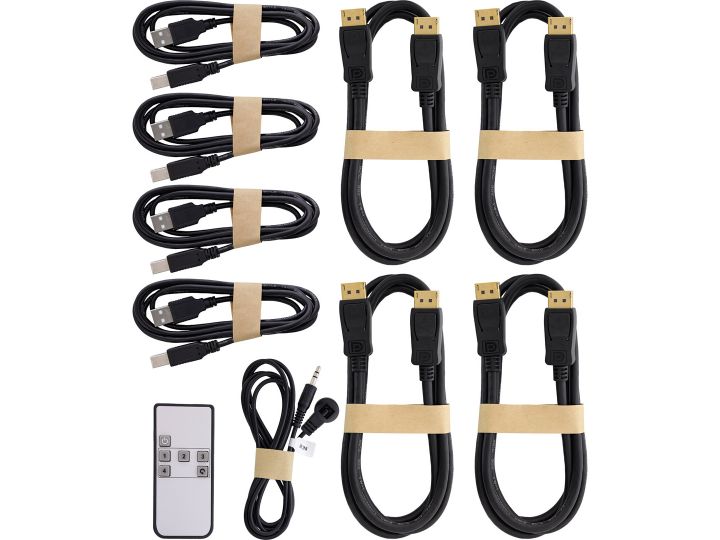

Scope of delivery

1 x DisplayPort KVM switch, 4-port
1 x power supply (DC 12 V / 1 A)
1 x IR remote control
1 x IR receiver cable (approx. 1.5 m)
4 x USB cable (USB-A to USB-B, approx. 1.8 m)
4 x DisplayPort cable (approx. 1.5 m)
1 x 3-pin screw terminal connector (RS-232)
1 x User manual in German/English
