InLine 57886C, 3840 x 2160 pixel, AV sender & modtager, 150 m, Ledningsført, Sort

Reliable HDMI transmission over long distances:HDMI image and sound signals are transmitted over a single network cable up to 150 metres. Signal quality remains stable even at high resolutions.
Full 4K performance at 18 Gb/s:Supports resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) . Suitable for demanding video applications with high colour resolution and refresh rates.

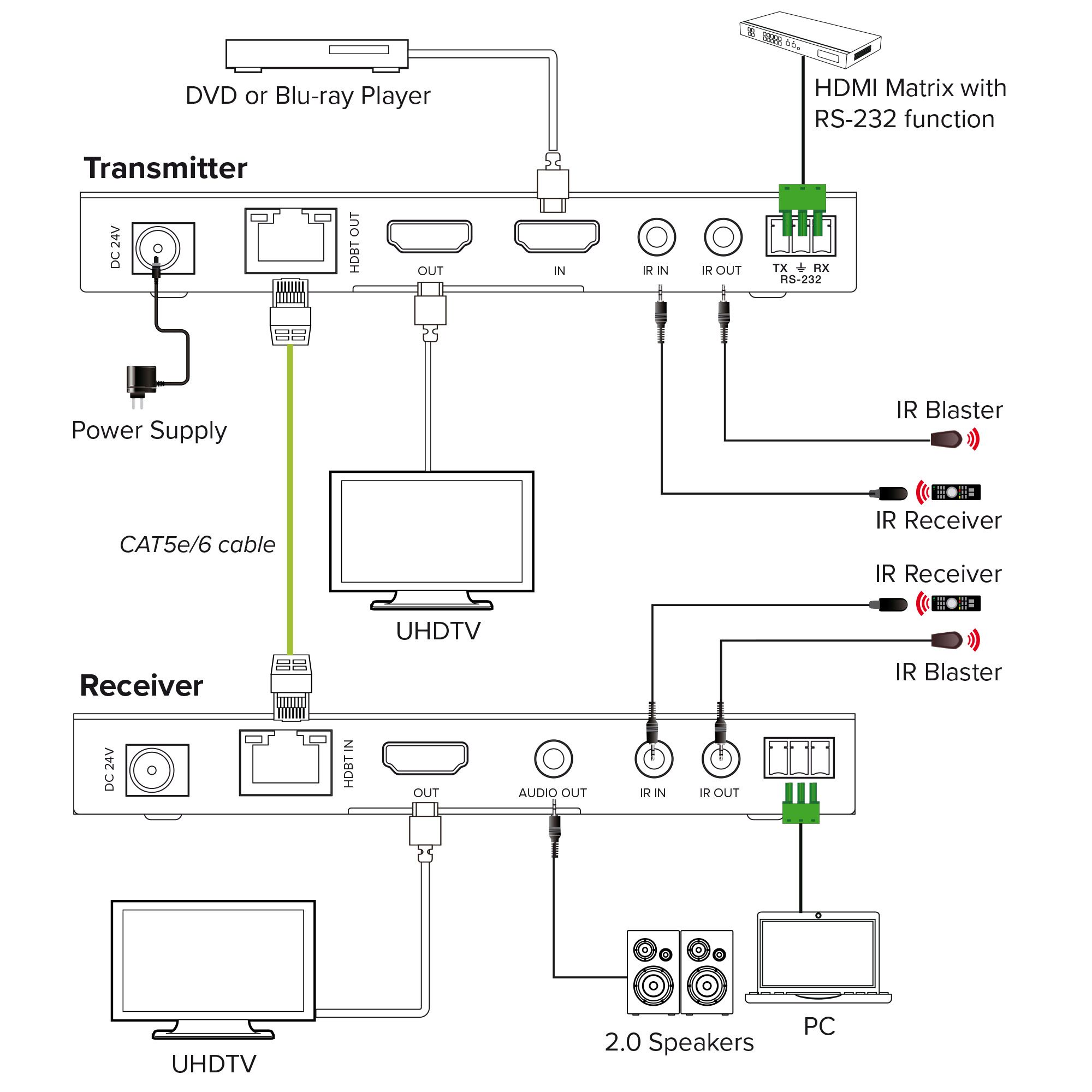

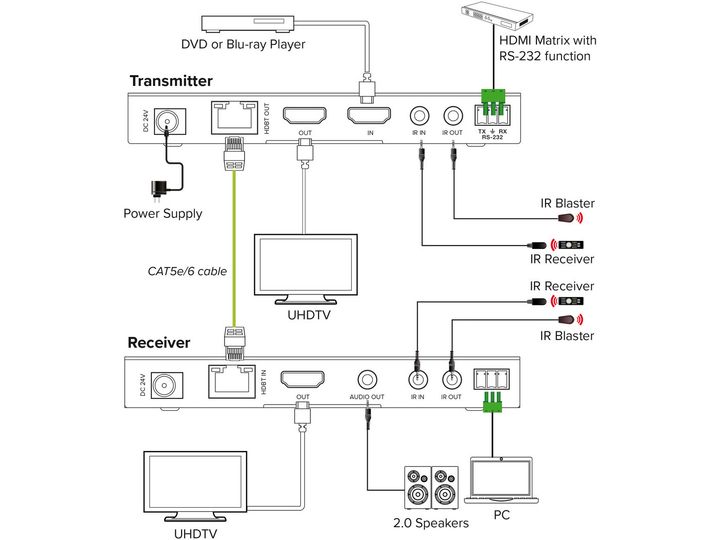

Advanced control options:IR and RS-232 signals are transmitted together with the HDMI signal. This enables centralised control of source and display devices.
Flexible installation with local image output:The HDMI loop-out on the transmitter allows additional image output directly at the signal source. This facilitates control and setup.
Designed for continuous professional use:The system is designed for continuous operation in dry indoor environments and is suitable for technically demanding environments.

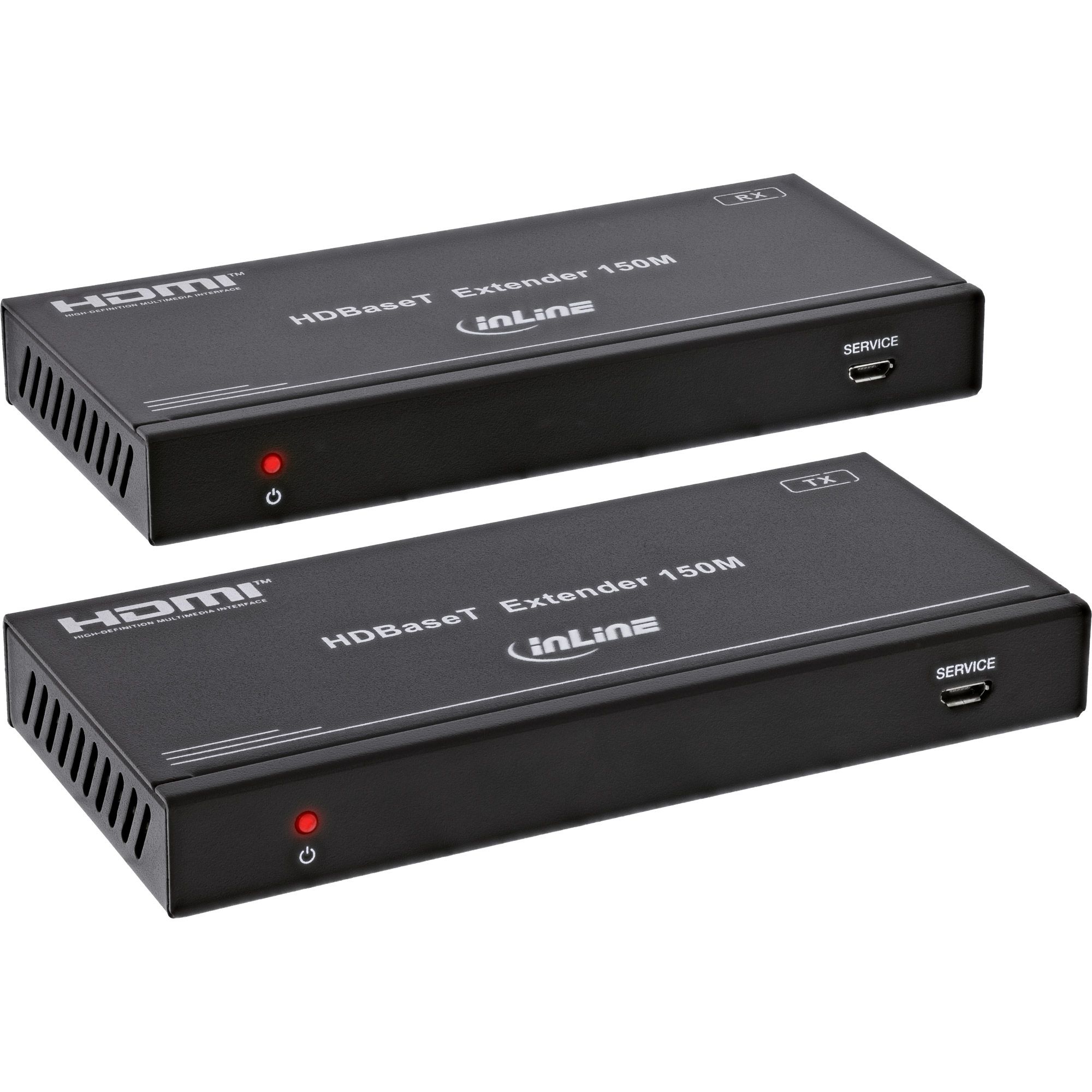

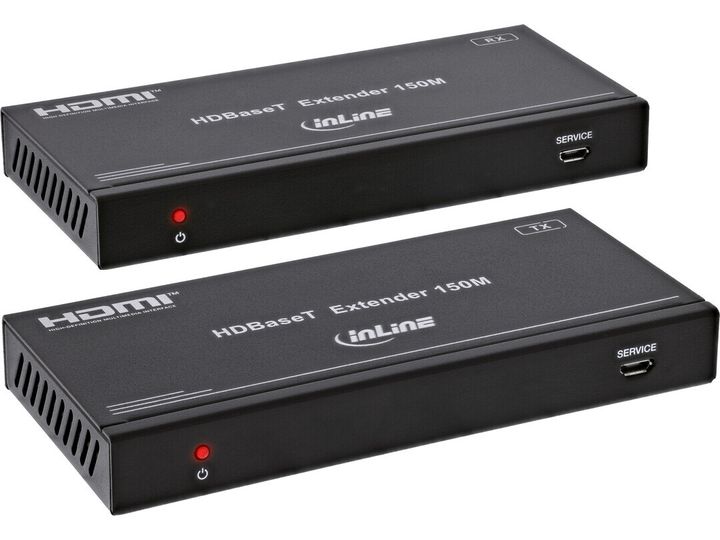

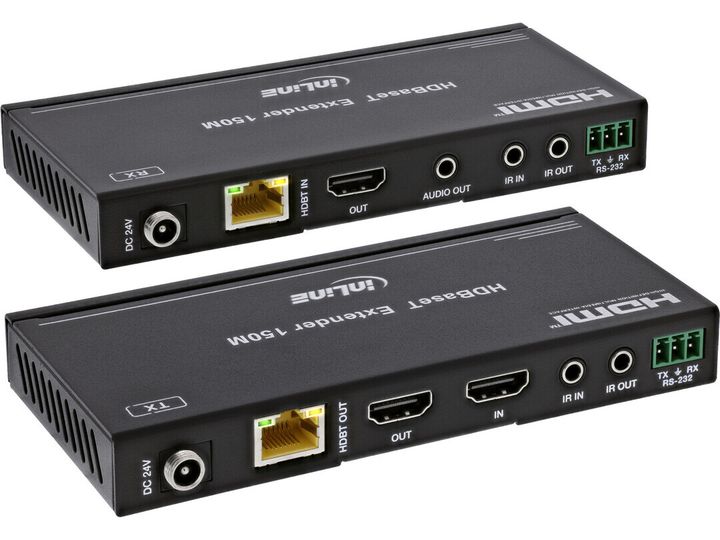

The InLine® HDMI HDBaseT Extender enables the transmission of HDMI image and sound signals over long distances of up to 150 m via a single network cable. It is based on the HDBaseT standard, which ensures stable signal transmission even at high resolutions. This allows signal sources and displays to be placed flexibly without compromising image quality or signal stability.
Resolutions up to 3840 x 2160 @ 60 Hz are supported with a maximum data rate of 18 Gb/s. This makes the extender suitable for modern 4K content, including HDR. In addition to video and audio, control and operating signals are also transmitted. IR and RS-232 interfaces enable remote control and integration into existing control and automation concepts.
The transmitter has an HDMI loop-out so that the signal can also be output locally. In addition to the HDMI output, the receiver also has an analogue stereo audio output. Transmission is via Cat.5e or Cat.6 network cables.
Technical features

Transmission medium: Network cable (CAT5e / CAT6)
Transmission standard: HDBaseT
Maximum transmission distance:
- up to 150 m with Full HD (1080p) via CAT6
- up to 120 m with 4K@60Hz
Transmission of control and operating signals: Infrared (IR) and RS-232
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–80 %, non-condensing

Video / Signal

HDMI standard: HDMI 2.0b
HDCP: Version 2.2
Maximum resolution: 3840 × 2160 @ 60 Hz (4:4:4)
Maximum data rate: 18 Gb/s
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Colour depth: 8 bits, 10 bits or 12 bits

Audio
Supported formats:

LPCM 2.0 / 5.1 / 7.1
Dolby Digital, Dolby Digital Plus, Dolby TrueHD
DTS, DTS-HD Master Audio
Analogue audio on receiver: Stereo (L/R)

Power supply (external)

Input: AC 100–240 V / 50–60 Hz
Output: DC 24.0 V / 1.0 A
Output power: max. 24.0 W
Average efficiency in operation (230 V / 50 Hz): 88.02%
Power consumption at zero load (230 V / 50 Hz): 0.08 W
Efficiency at low load (10%) (230 V / 50 Hz): 80.33%

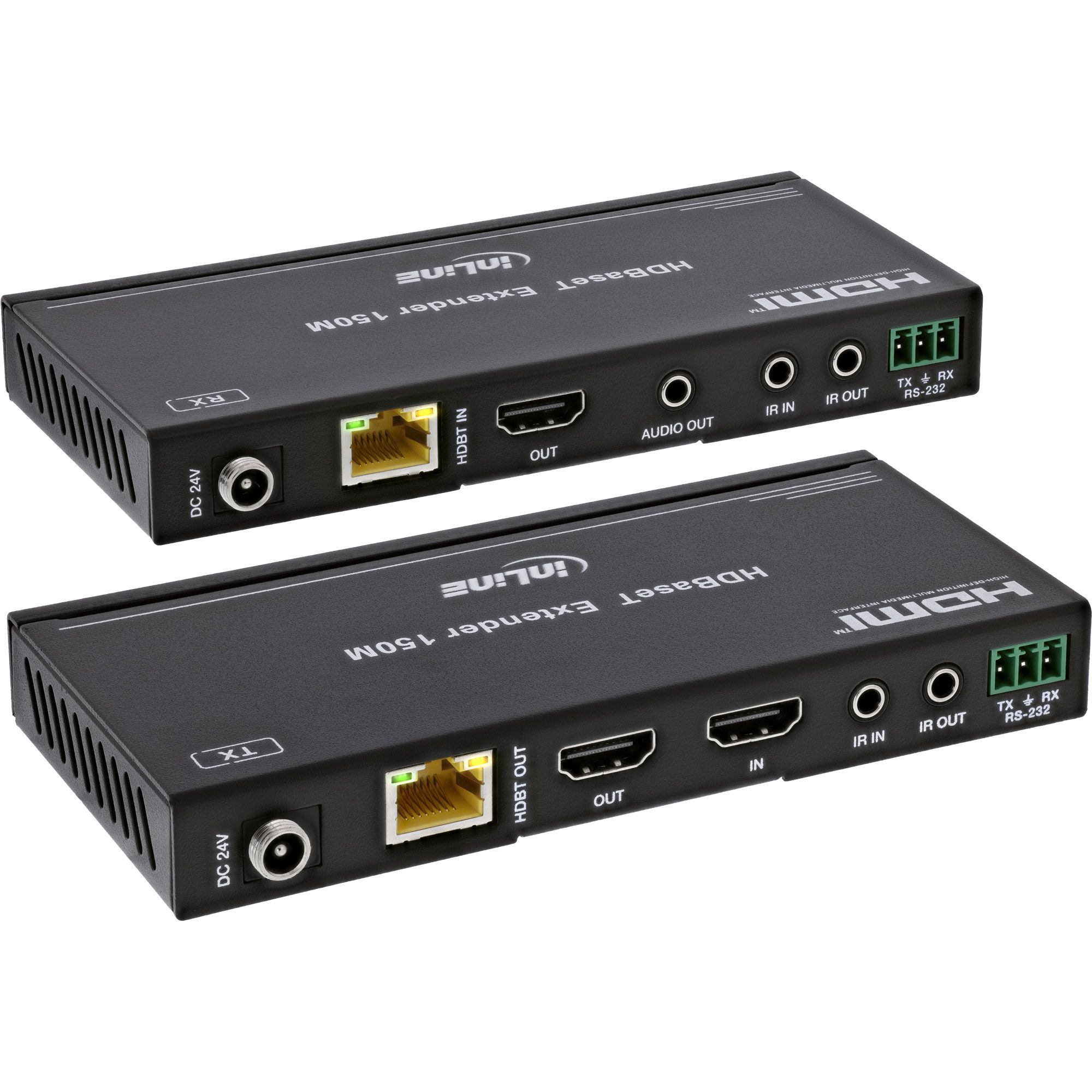

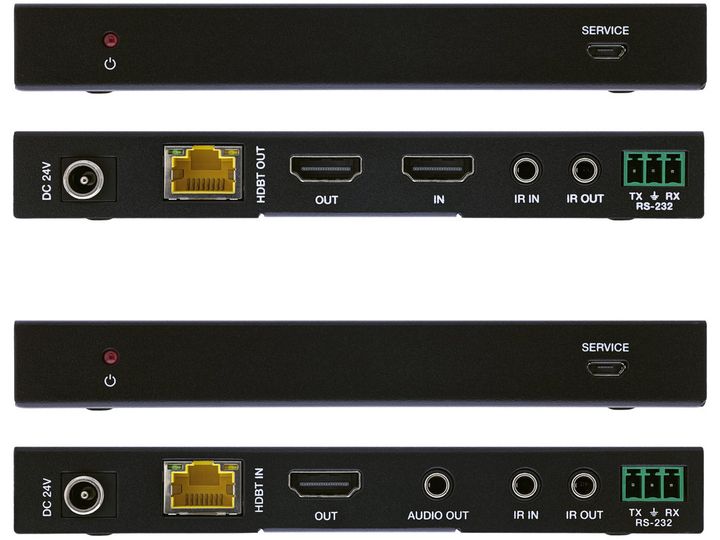

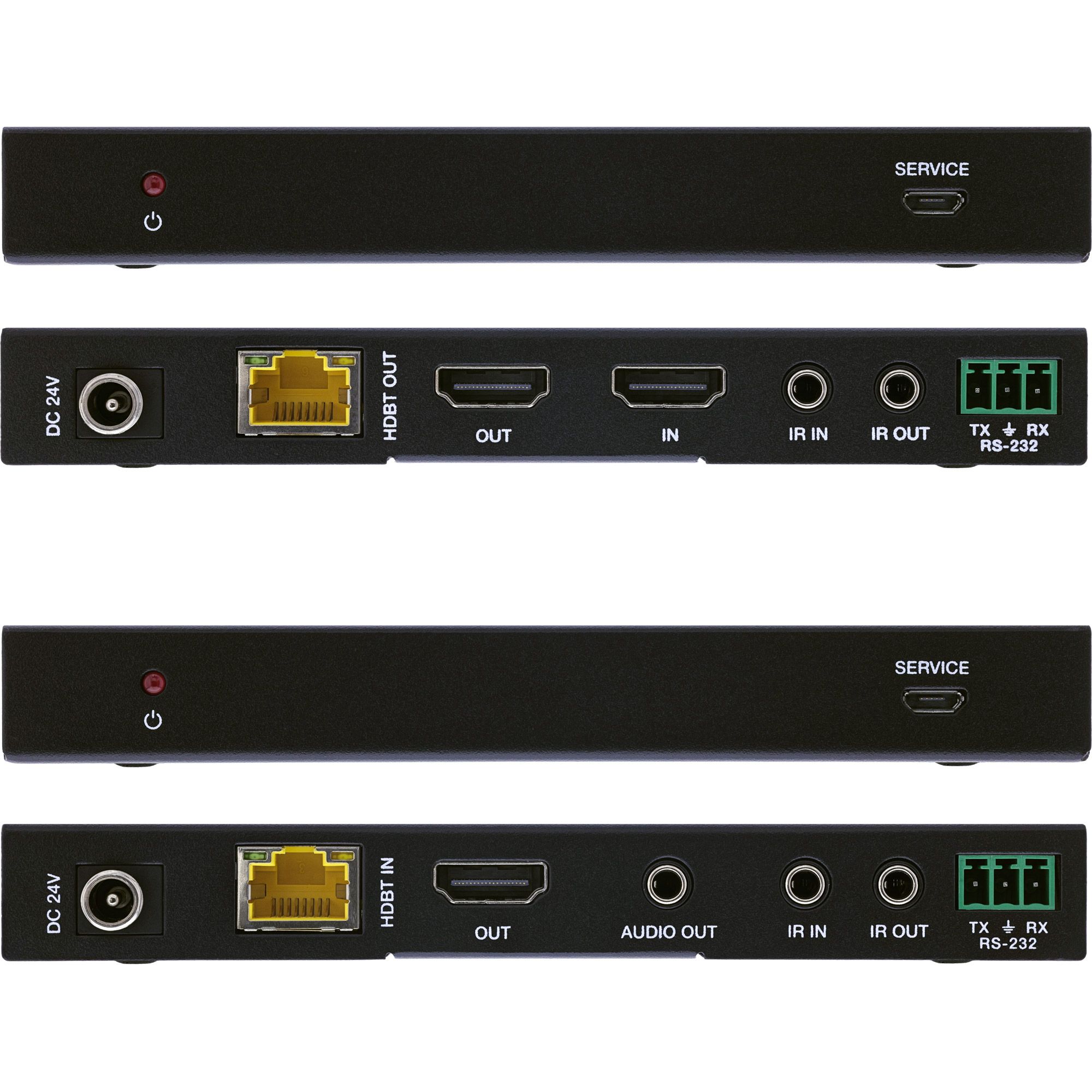

Connections
Transmitter

1 x HDMI input
1 x HDMI loop-out for local image output
1 x HDBaseT output (RJ45)
1 x IR input (3.5 mm jack) for receiving remote control signals
1 x IR output (3.5 mm jack) for transmitting remote control signals to the source device
1 x RS-232 connection (3-pin screw terminal connector)
1 x USB service connection
1 x DC 24 V power supply

Receiver

1 x HDBaseT input (RJ45)
1 x HDMI output
1 x 3.5 mm audio output
1 x IR input (3.5 mm jack) for receiving remote control signals at the display location
1 x IR output (3.5 mm jack) for transmitting remote control signals to the display device
1 x RS-232 connection (3-pin screw terminal connector)
1 x USB service connection
1 x DC 24 V power supply

Scope of delivery

1 x HDMI HDBaseT extender – transmitter
1 x HDMI HDBaseT extender – receiver

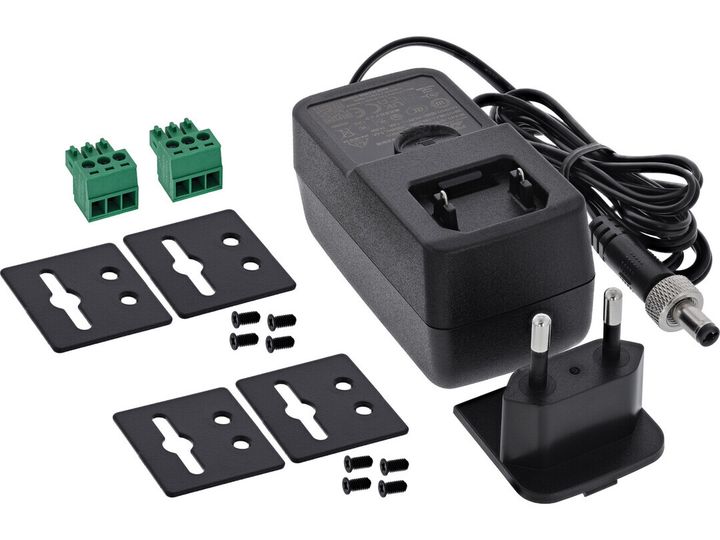

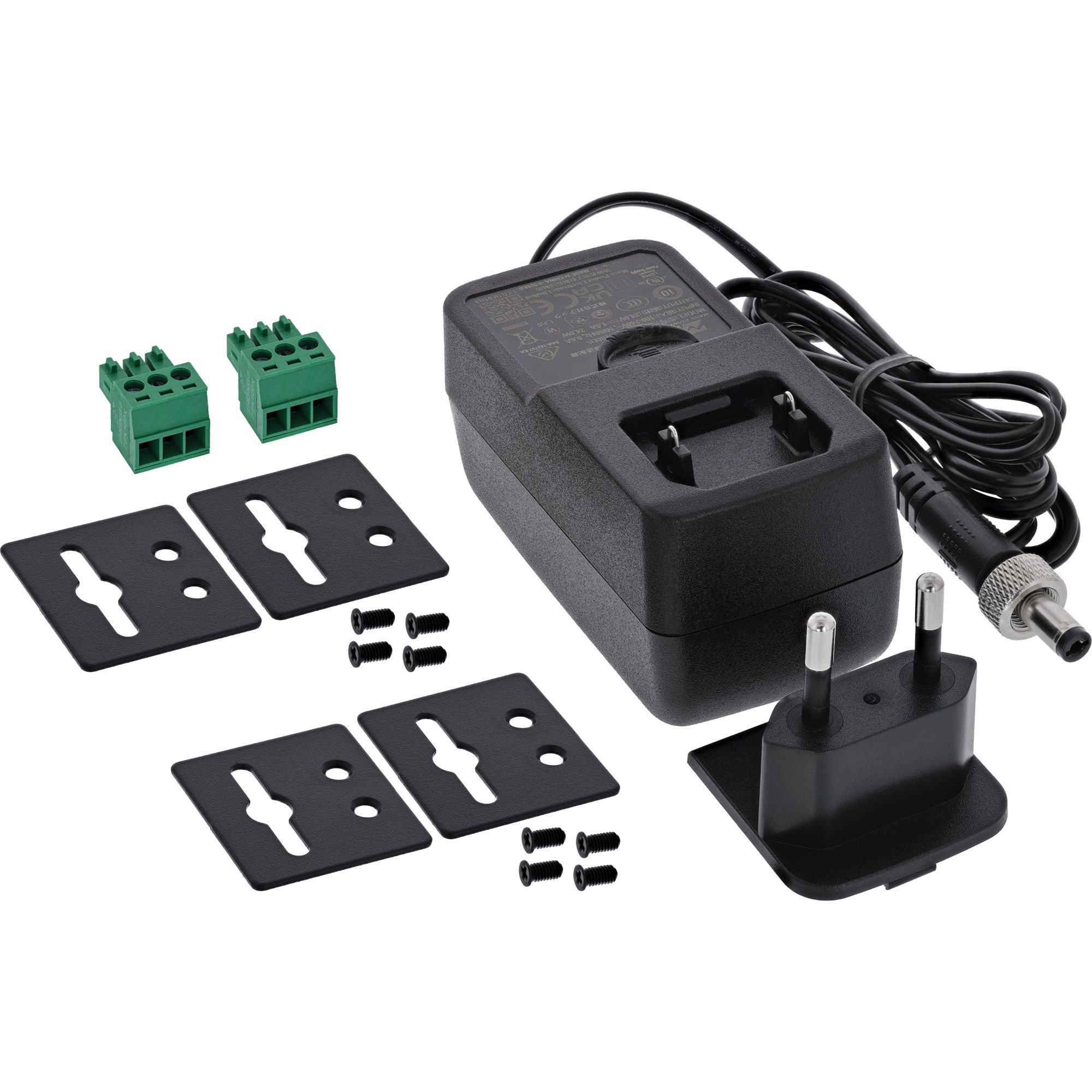

1 x power supply unit (DC 24 V / 1 A, lockable)

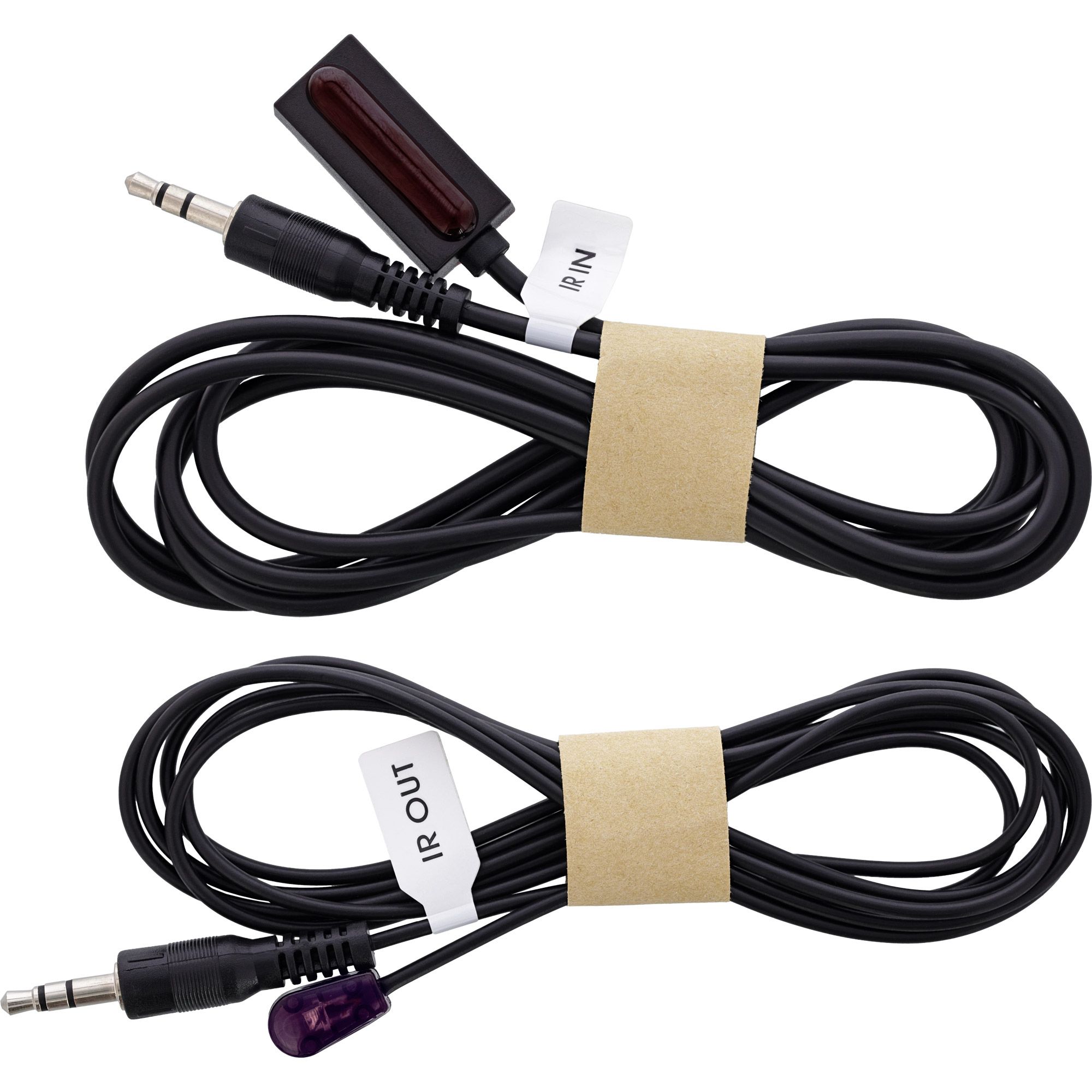

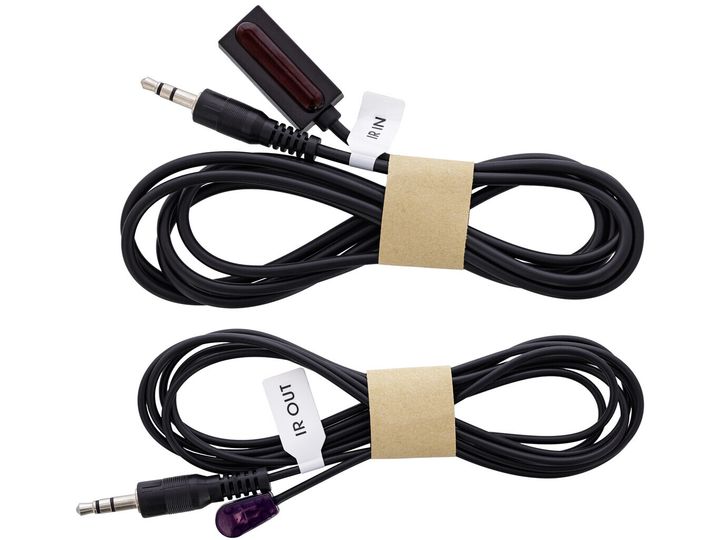

1 x IR receiver cable (approx. 1.5 m)
1 x IR transmitter cable (approx. 1.5 m)
4 x mounting brackets
2 x 3-pin screw terminal connectors (RS-232)
1 x operating instructions in German/English
