Extend USB 2.0 over IP networks:Enables the transmission of USB 2.0 signals at up to 480 Mb/s over a gigabit network and flexibly integrates USB devices into existing IP infrastructures.
Flexible network connection via RJ45 or SFP:Supports both copper connections via Gigabit Ethernet and fibre optic connections via SFP, allowing for customisable installation concepts.
Switchable host or device mode:A device can be operated as a host or device via a device switch, increasing planning and deployment flexibility. Two identical devices are required for a complete connection.
PoE support for reduced cabling:Power can be supplied via Power over Ethernet in accordance with IEEE 802.3af or IEEE 802.3at. Alternatively, an external power supply unit is available.
Robust metal housing for professional installations:The sturdy housing and mounting brackets enable permanent and secure integration into technical racks or installation environments.

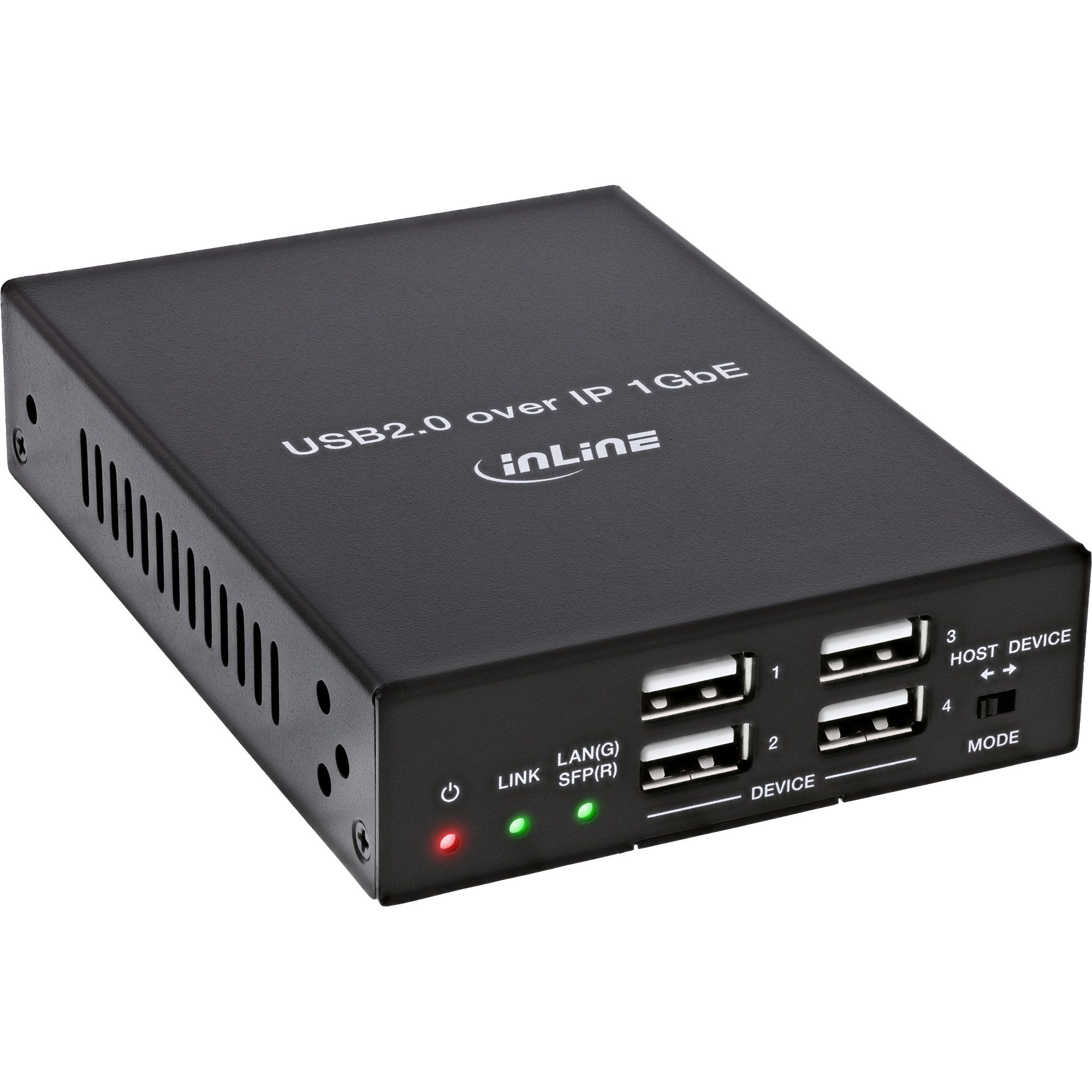

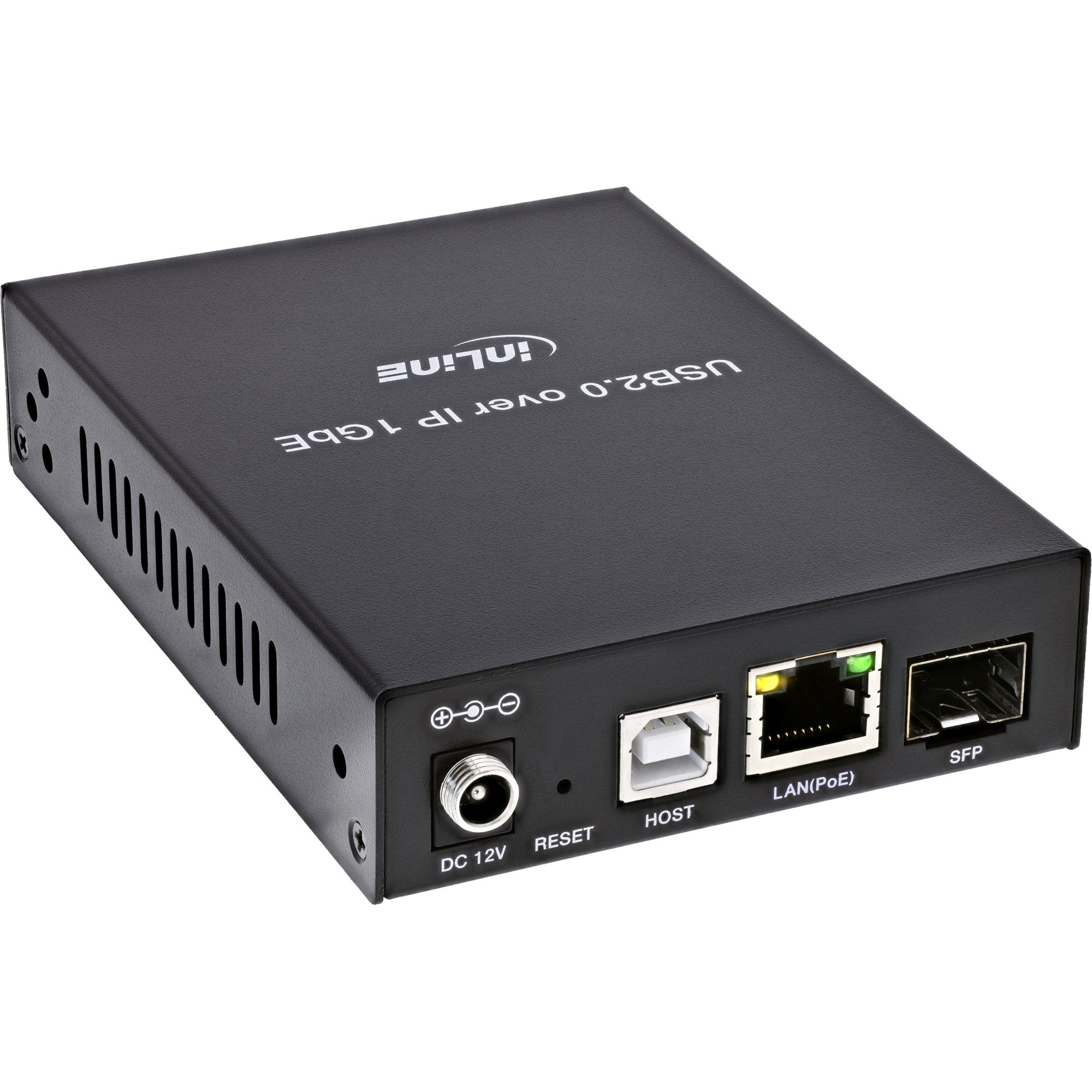

The InLine® USB 2.0 Host/Device Extender over IP is a system component for extending USB 2.0 signals over an IP-based Gigabit network. Signal transmission is either via an RJ45 copper connection or via fibre optic cable using an SFP port, allowing flexible integration into existing network structures.

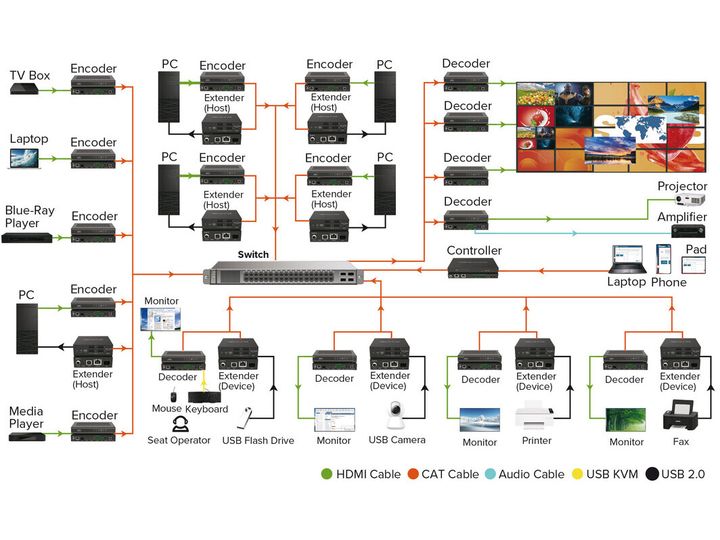

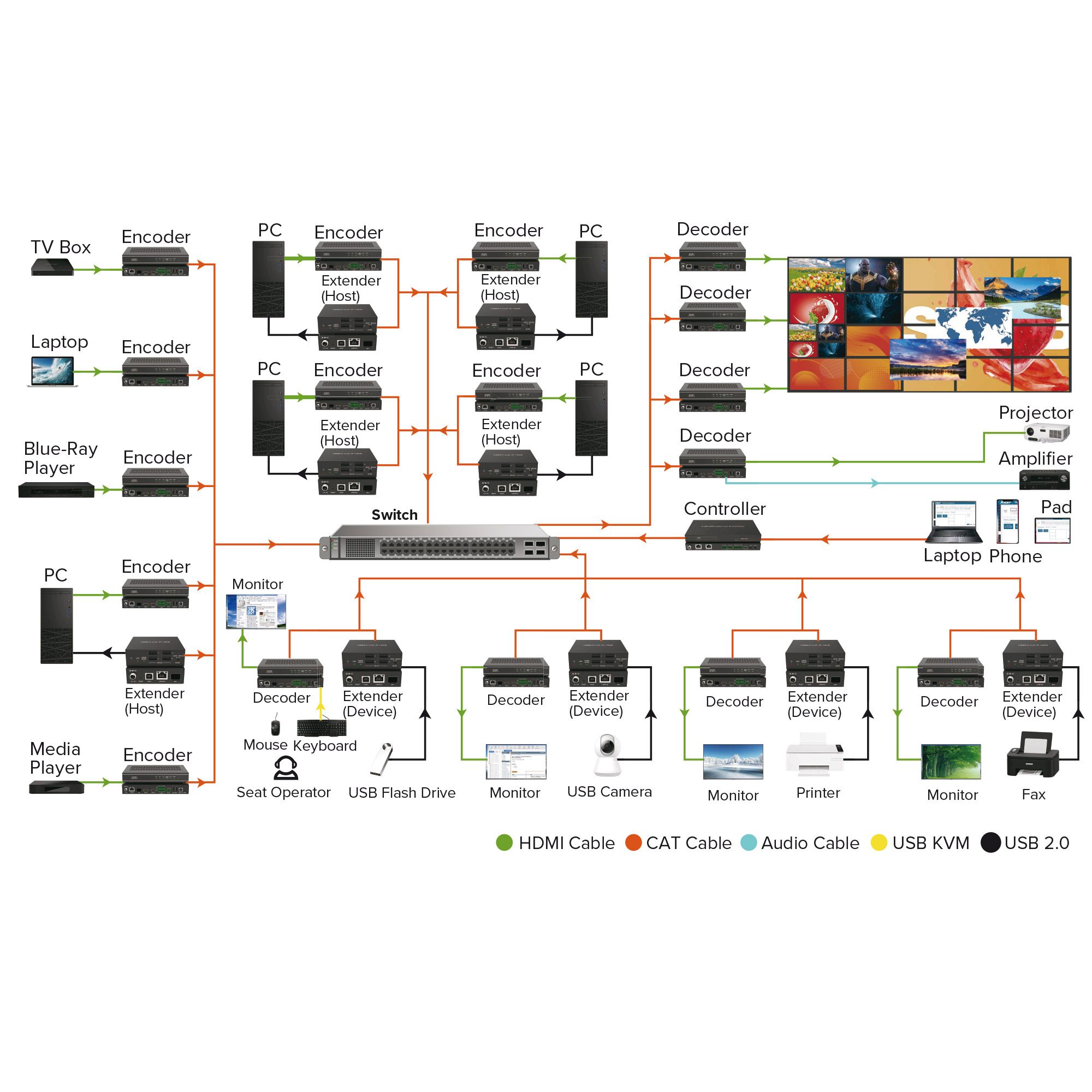

The device is operated as a single unit and is not designed as a preconfigured set. Two identical devices are required for a complete USB connection. One device operates in host mode and is connected to a computer. The second device is operated in device mode and establishes the connection to USB end devices.
With a maximum data rate of up to 480 Mb/s, the transmission complies with the USB 2.0 standard. Distances of up to 100 m are possible via copper cables when using suitable network cables such as Cat.6, Cat.6A or Cat.7.
The power supply can be flexible. In addition to the supplied external power supply, the device supports Power over Ethernet in PD mode in accordance with IEEE 802.3af and IEEE 802.3at. When used simultaneously, the external power supply takes priority.
The metal housing ensures stability in continuous operation. The supplied mounting brackets enable secure attachment in various installation environments. This makes the extender suitable for structured network infrastructures where USB interfaces need to be reliably integrated over long distances.
Technical features

USB standard: USB 2.0
Maximum data rate: up to 480 Mb/s
Operating modes: Host mode or device mode, switchable via device switch

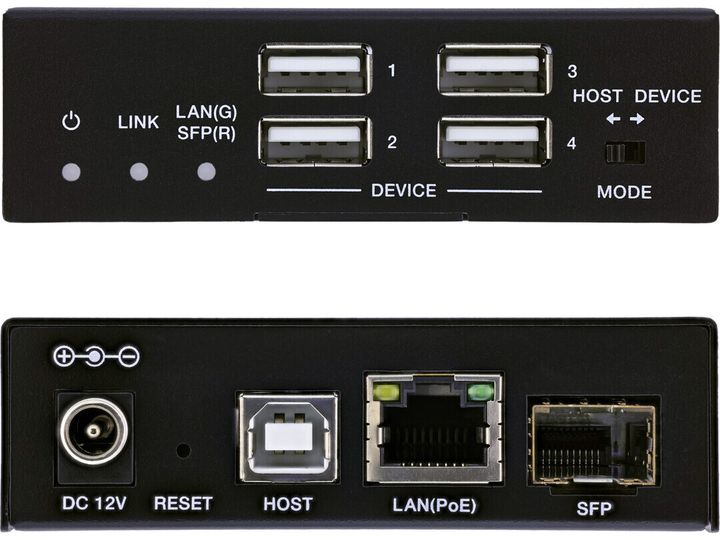

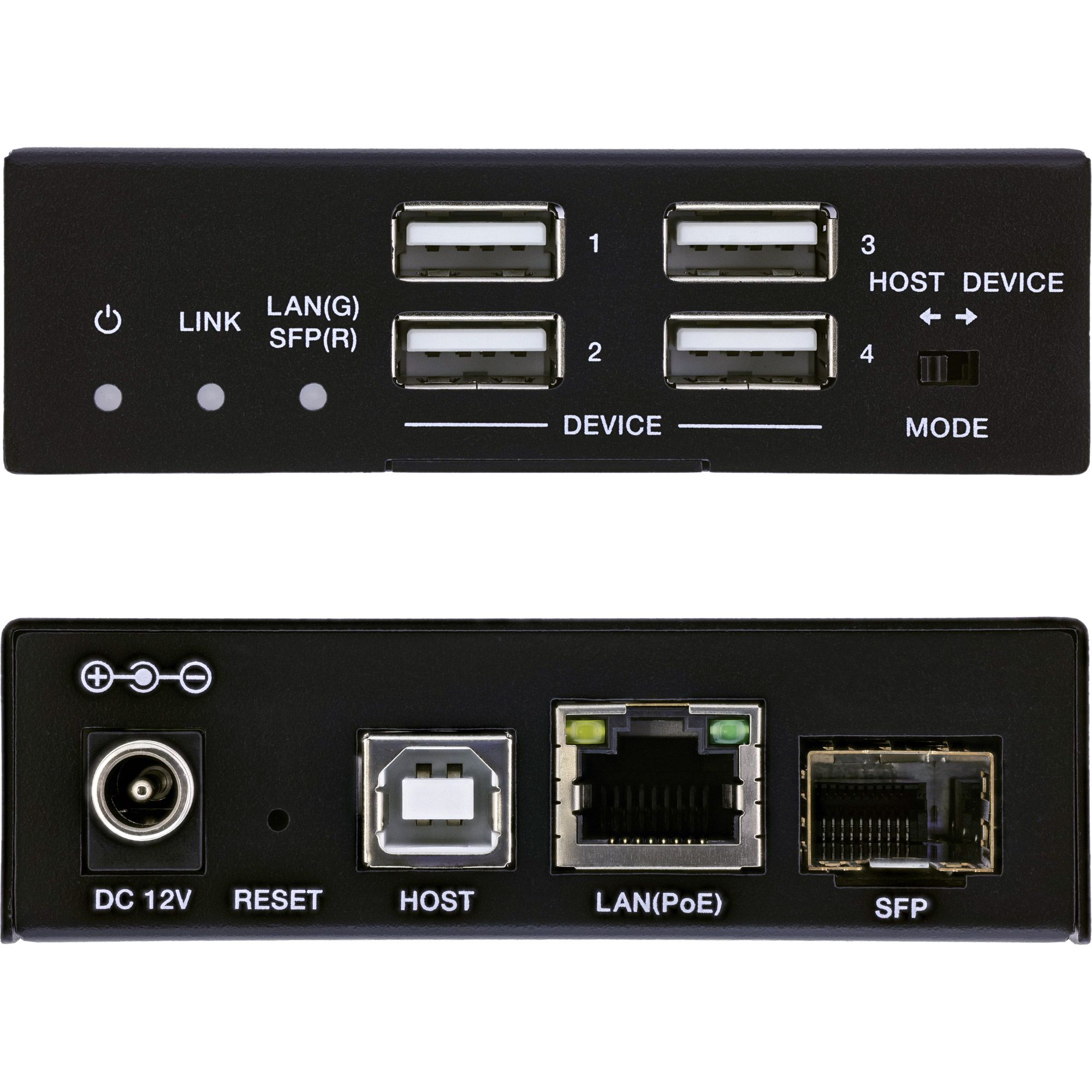

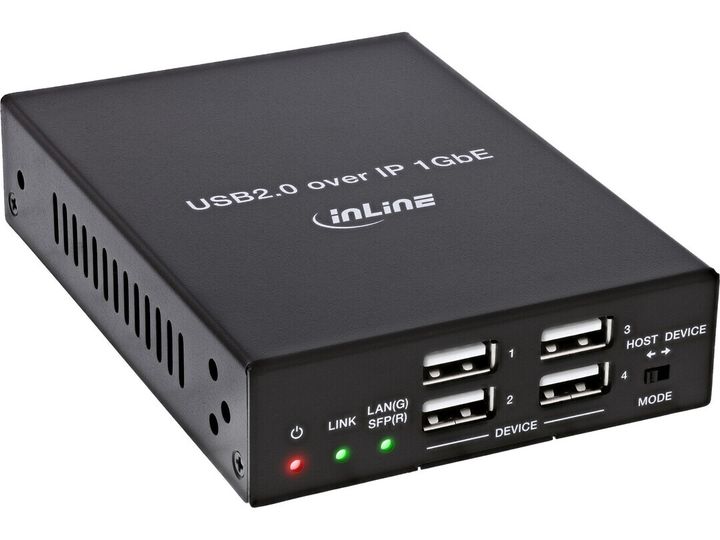

USB ports:
- 1 x USB-B (host)
- 4 x USB-A (device)

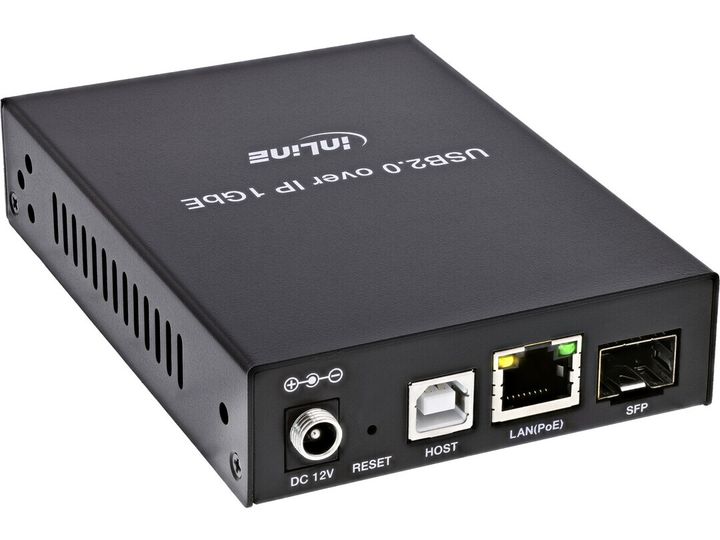

Network interfaces:
- 1 x Gigabit Ethernet (RJ45, PoE-capable)
- 1 x Gigabit SFP port (fibre optic)
PoE support: Power supply via network switch (PD mode), compatible with IEEE 802.3af / IEEE 802.3at
Maximum transmission distance: up to 100 m via copper (CAT6 / CAT6A / CAT7)
Housing material: metal
Colour: black
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–90%, non-condensing

Power supply
The device can be powered via an external power supply or via Power over Ethernet (PoE). When used simultaneously, the external power supply takes priority.

Input: AC 100–240 V / 50–60 Hz
Output: DC 12.0 V / 2.5 A
Output power: max. 30.0 W
Average operating efficiency (230 V / 50 Hz): 89.26%
Power consumption at zero load (230 V / 50 Hz): 0.06 W
Efficiency at low load (10%) (230 V / 50 Hz): 85.60%

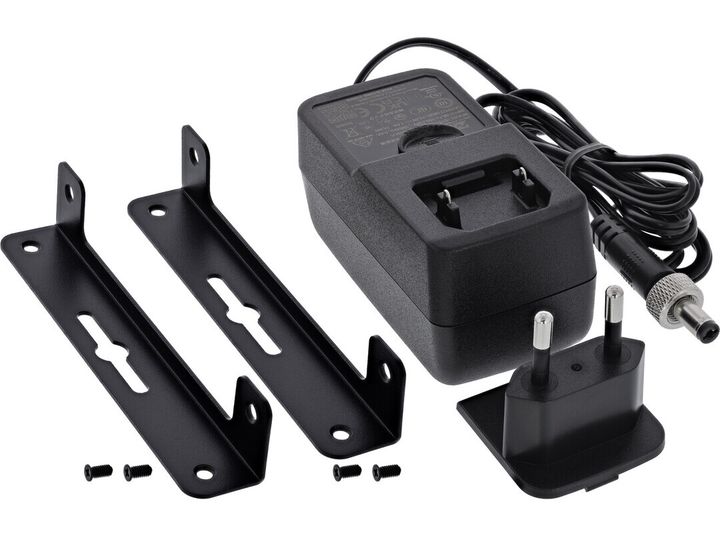

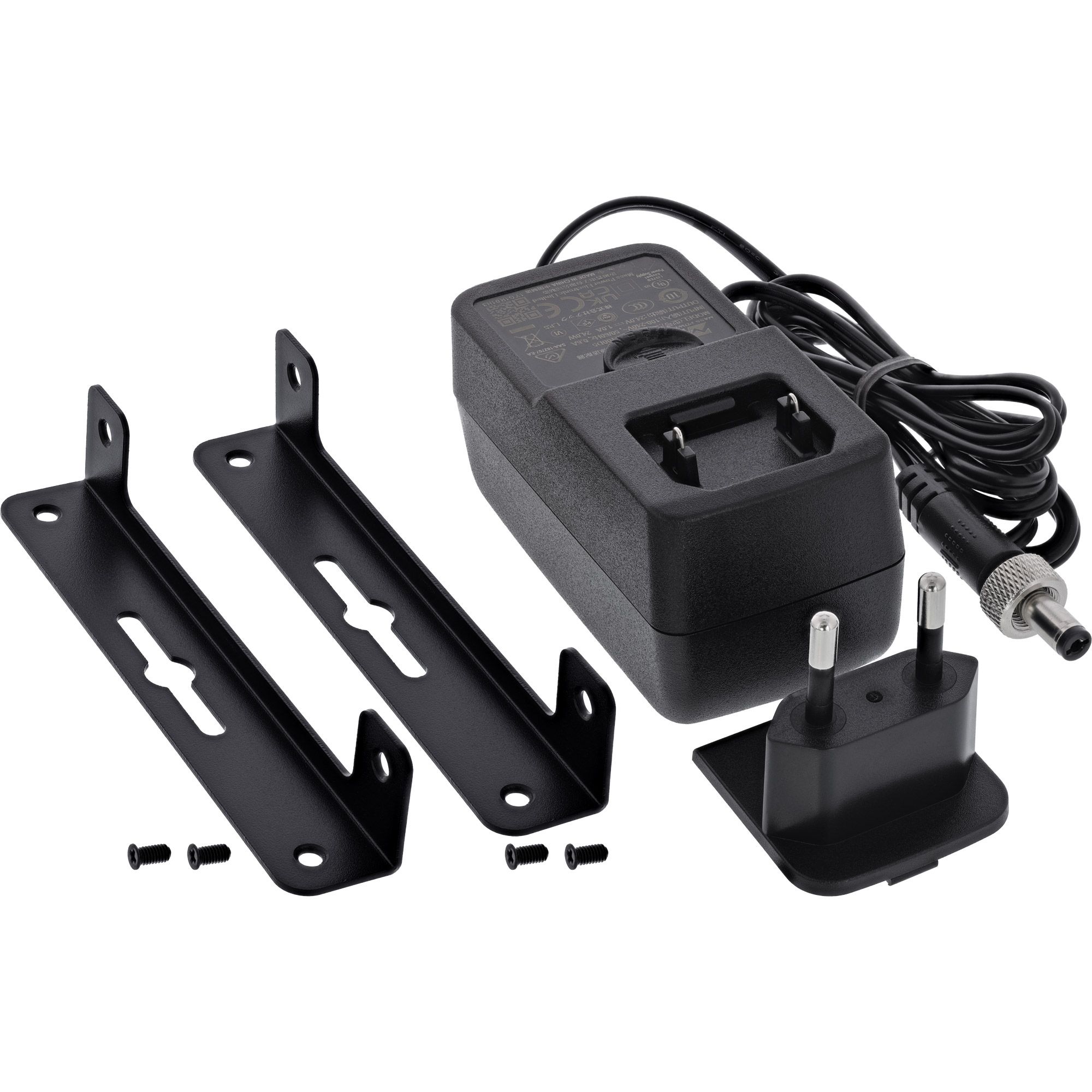

Scope of delivery

1 x USB 2.0 host/device extender over IP (single device)
1 x power supply unit (external, lockable)
2 x mounting brackets
4 x machine screws (M3 x 6)
1 x operating instructions (German/English)
