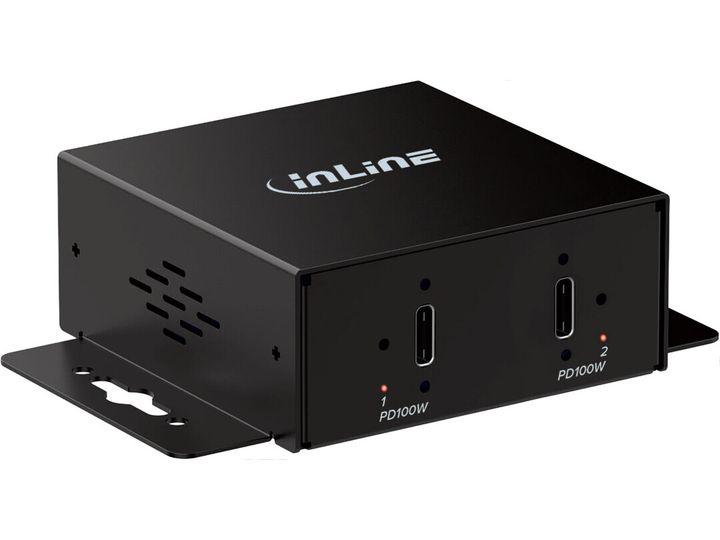

InLine 35396G

Industrial USB-C 2-port charger with 200 W for 12–24 V DC integration

Direct DC integration:Enables USB-C devices to be charged directly from 12–24 V DC power sources without an additional power supply unit.
High charging power up to 200 W:Powers two devices simultaneously with up to 100 W per port via USB Power Delivery 3.0.
Flexible connection options:Supports 5.5 x 2.5 mm DC barrel connectors and 2-pin terminal blocks for versatile installations.
Robust metal housing:Suitable for continuous use in demanding environments and technical systems.
Integrated protection mechanisms:Protects connected devices with overcurrent, overvoltage and ESD protection.

The InLine® Industry 2-Port Mini Charger offers a compact and powerful solution for powering USB-C devices via existing DC power sources. It operates within the 12–24 V DC range and allows direct integration into existing systems without additional voltage converters or external power supplies.
With a total output of up to 200 W, the device provides sufficient power for two USB-C devices operating in parallel. Each port supports USB Power Delivery 3.0 with up to 100 W, offering flexible charging options for different power requirements. Common fast-charging protocols are also supported.
The combination of a DC barrel connector and a 2-pole terminal block allows for flexible integration into various installation environments. The robust metal housing supports use under extended temperature conditions and in technically demanding applications.
Integrated protection functions ensure safe operation. These include overcurrent protection, overvoltage protection and ESD protection. The device is designed exclusively for power supply and does not support data transmission.
Technical Specifications
Interfaces

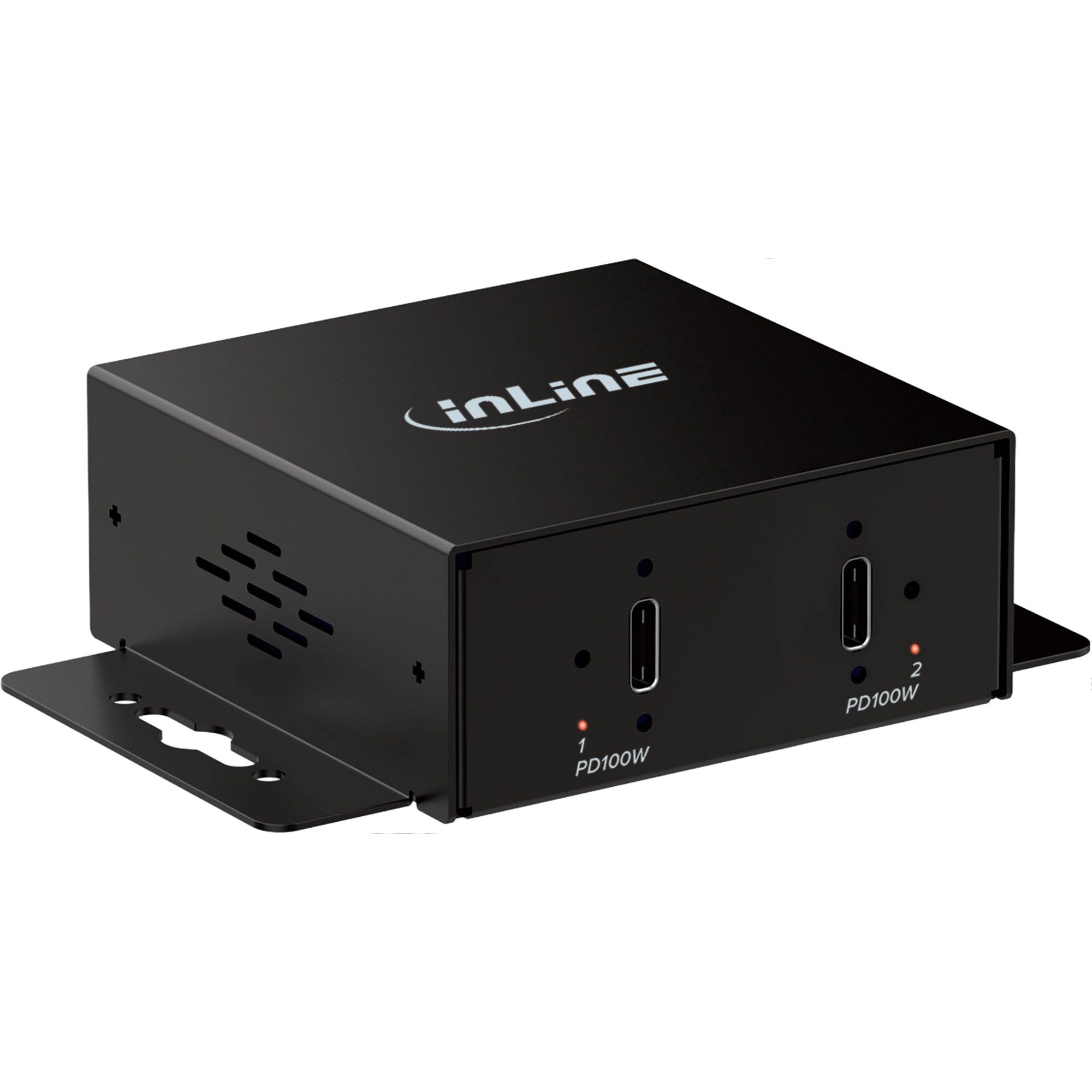

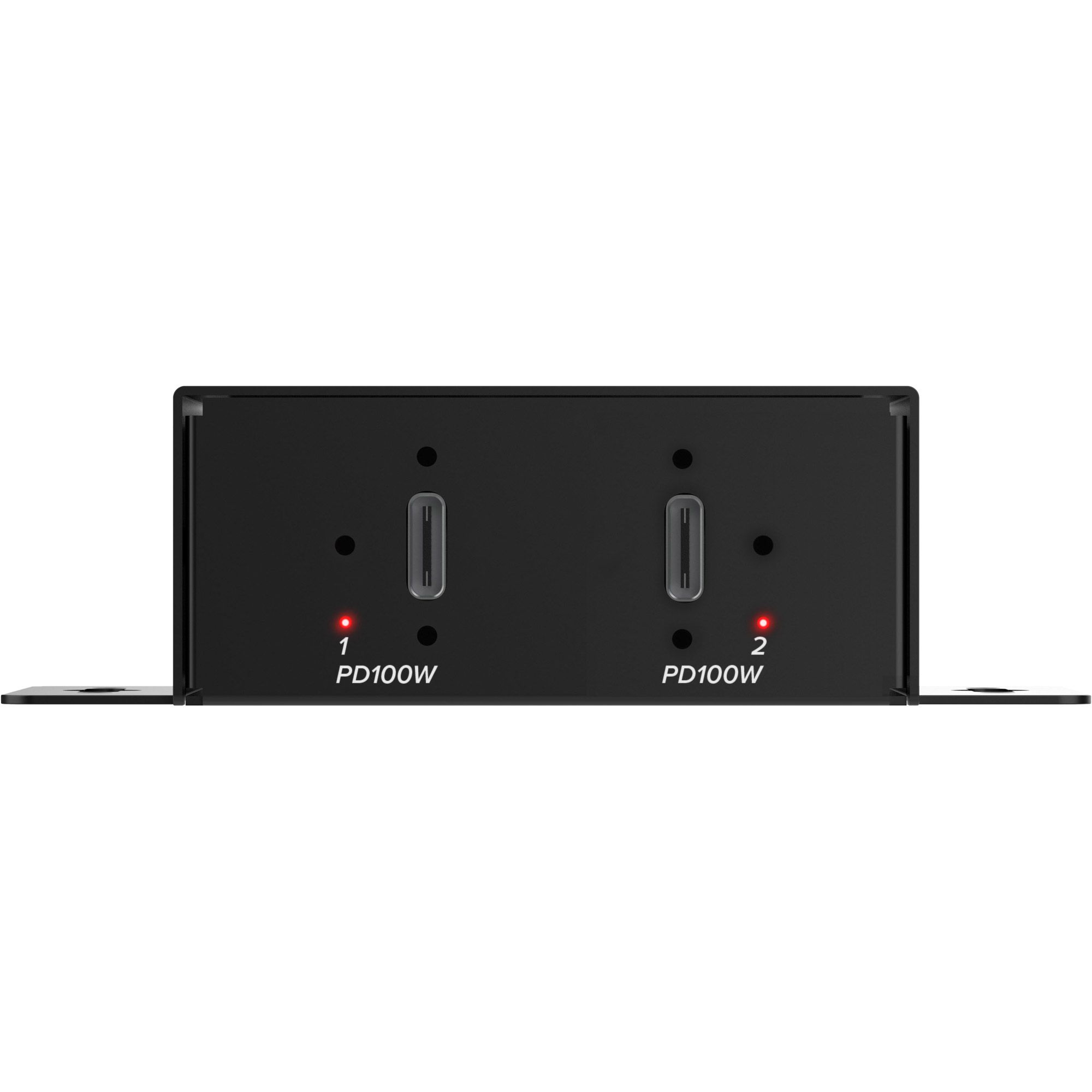

2x USB-C (charging ports)

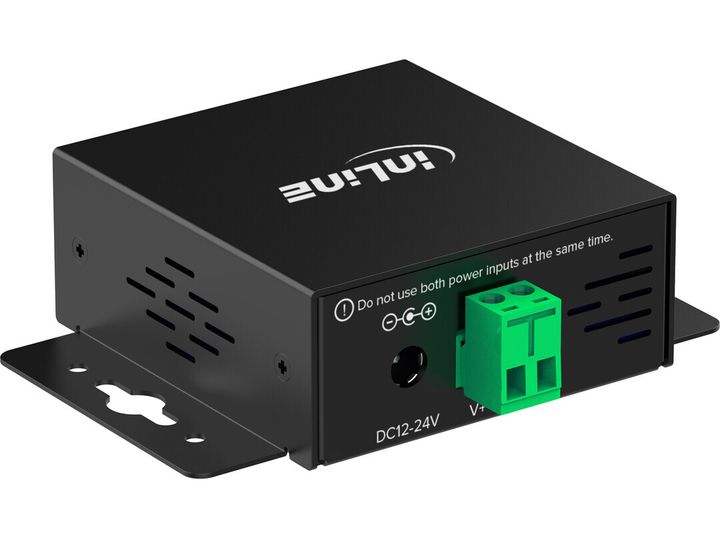

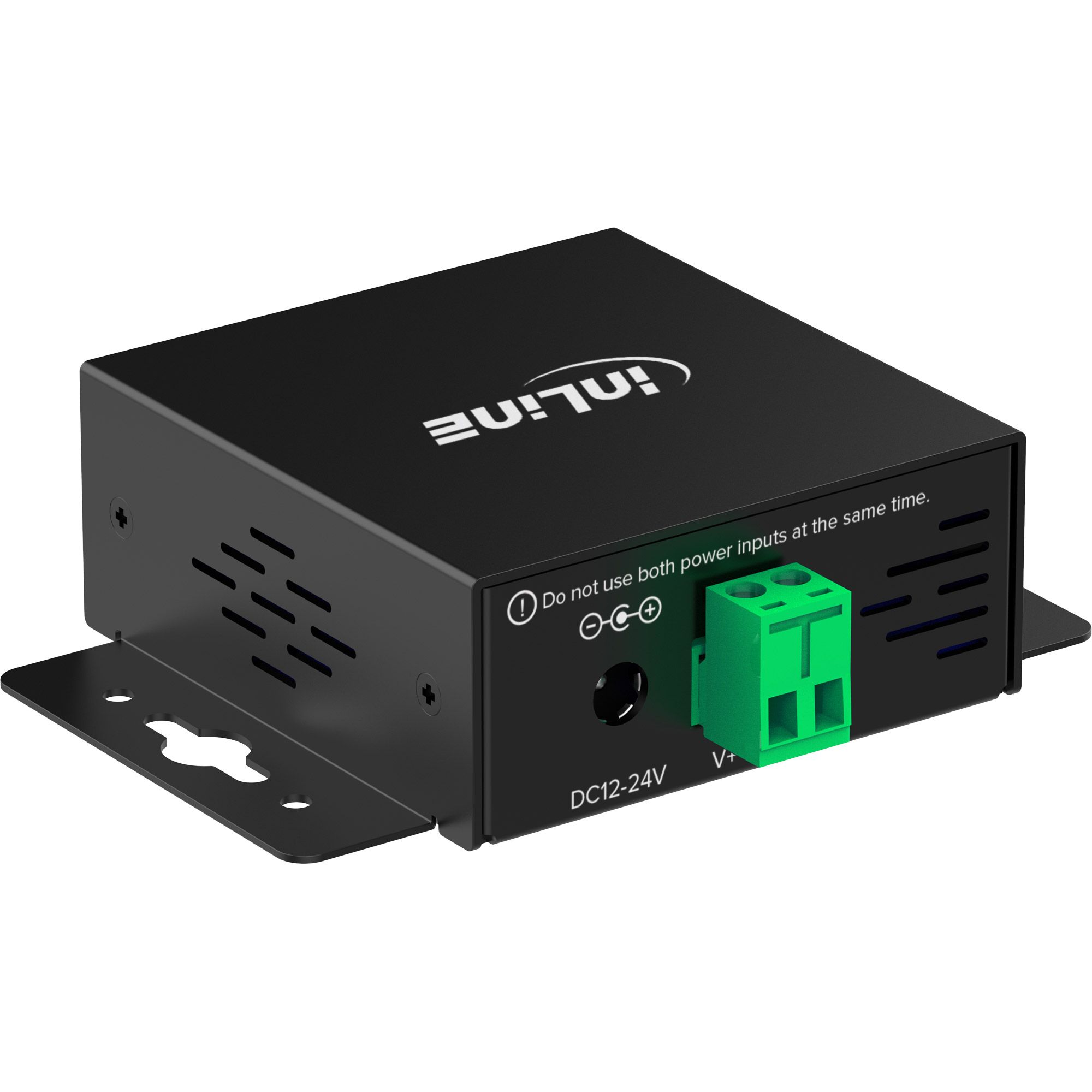

1x DC input (5.5 x 2.5 mm)
1x 2-pin terminal block

Data transmission

No data transmission, charging function only

Power supply

Input voltage: 12–24 V DC (recommended)
Minimum: 10.5 V DC
Maximum: 28 V DC (do not exceed)
Maximum total power: 200 W
USB-C1: up to 100 W (PD 3.0, up to 20 V / 5 A)
USB-C2: up to 100 W (PD 3.0, up to 20 V / 5 A)
Note:The item is supplied without a power supply unit. A 24 V 10 A power supply unit is recommended. Alternatively, power supply units with a DC plug (5.5 x 2.5 mm) in the range of 12 V to 24 V can be used.
Note:The power source used must be capable of providing a higher power output than the sum of the connected loads to ensure stable operation.

Protection functions

Overcurrent protection
Overvoltage protection
ESD protection

Compatibility / Charging protocols and power profiles

USB-C1 (up to 100 W):
USB Power Delivery 3.0 (PD3.0):

5 V / 3 A
9 V / 3 A
12 V / 3 A
15 V / 3 A
20 V / 5 A
PPS (Programmable Power Supply): 3.3–21 V
Supported protocols: QC4+, SCP, AFC, FCP, Apple 2.4A, BC1.2

USB-C2 (up to 100 W):
USB Power Delivery 3.0 (PD3.0):

5 V / 3 A
9 V / 3 A
12 V / 3 A
15 V / 3 A
20 V / 5 A
PPS (Programmable Power Supply): 3.3–21 V
Supported protocols: QC4+, SCP, AFC, FCP, Apple 2.4A, BC1.2

Housing

Metal housing

Environmental conditions

Operating temperature: -20 °C to +70 °C
Storage temperature: 0 °C to +60 °C
Humidity: 10–85% (non-condensing)

Contents

1x InLine® Industrial 2-Port Mini Charger, USB-C, PD 200 W

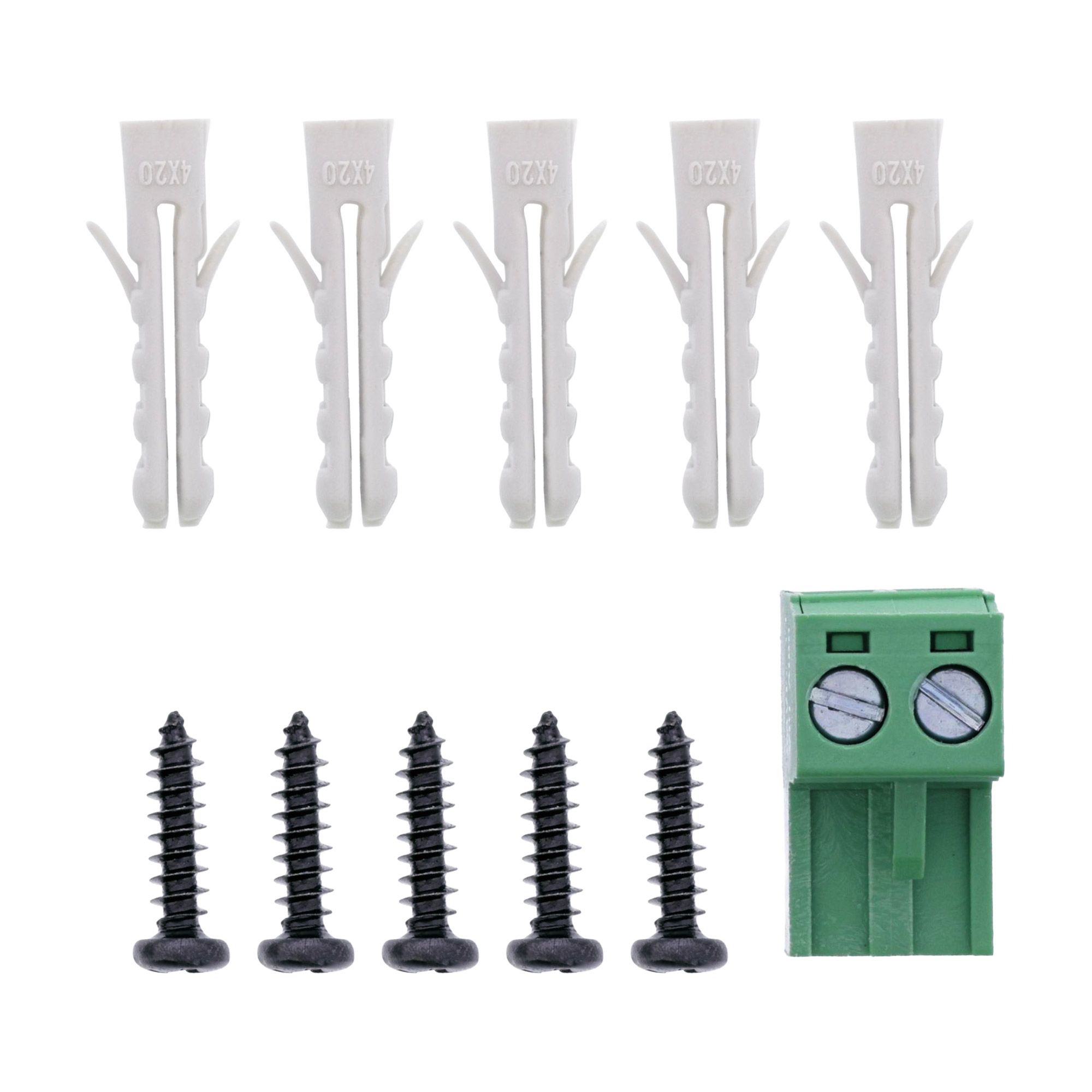

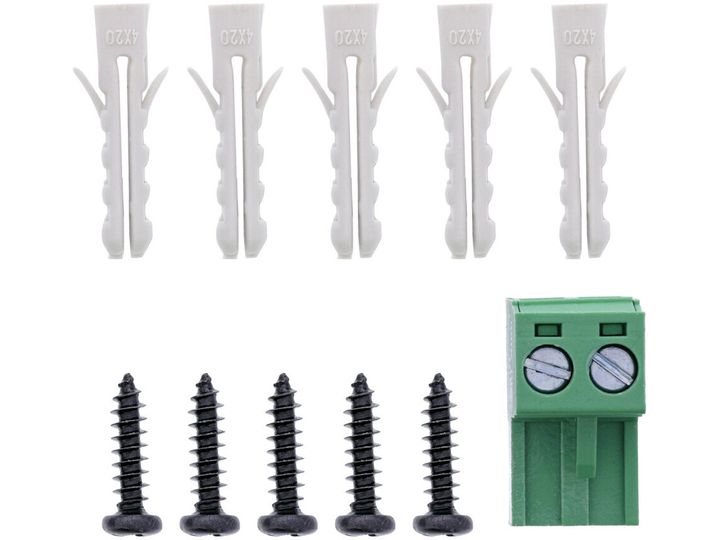

1x Mounting kit
1x Terminal block
1x User manual (German / English)
