Chief FRA, Sort, 56,7 kg, 400 x 400 mm, 90 - 360°, Fusion STMS1U, MTMS1U, MSM1U, MFAUB, MPAUB, Connexsys LVS1U, LVS1UP, TAA
Varenr.: [3623623] | Producent: Chief | Model-nr.: FRA | EAN: 0841872169910
Fjernlager (14-21 hverdage)
Varen er på fjernlager, leveringstiden er 14-21 hverdage. Mere info
Leveringsmuligheder - Vælges ved checkout
Instabox - Pakkeboks
Fri fragt
GLS - Pakkeshop
Fri fragt
GLS - Levering til hoveddøren
59,00
Afhentning i vores Pick-up point i Ringsted
Fri fragt
Vis alle leveringsmuligheder (4)
DKK
2.791,00
ex. moms 2.232,80
Total inkl. fragt
2.791,00
Tilføj til liste
Funktionen kræver at man er logget ind. Opret en bruger og brug vores smarte liste system til at holde styr på fremtidige indkøb, faste indkøb eller ønskelister.
Send på mail
The Freestyle Rotation Adapter allows designers to generate an extremely wide variety of video display wall configurations using either ConnexSys™ or Fusion® mounts.

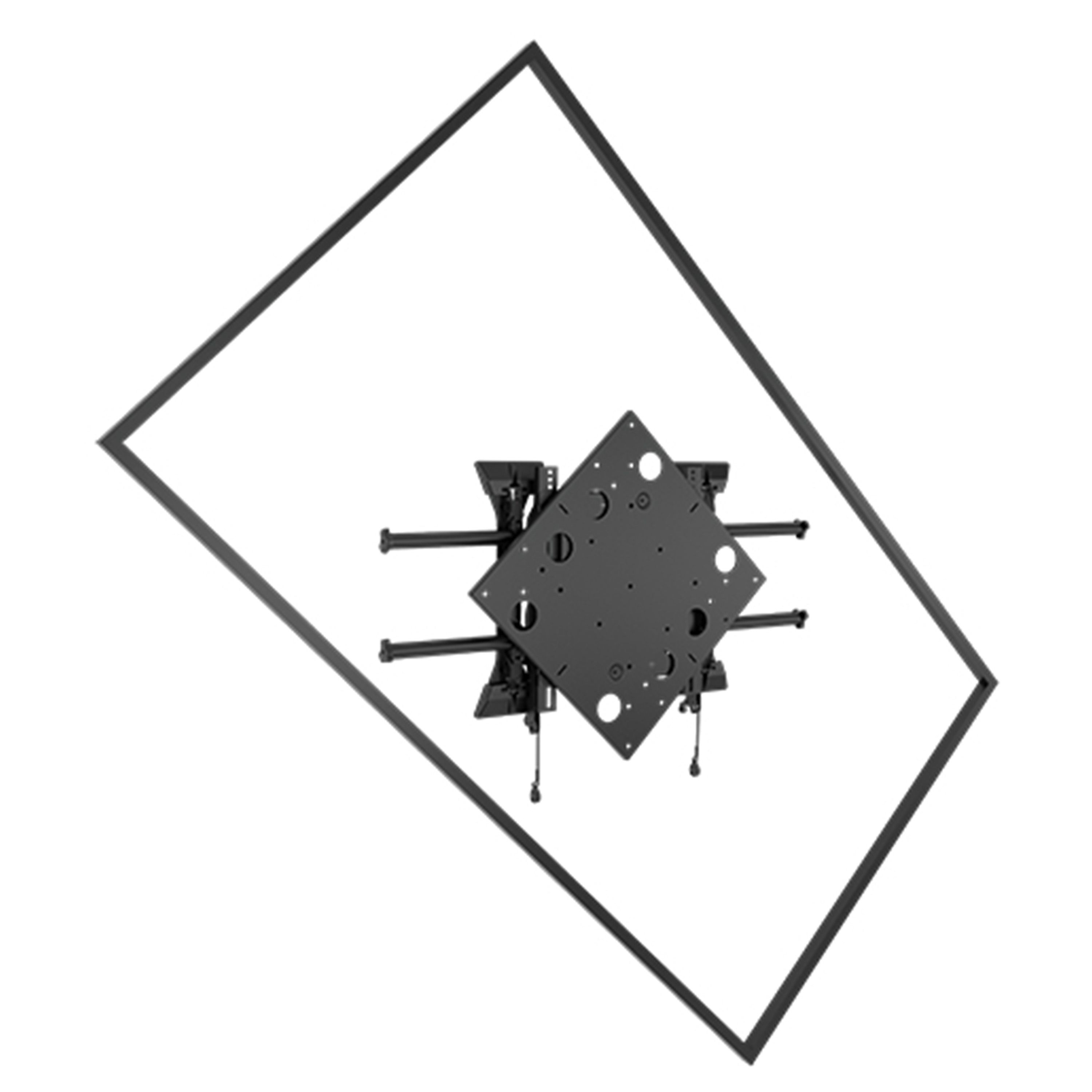

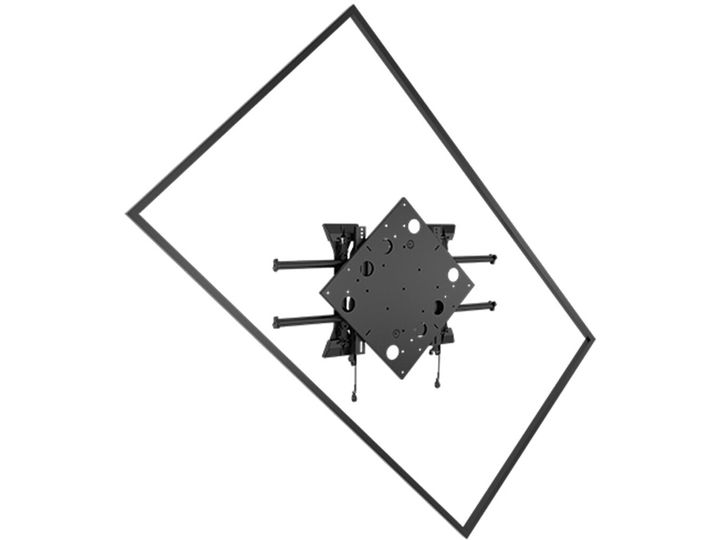

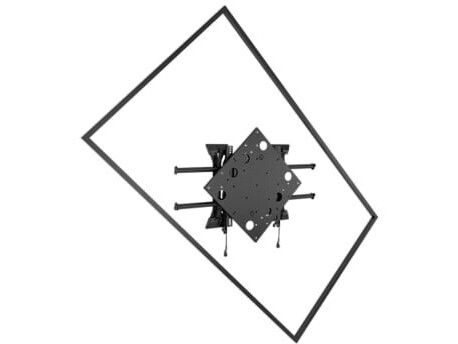

FRA shown in picture with Fusion® mount.
Note: Please see the selection guide in the Resources tab to ensure visual coverage of mount at all angles.
Mounting pattern can be 600 x 400 if using FHB5036 for M6 screws or FHB5037 for M8 screws.
Positive lockouts at 15 degree increments
Provides 90 degrees of rotation for 360 degrees of range

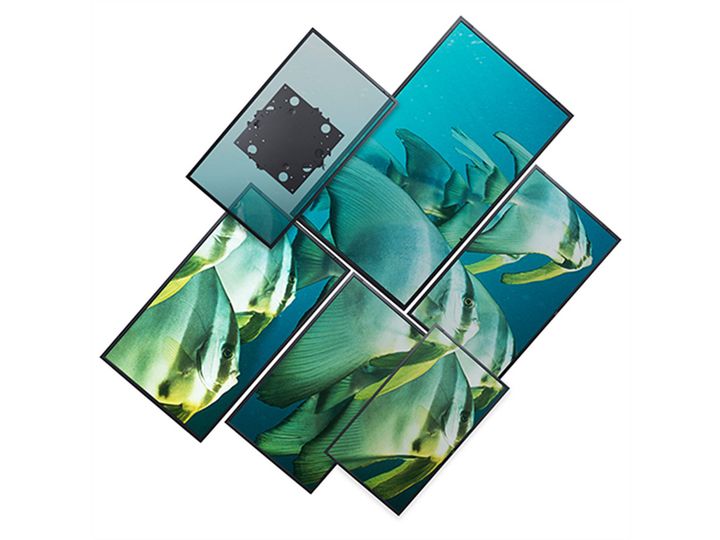

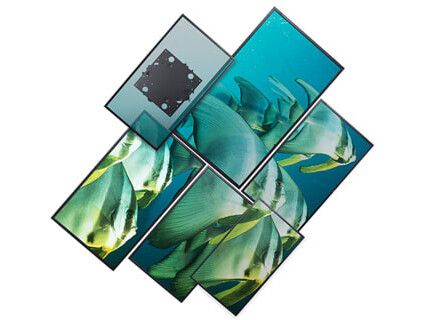

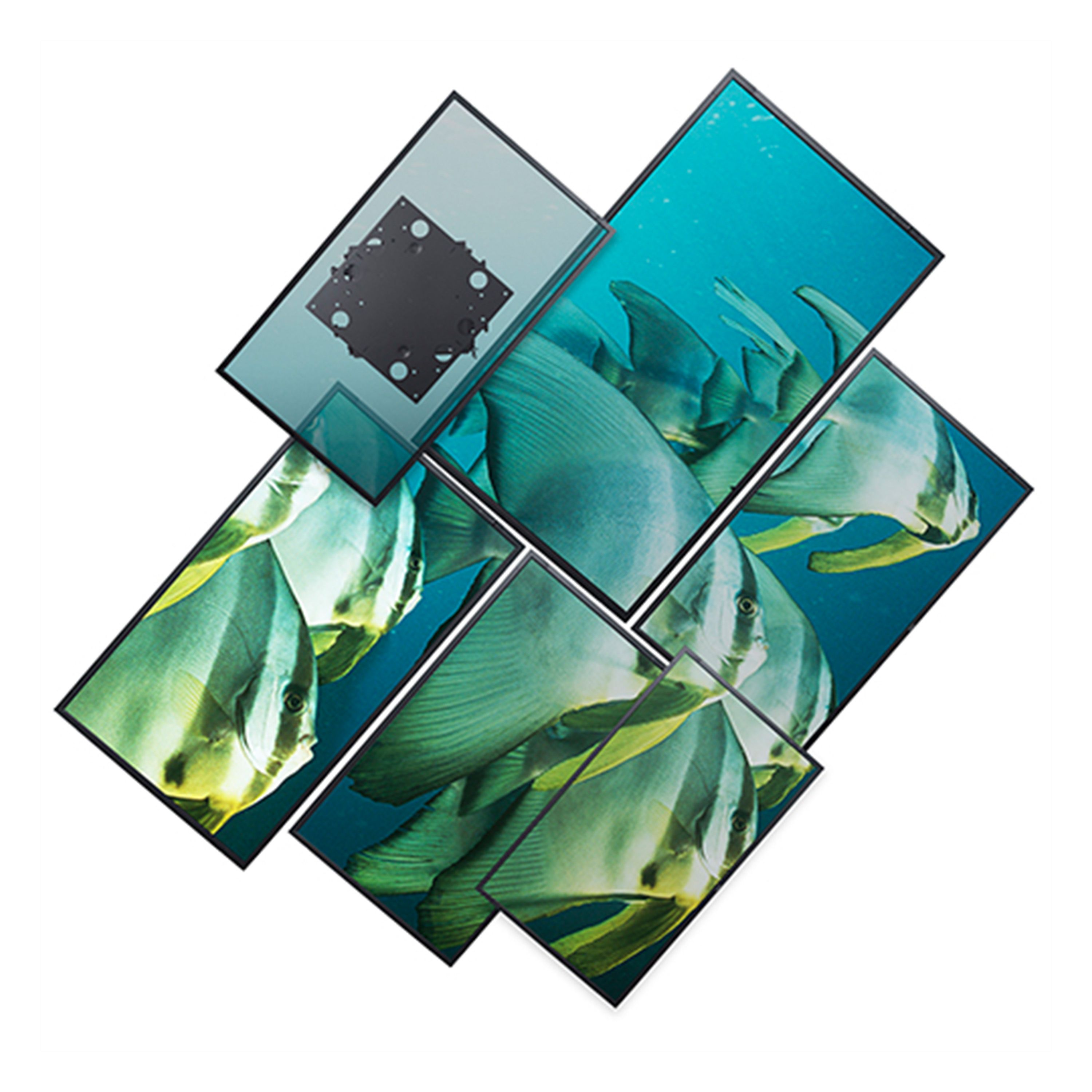

Overlapping displays (with Fusion® FCADA) adds another level of customization and creativity
Micro-adjustment (with ConnexSys™)
Weight capacity when used with ConnexSys™: 125 lbs (56.7 kg)
Weight capacity when used with STMS1U, MTMS1U: 55 lbs (24.95 kg)
Use with Fusion® wall, ceiling and freestanding mounts
Positive lockouts at 15 degree increments
Typical Screen Size: Greater than 40” (1016mm) using MTMS1U or STMS1U: 19” minimum display height at 45°. Greater than 55” using ConnexSys: 27” minimum display height at 45°
FRA shown in picture with Fusion® mount.
Note: Please see the selection guide in the Resources tab to ensure visual coverage of mount at all angles.
Mounting pattern can be 600 x 400 if using FHB5036 for M6 screws or FHB5037 for M8 screws.
Positive lockouts at 15 degree increments
Provides 90 degrees of rotation for 360 degrees of range
Overlapping displays (with Fusion® FCADA) adds another level of customization and creativity
Micro-adjustment (with ConnexSys™)
Weight capacity when used with ConnexSys™: 125 lbs (56.7 kg)
Weight capacity when used with STMS1U, MTMS1U: 55 lbs (24.95 kg)
Use with Fusion® wall, ceiling and freestanding mounts
Positive lockouts at 15 degree increments
Typical Screen Size: Greater than 40” (1016mm) using MTMS1U or STMS1U: 19” minimum display height at 45°. Greater than 55” using ConnexSys: 27” minimum display height at 45°
