Honeywell temperaturføler HEL-serie HEL-705-U-0-12-00 -200 - +260 °C keramisk hus (HEL-705-U-0-12-00)
Varenr.: [4249851] | Producent: Honeywell | Model-nr.: HEL-705-U-0-12-00 | EAN: 2050000600678
Fjernlager (3-4 hverdage)
Varen er på fjernlager, leveringstiden er 3-4 hverdage. Mere info
Leveringsmuligheder - Vælges ved checkout
Instabox - Pakkeboks
39,00
GLS - Pakkeshop
39,00
DAO - Hjemmelevering om natten og i de tidlige morgentimer
Perfekt til arbejdsdage - Levering inden kl. 06:00 - Klar når du vågner
45,00
GLS - Levering til hoveddøren
59,00
Afhentning i vores Pick-up point i Ringsted
19,00
Vis alle leveringsmuligheder (5)
DKK
402,00
ex. moms 321,60
Total inkl. fragt
441,00
Funktionen kræver at man er logget ind. Opret en bruger og brug vores smarte liste system til at holde styr på fremtidige indkøb, faste indkøb eller ønskelister.
Opret bruger
Login
Opret bruger
Login
Send på mail

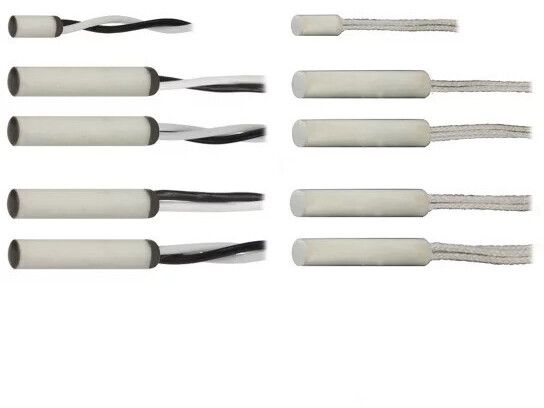

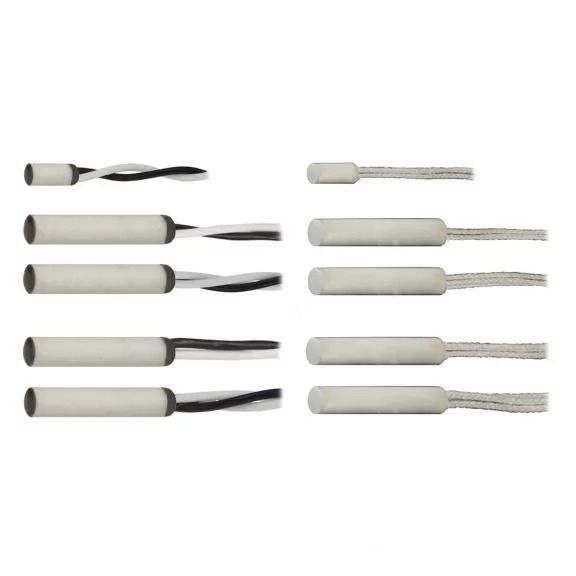

HEL 700 series Platinum RTD
Miniature Pt 1000 and Pt 100 ceramic-cased temperature probes.
PTFE or fibreglass wired output.
Linear output.
Honeywell PT1000 RTD Sensor, 2 Wire, 4.75mm Length - HEL-700 Series - HEL-705-U-0-12-00
Use this RTD (resistance temperature detector) from Honeywell to collect accurate temperature data during laboratory or industrial processes. This sensor is designed for reliability with recyclable PTFE (polytetrafluoroethylene) lead wires that are resistant to moisture and chemicals. This material also means the wires remain stable and continue functioning under radical variations in temperatures from -75°C to +540°C without degrading. At its core is a thin film of PT1000 platinum deposited on an alumina substrate that's largely responsible for sensing the temperature change. This device's fast response time of 0.15s and high repeatability make it a popular choice for applications that call for accurate readings at extreme temperatures.
Features & Benefits
Two-wire configuration for easy connection
Simple configuration is useful with high resistance sensors
Produces a resistance of 1000Ohms at 0°C, so it's suitable for applications where heat is applied at once
Applications
Machine building
Refrigeration equipment
Does this RTD sensor consume a lot of power?
No, it doesn't. This RTD sensor has a cable length of 305mm and a resistance of 1000Ohms. This means lower current flow and low power consumption.
