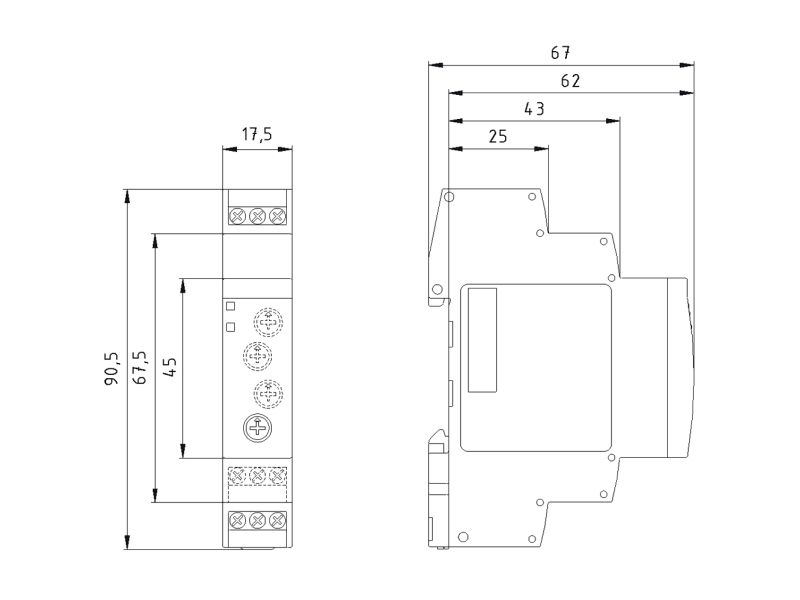

Siemens 7PV1518-1AW30, 21 mm, 94 mm, 83 mm, 64 g
FBAC4895-B52C-4E03-B099-A6A8F8B8017B Created with sketchtool. 706D6907-81E1-46A2-B8F9-7B702A1EF2C7 Created with sketchtool. 6A870209-E7F5-44F5-A66F-09E20C85A0DC Created with sketchtool. 0BB04D6C-A9AB-4913-BF4F-5A23954E68E1 Created with sketchtool. 501E26C7-66C1-4DAA-B740-6CFAF55A1B39 Created with sketchtool. C105F7D3-D5EE-43C9-9EE8-05CC42B296D4 Created with sketchtool. D94689D8-7CBB-41C8-AC06-F79D81FF82D5 Created with sketchtool. DA4C7ED9-2512-4D52-94F0-92800F2A6E04 Created with sketchtool. 42E133FD-828F-4CF4-A0BF-560014487A57 Created with sketchtool. F52D9745-4BFD-4506-BEEF-630FD09EF2D9 Created with sketchtool.
24/7 kundesupport | Få svar med det samme!
0
0
Image Search

DKK 0,00

(fragt pris: 0,00)

0
  1. EL Artikler
  2. Tavlemateriel
  3. Tidsrelæer & timer

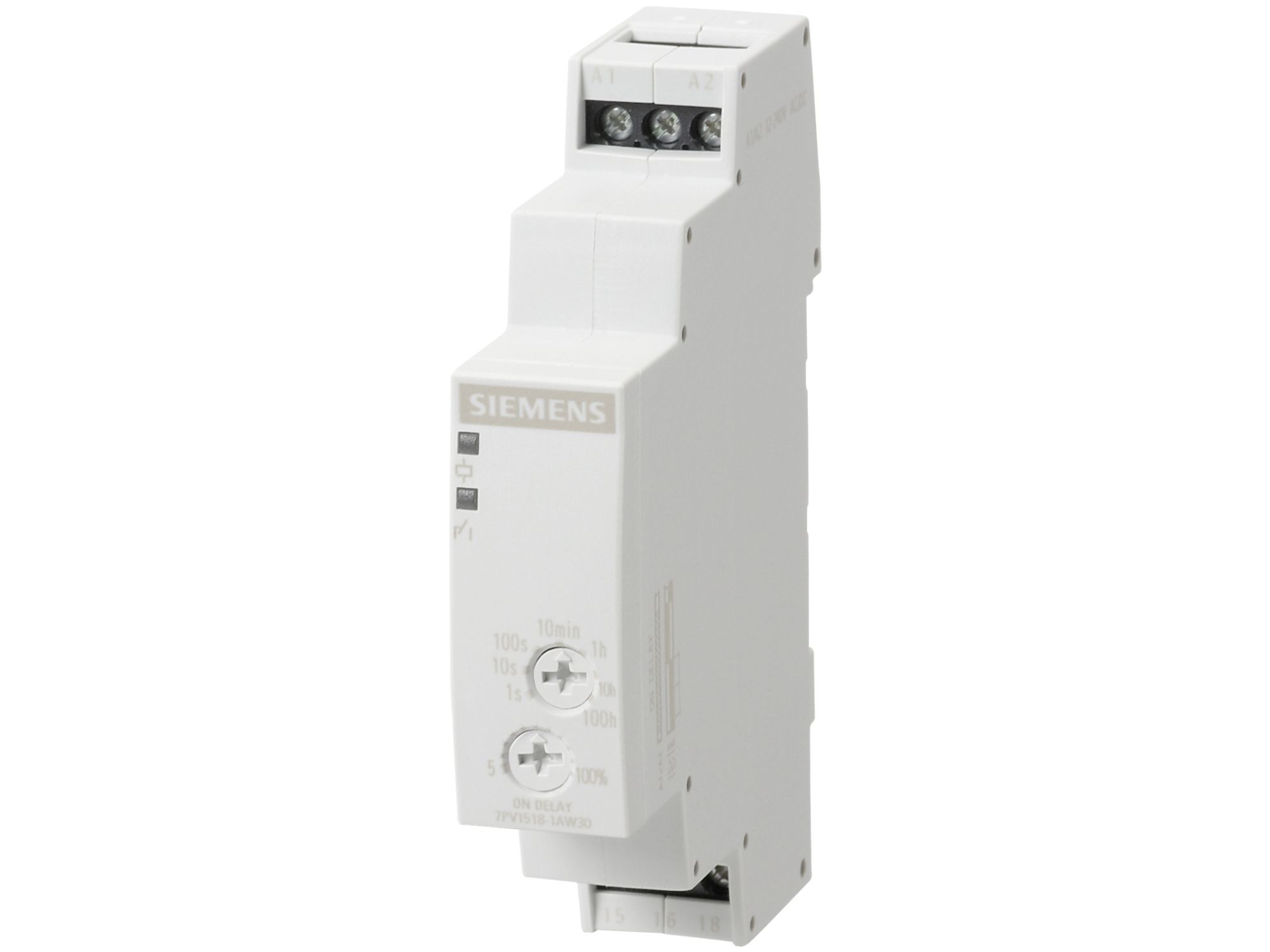

Siemens 7PV1518-1AW30, 21 mm, 94 mm, 83 mm, 64 g

Varenr.: [4657836] | Producent: Siemens | Model-nr.: 7PV15181AW30 | EAN: 4011209777279 | UNSPSC.: 39122329
Fjernlager (14-21 hverdage)
Varen er på fjernlager, leveringstiden er 14-21 hverdage. Mere info
Leveringsmuligheder  - Vælges ved checkout
Instabox - Pakkeboks
39,00
GLS - Pakkeshop
39,00
DAO - Hjemmelevering om natten og i de tidlige morgentimer
Perfekt til arbejdsdage - Levering inden kl. 06:00 - Klar når du vågner
45,00
GLS - Levering til hoveddøren
59,00
Afhentning i vores Pick-up point i Ringsted
19,00
Vis alle leveringsmuligheder (5)
DKK 490,00
ex. moms 392,00
Total inkl. fragt 529,00
Læs yderligere specifikationer og beskrivelse

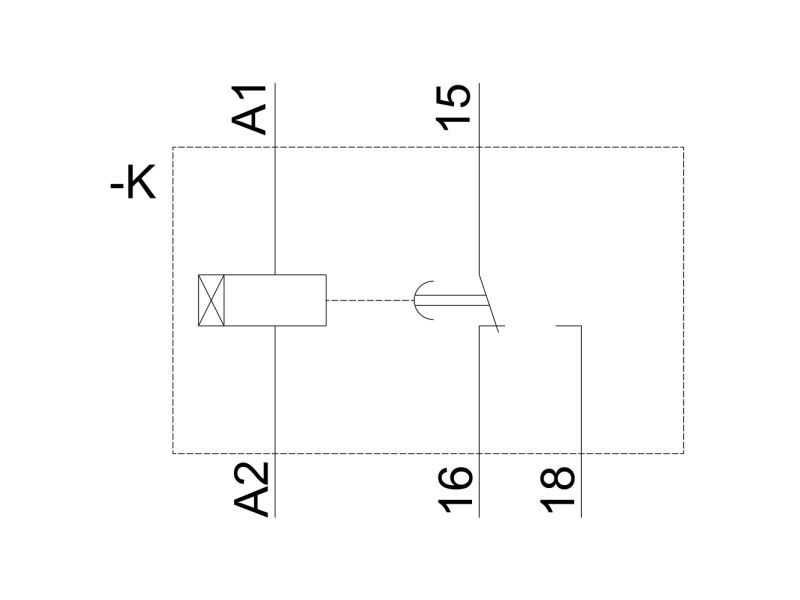

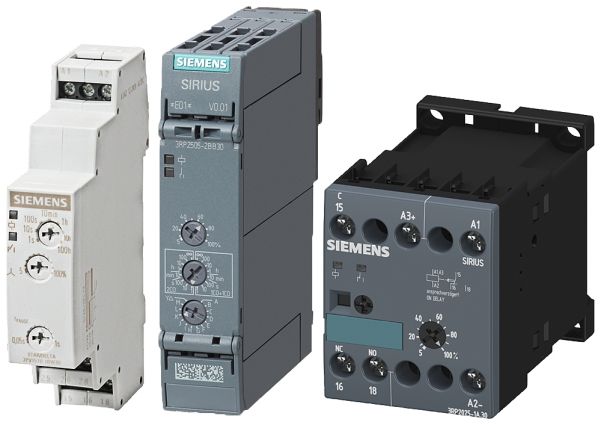

Timing relay, electronic ON delay 1 change-over contact, 7 time ranges 0.05 s...100 h 12-240 V AC/DC wide voltage range Screw terminal timing relay SIRIUS 7PV15, slow-operating, for various switching operations involving time delays in control, starting, protection and regulation circuits, e.g. for cascaded motor startup. Can be used in the control cabinet or distribution board. Wide range of applications due to variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages. The 7PV time relays are available as single or multifunctional time relays. Alternatively, 3RP time relays are available in an industrial design as single or multifunctional time relays with semi-conductor output or as electromechanical relays with or without positively driven operation, with various connection technologies in each case. SIRIUS relays - one range for every application.
