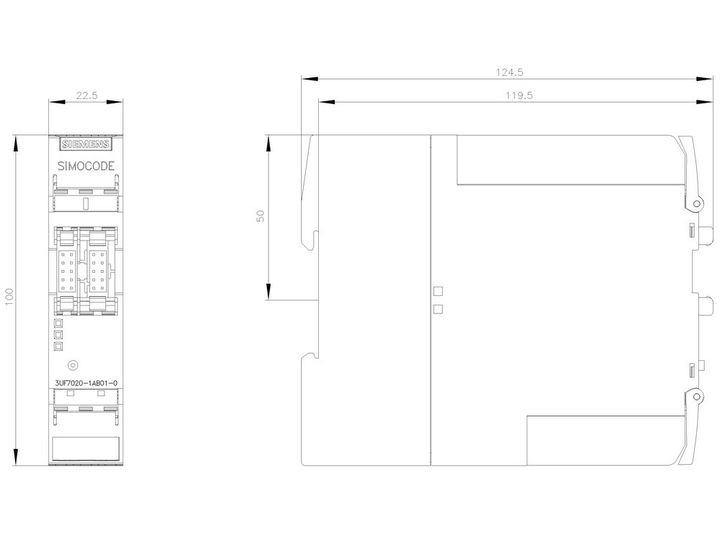

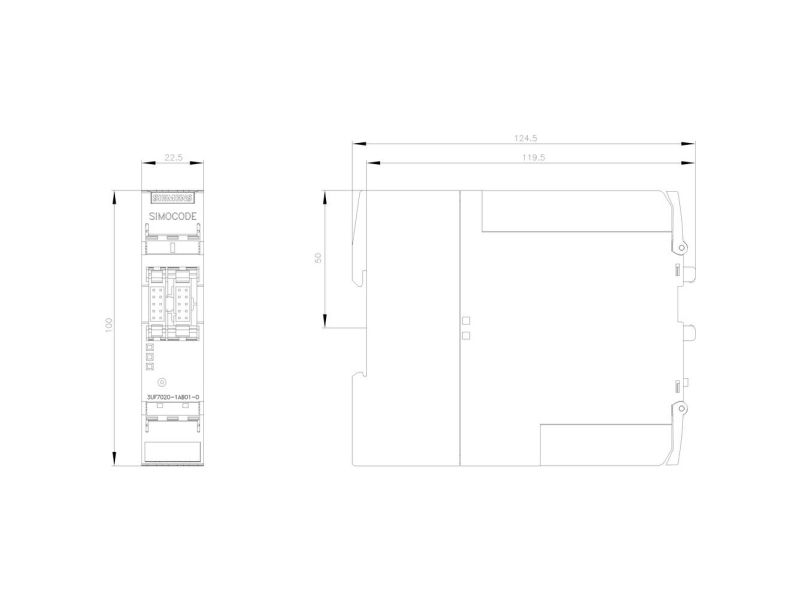

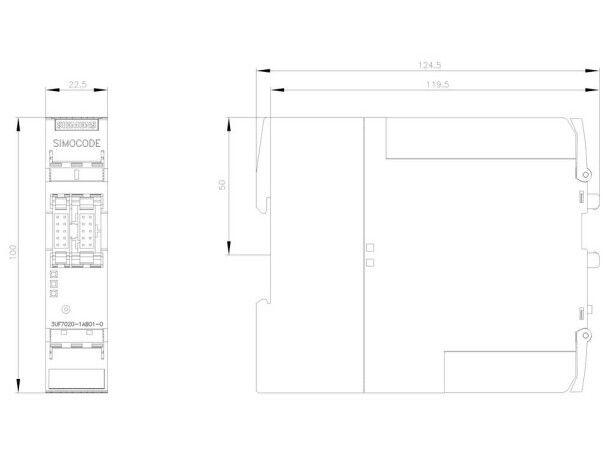

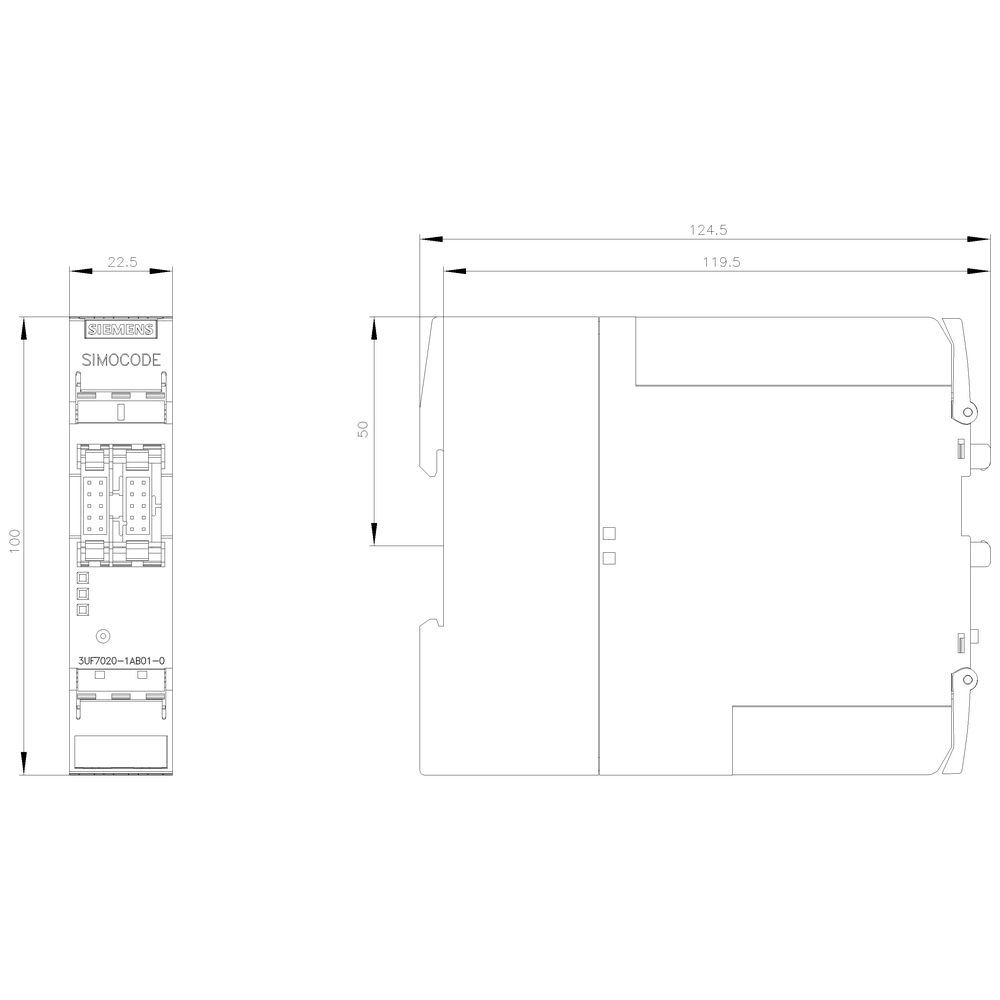

Siemens 3UF7020-1AB01-0, 36 mm, 109 mm, 152 mm, 237 g, 1 stk

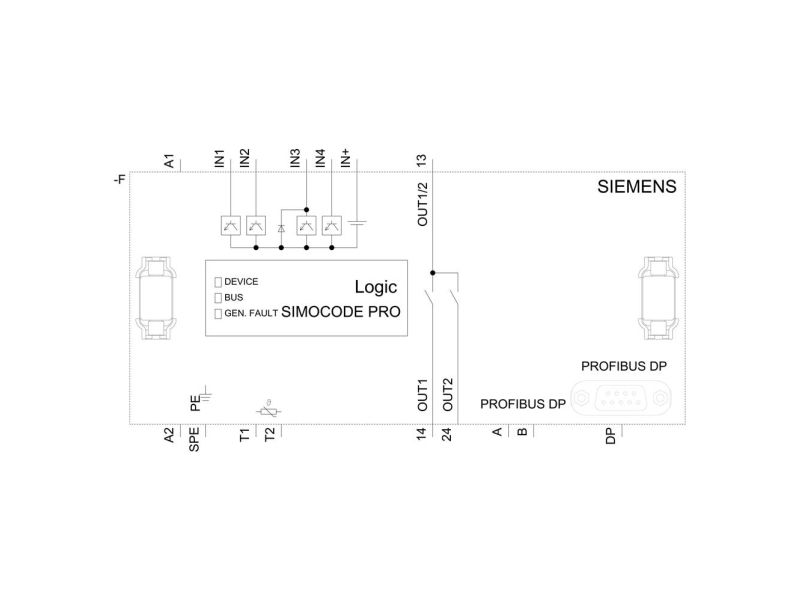

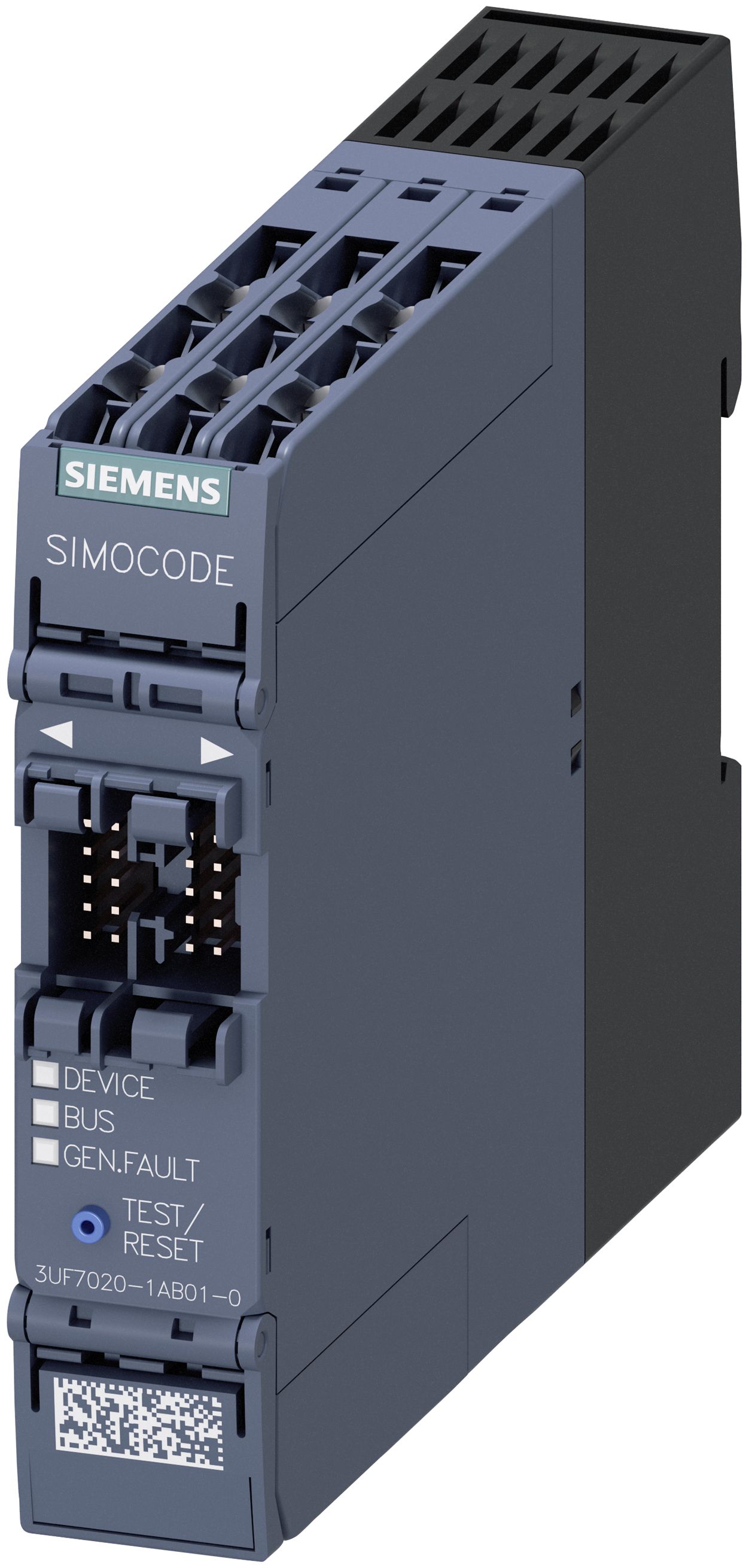

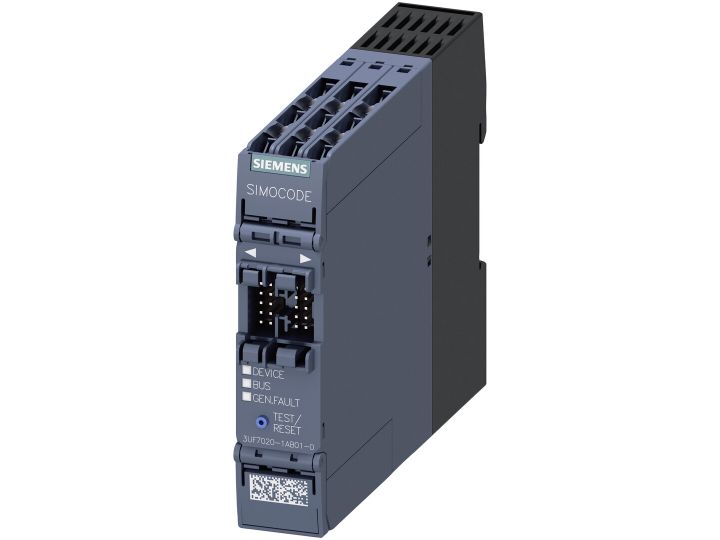

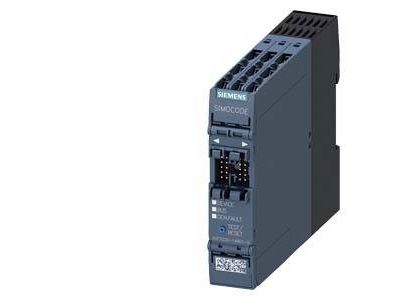

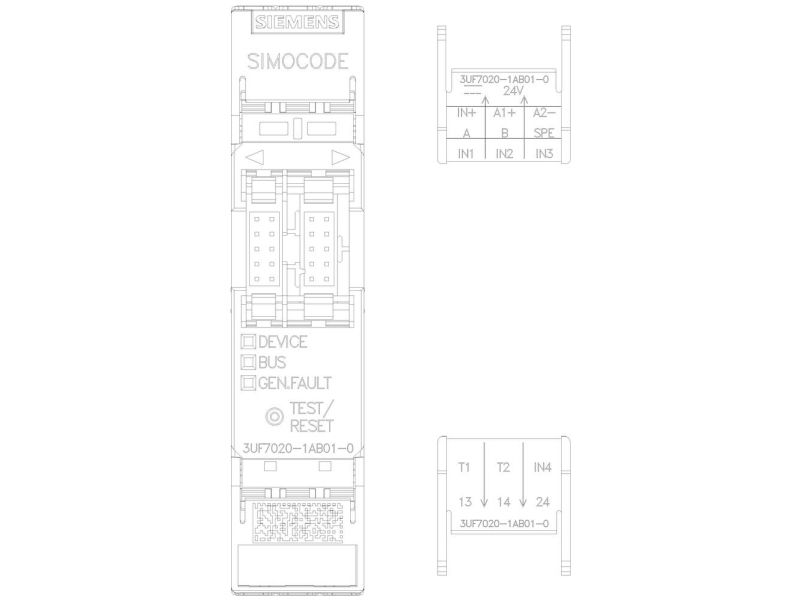

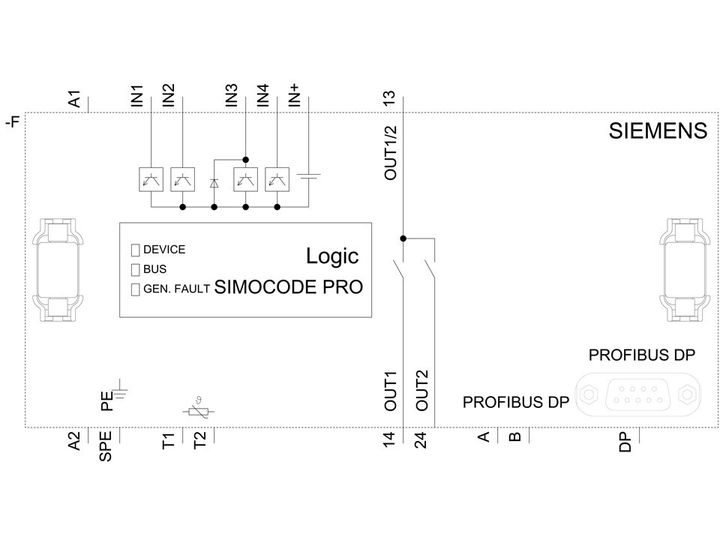

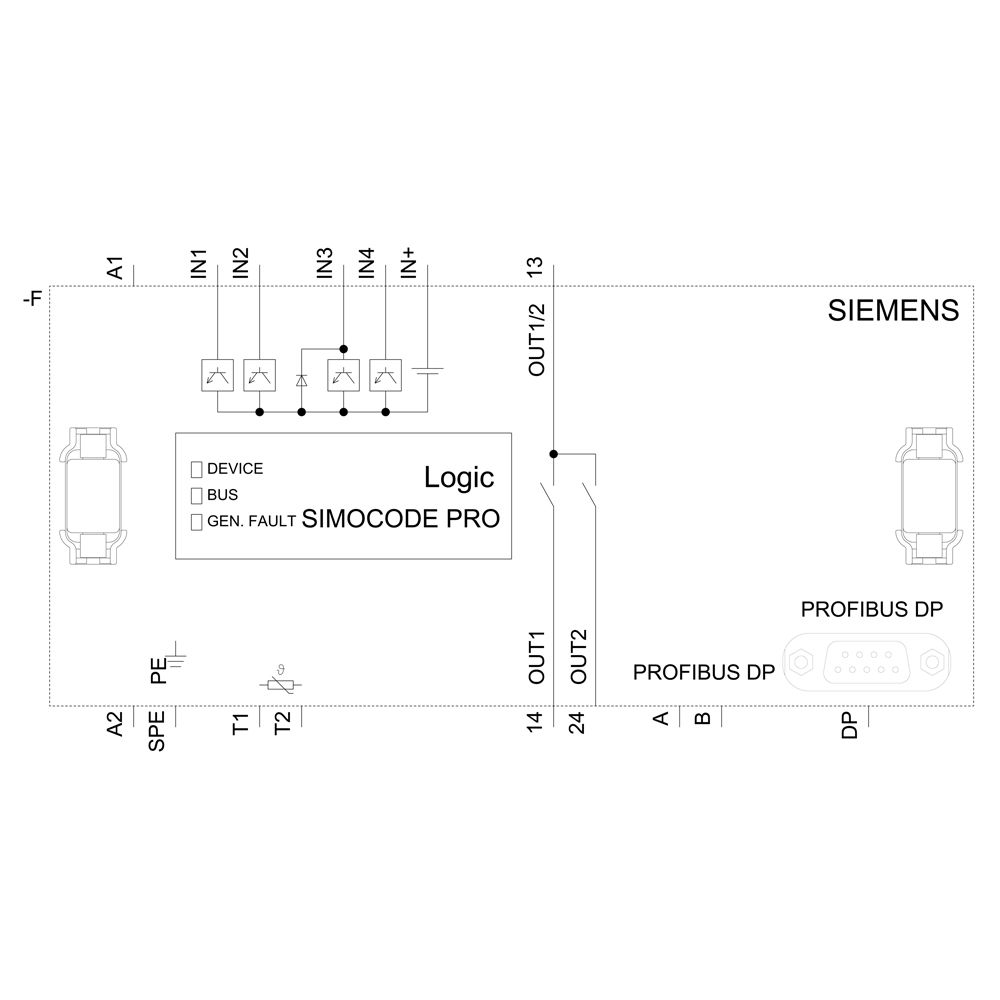

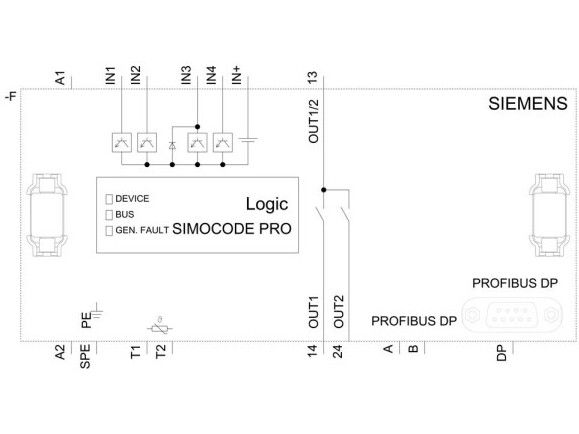

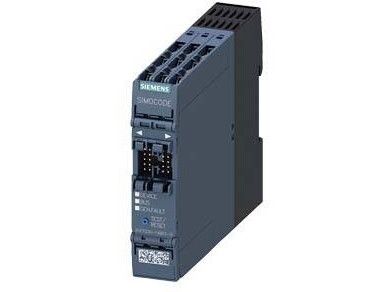

basic device SIMOCODE pro S, PROFIBUS DP interface 1.5 Mbps, 4 I/2 O freely configurable, Us: 24 V DC, input for thermistor connection monostable relay outputs, expandable by a multifunction module Motor management system SIMOCODE pro S for extensive protection, monitoring and control functions for asynchronous motors and detailed operating, service and diagnostics data for process control systems and control systems using the most common fieldbus systems. The smart and compact motor management system with PROFIBUS DP interface for direct-on-line, reversing, or star-delta (wye-delta) starters, or for controlling a motor starter protector or soft starter, functions independently of the automation system. Its expandability with a multifunction module provides an extensive range of inputs/outputs, precise ground-fault detection via the 3UL23 residual-current transformers and temperature measurement. The system supplies detailed operational, service and diagnostics data - at any time or place. Worldwide approvals (e.g. IEC and UL/CSA), also for applications in hazardous areas (ATEX or IEC Ex) are available. Deployment with IE3/IE4 motors is supported. The SIMOCODE ES (TIA Portal) software is available for the configuration, commissioning, operation and diagnostics of SIMOCODE pro. The SIMOCODE pro block library for SIMATIC PCS 7 is used for the simple integration of SIMOCODE pro into the SIMATIC PCS 7 process control system. The SIMOCODE pro S basic units are available with 24 V DC or 110-240 V AC/DC control supply voltage. Operation requires at least one current measuring module and a matching 3UF793 connecting cable. These, an optional operator panel, as well as a multifunction module are available separately. Take a step into the future with SIMOCODE.
