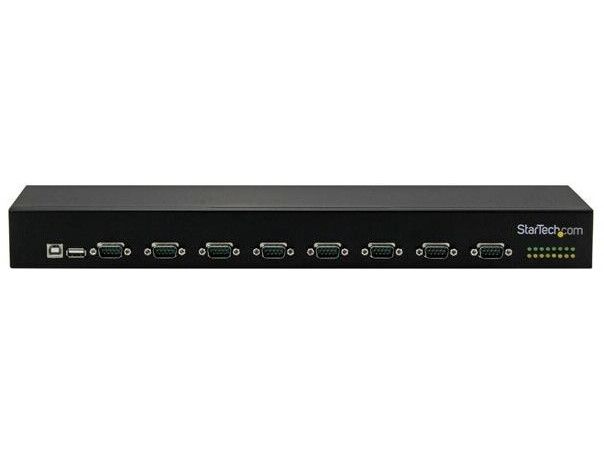

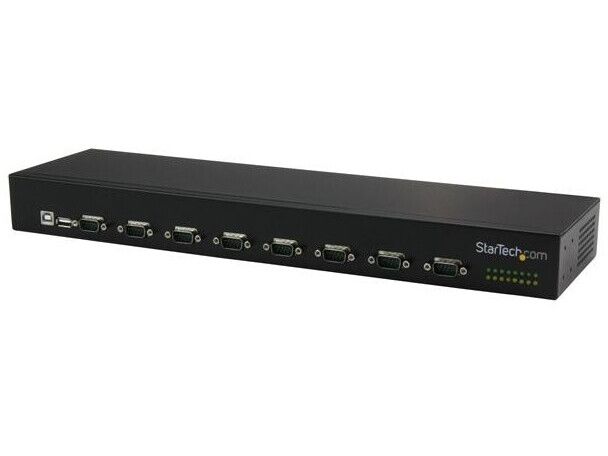

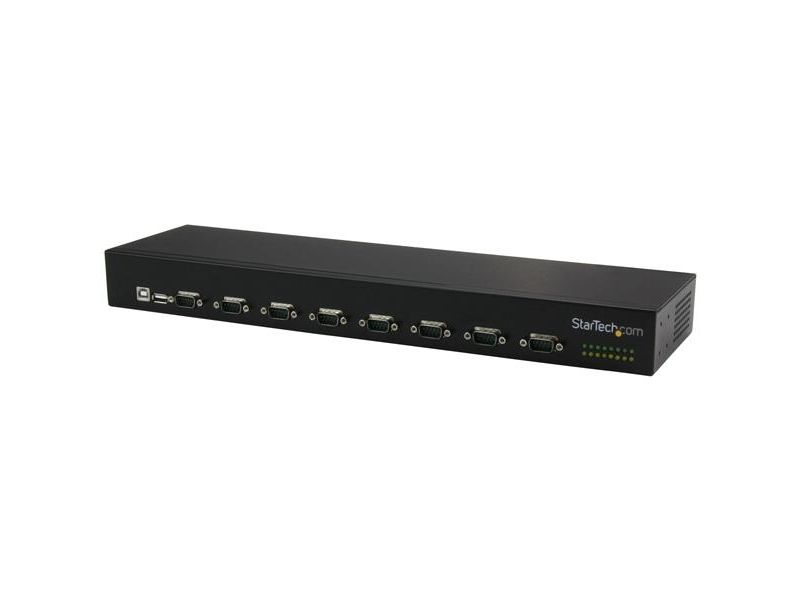

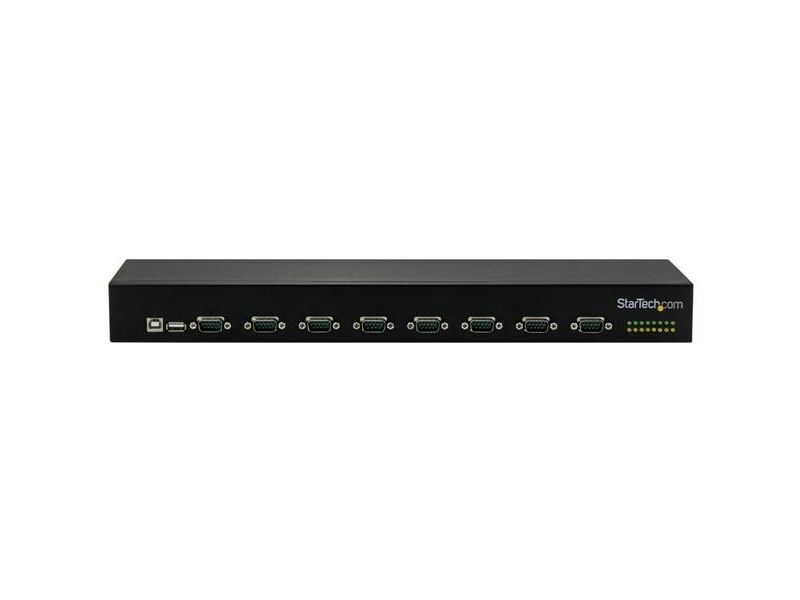

Convert a single USB port into eight serial ports, and connect multiple hubs together for a scalable solution
This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.
A scalable solution for changing needs
This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub.
Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.
Built-in convenience
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.
The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.
Meets the demands of industrial environments
With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.
The ICUSB23208FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Produktbeskrivelse
Startech USB to Serial Hub - 8 Port - COM Port Retention - Rack Mount and Daisy Chainable - FTDI USB to RS232 Hub (ICUSB23208FD) - seriel adapter - USB 2.0 - RS-232 x 8
Enhedstype
Seriel adapter
Model
Ekstern
Grænseflade (bus) type
USB 2.0
Porte
RS-232 x 8
Dimensioner (B x D x H)
12 cm x 43 cm x 4.5 cm
Vægt
1.4 kg
Dataforbindelsesprotokol
RS-232
Farve
Sort
Effekt
AC 120/230 V
Systemkrav
Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Linux 2.4.x eller nyere, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, kun Linux LTS-versioner, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0
Producentgaranti
2 års garanti
Generelt
Enhedstype
Seriel adapter
Model
Ekstern
Grænseflade (bus) type
USB 2.0
Netværk
Porte
RS-232 x 8
Forbindelsesteknologi
Kablet
Dataforbindelsesprotokol
RS-232
Statusindikatorer
Status
Ekspansion / Konnektivitet
Interface
8 x RS-232 - 9 pin D-Sub (DB-9) (han) 1 x USB - 4 pin USB Type B
Diverse

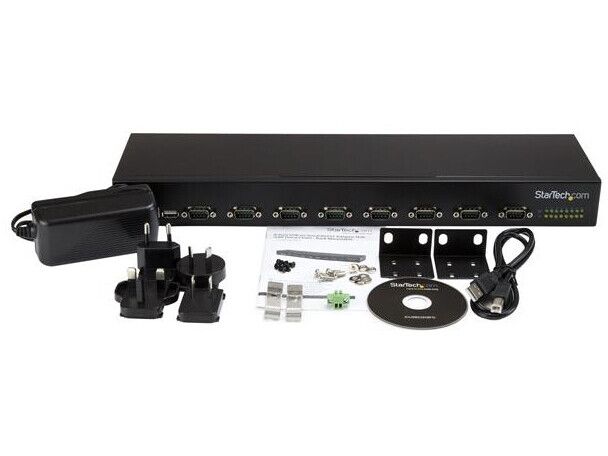

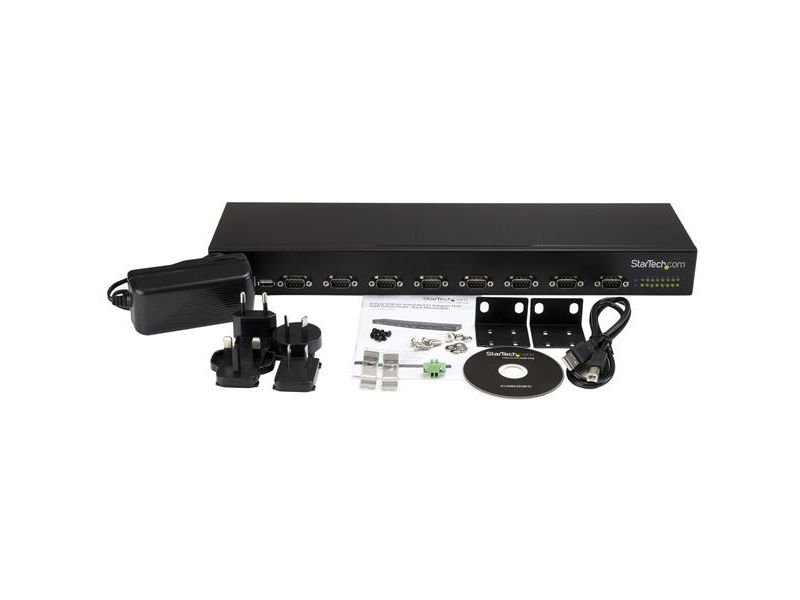

Udstyr inkluderet
2 stativmonteringsbøjler, 4 x møtrikker, stativmonteringsskruer, DIN-skinnemonteringsskruer, 2 DIN skinnemonteringsbøjler, 4 spændeskiver, terminalblokprop, strømadapter
Medfølgende ledninger
1 x USB-kabel (ekstern) - 90 cm
Overensstemmelsesstandarder
FCC, RoHS
Farve
Sort
Effekt
Nødvendig spænding
AC 120/230 V
Strømforbrug ved drift
36 watt
Programmer / Systemkrav
Med software
Drivers & Utilities
OS nødvendig
Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Linux 2.4.x eller nyere, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, kun Linux LTS-versioner, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0
Mål og vægt
Bredde
12 cm
Dybde
43 cm
Højde
4.5 cm
Vægt
1.4 kg
Producentgaranti
Service & Support
Begrænset garanti - 2 år
Miljømæssige parametre
Min. driftstemperatur
-40 °C
Maks. driftstemperatur
85 °C
Fugtighedsgrad ved brug
20 - 80 % (ikke-kondenserende)
